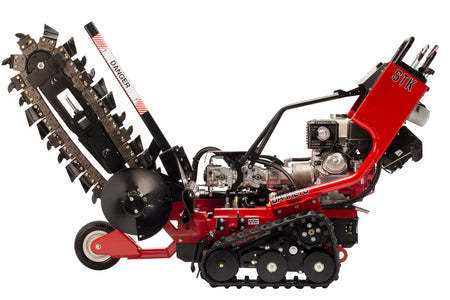

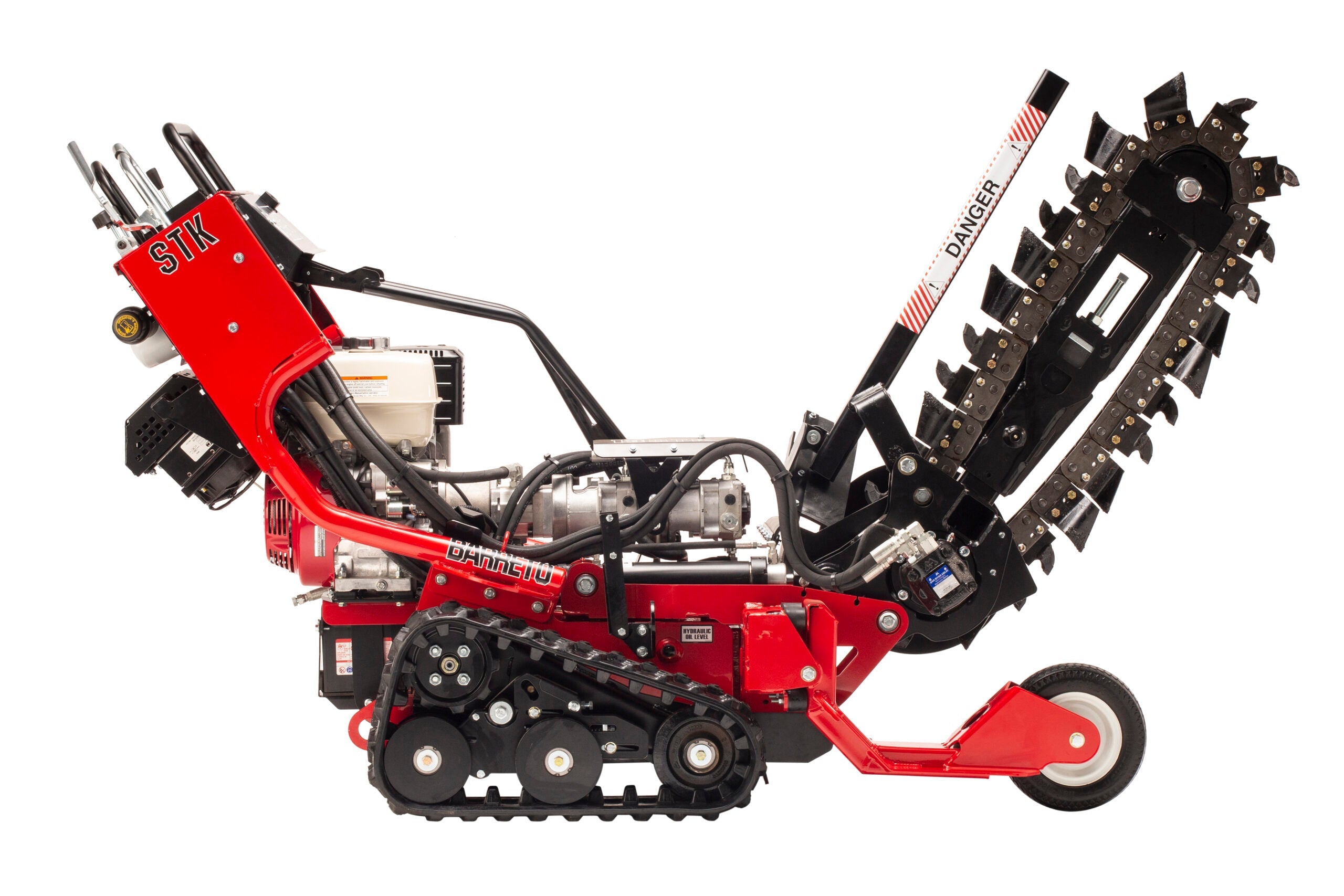

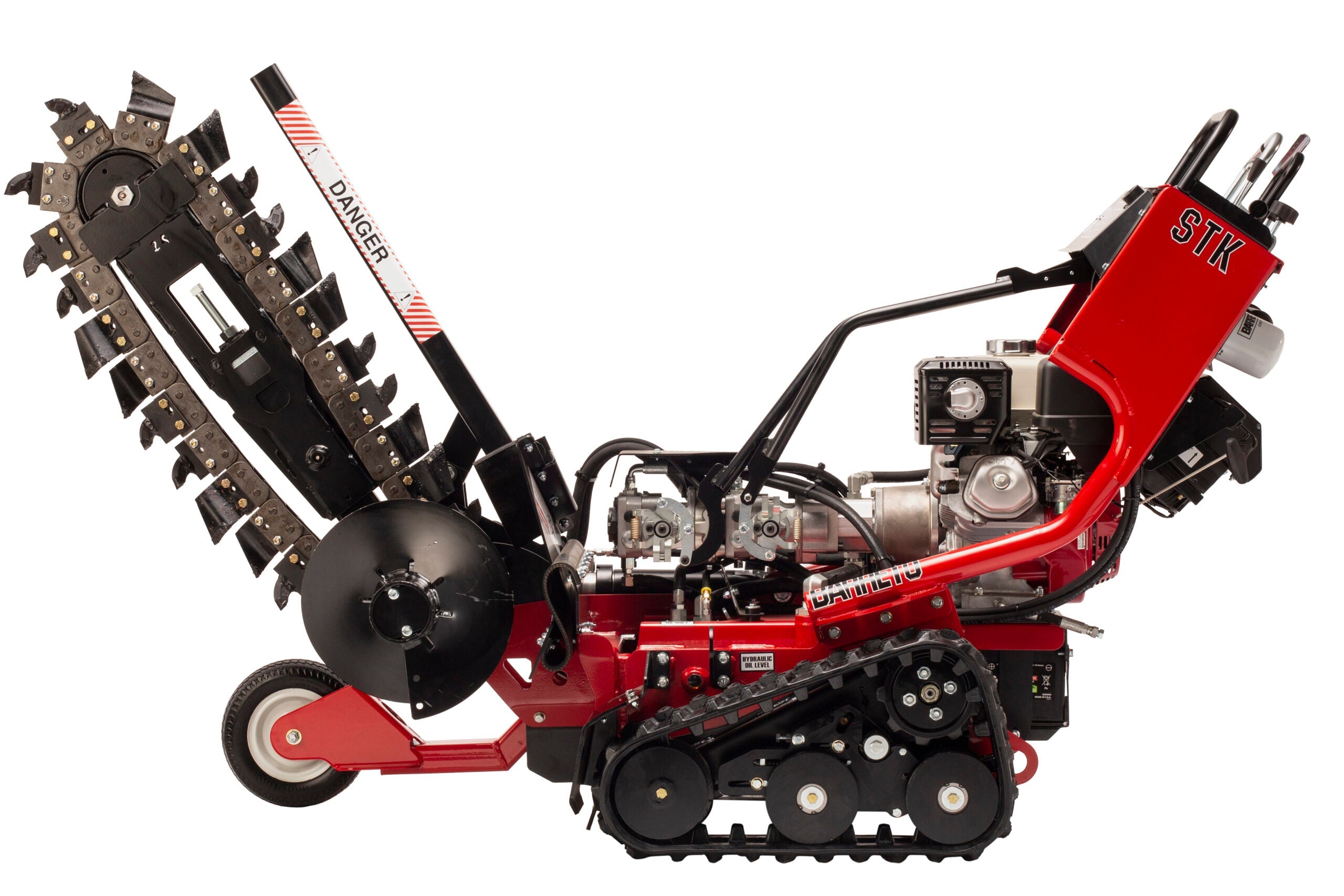

Barreto 1624STK - 16 HP STK TRACK TRENCHER
WHY BARRETO?
DESIGN

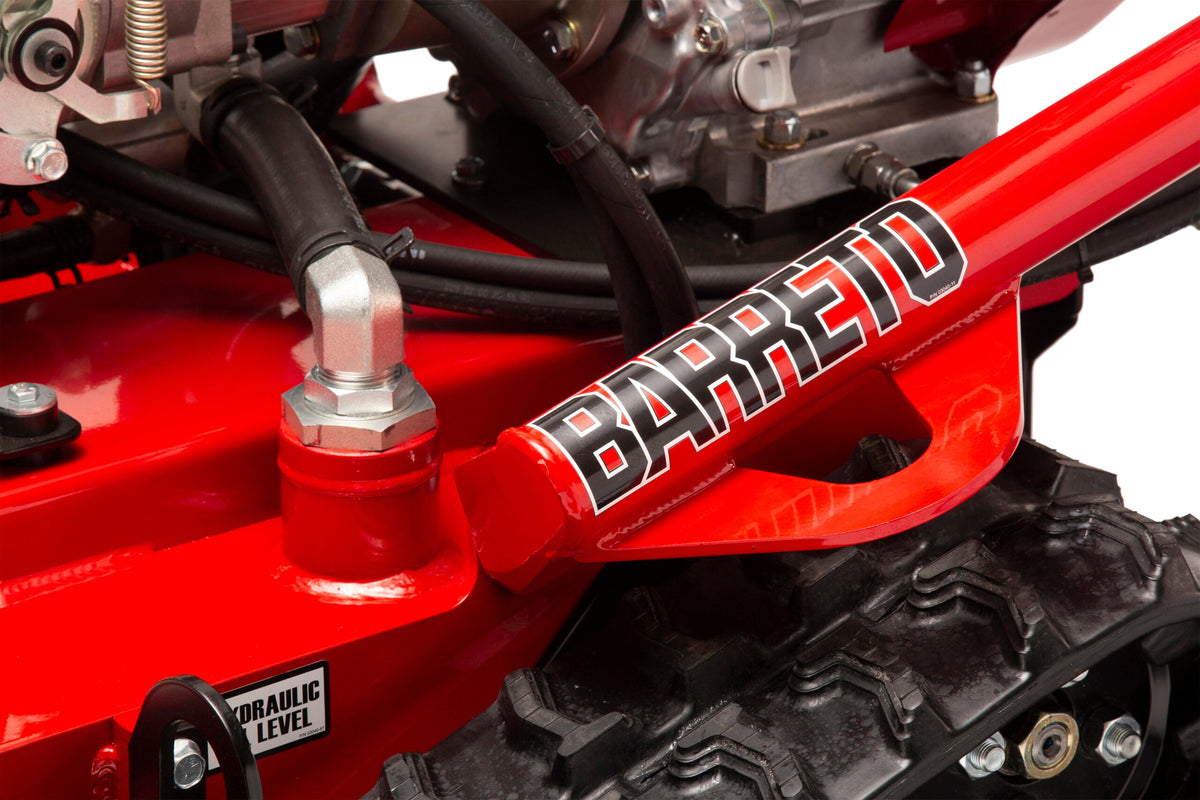

With its compact size and weight of 1,085 pounds, the STK track trencher has the same key features as our larger track trenchers. The innovative new track system and compact frame design provide both stability and maneuverability. A hydraulic cooler with incorporated fan keeps the oil temperatures regulated. Electric start is standard on all models. Efficient and functional, the STK is the perfect addition to any trencher fleet.

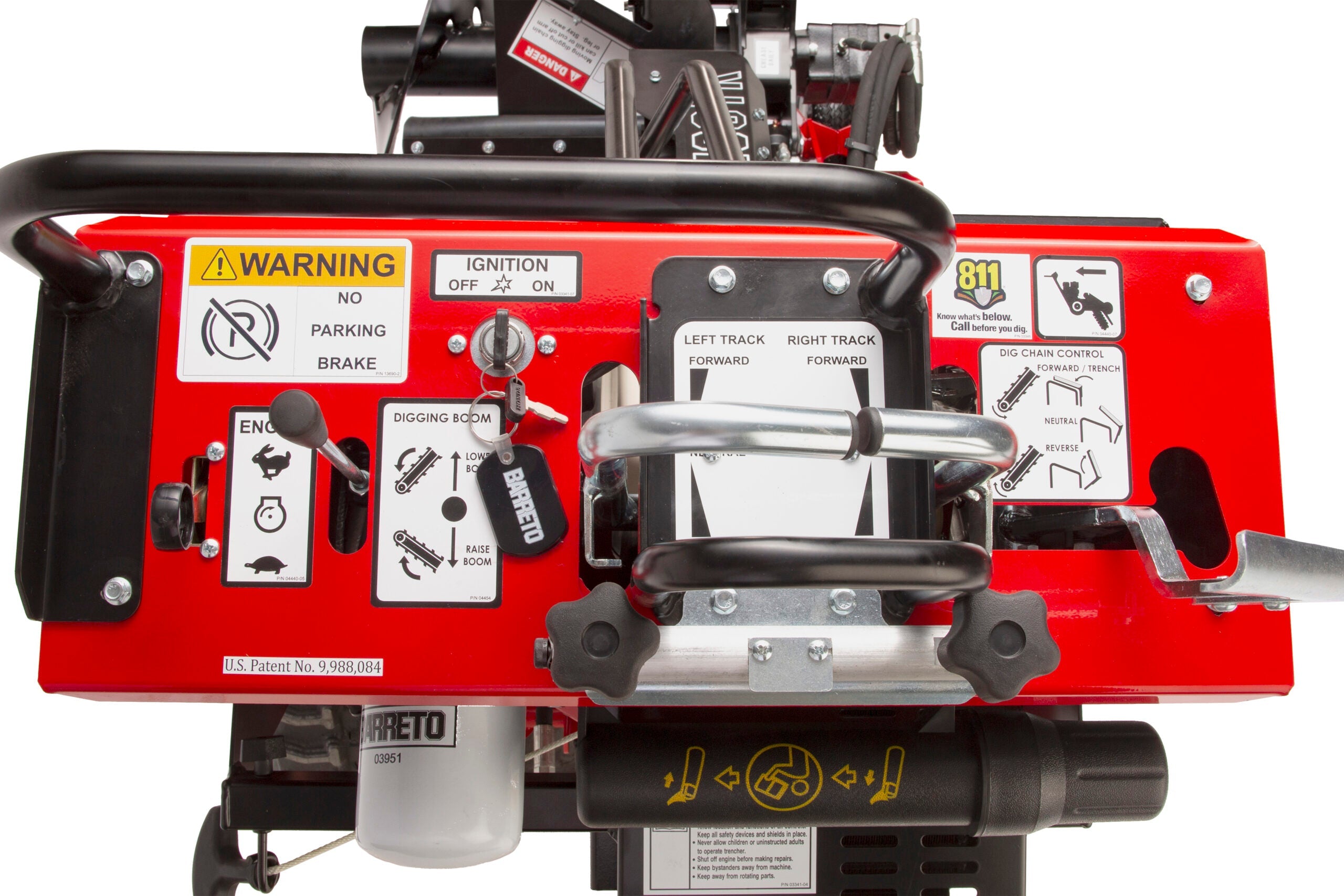

CONTROLS

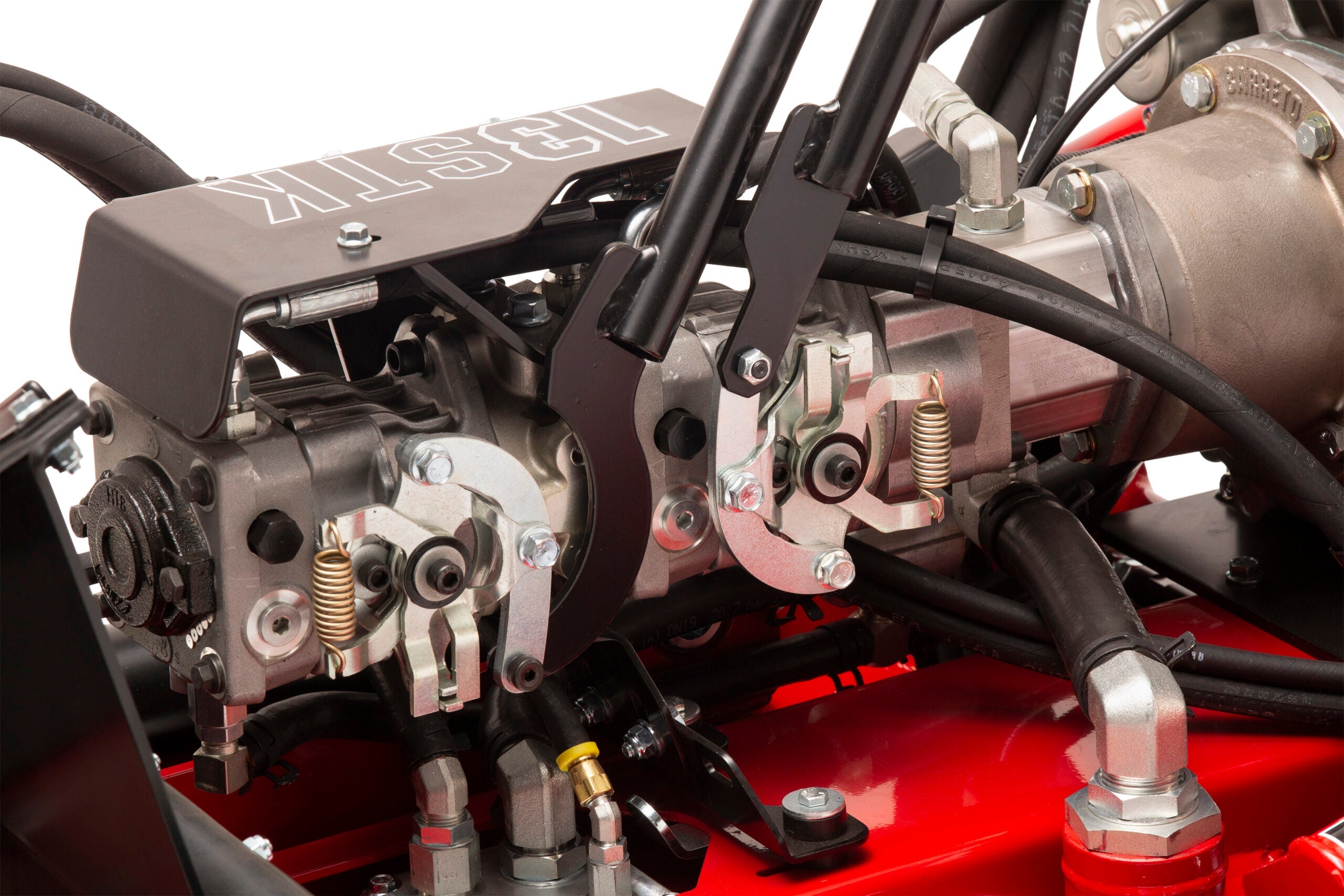

The STK features our Adjustable Trenching Controls (ATC) that use rod linkage instead of cables. The ATC can be positioned to modify the trenching speed of the tracks individually while on the go. By utilizing the individual track controls, the operator has the ability to keep their trench straight when working on uneven terrain.
ROI
In keeping with the Barreto standard, the STK trencher is low maintenance and reliable in the most difficult conditions. The effortless steering, tracks, and size of this trencher make the operator’s job simple and keeps customer satisfaction high. Components are protected yet easily accessed and maintenance costs are minimal.

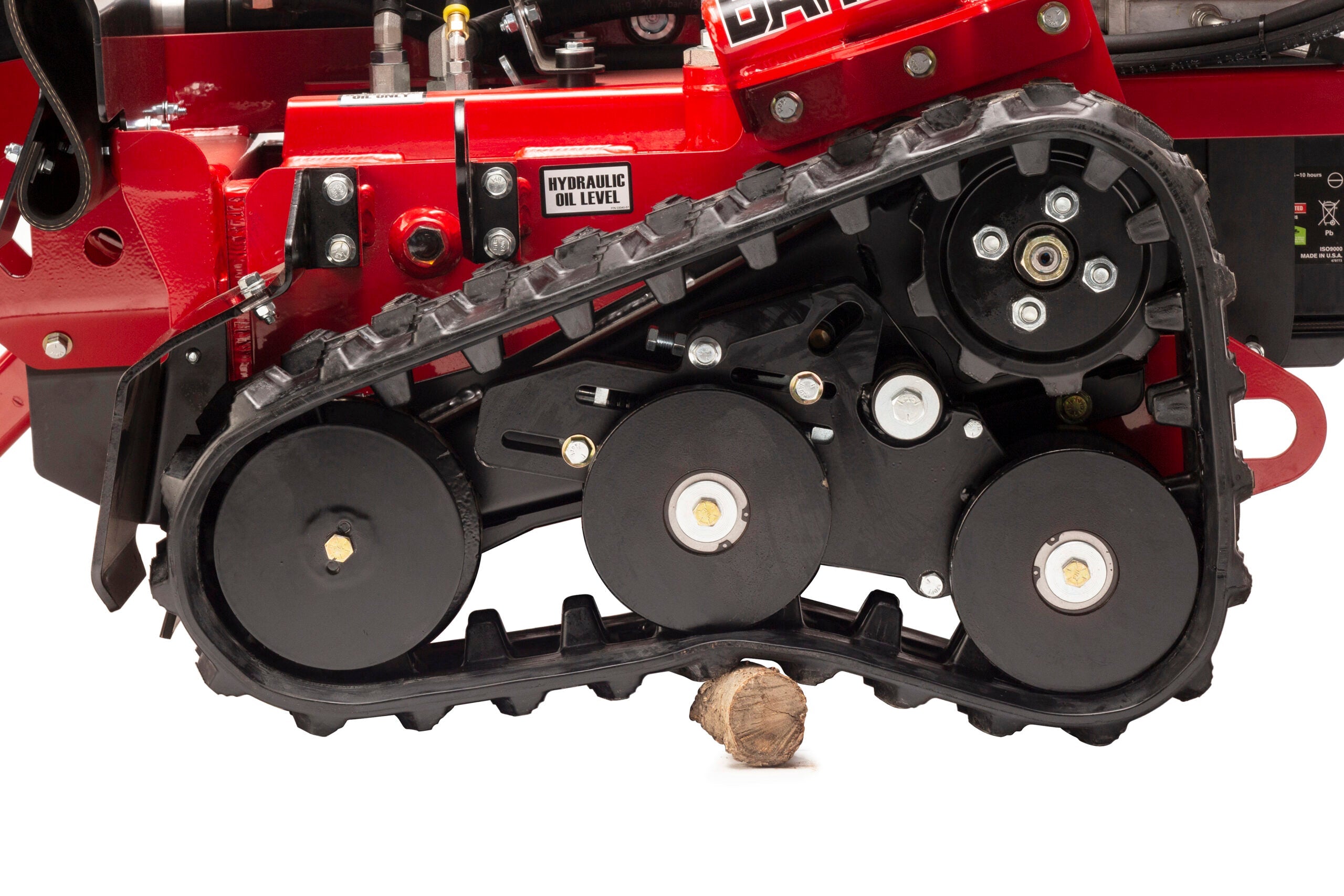

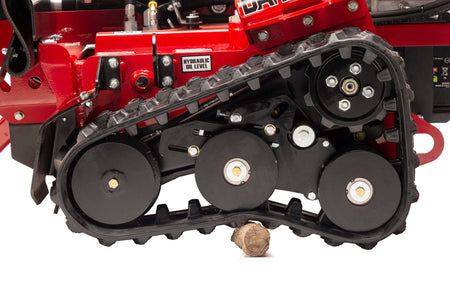

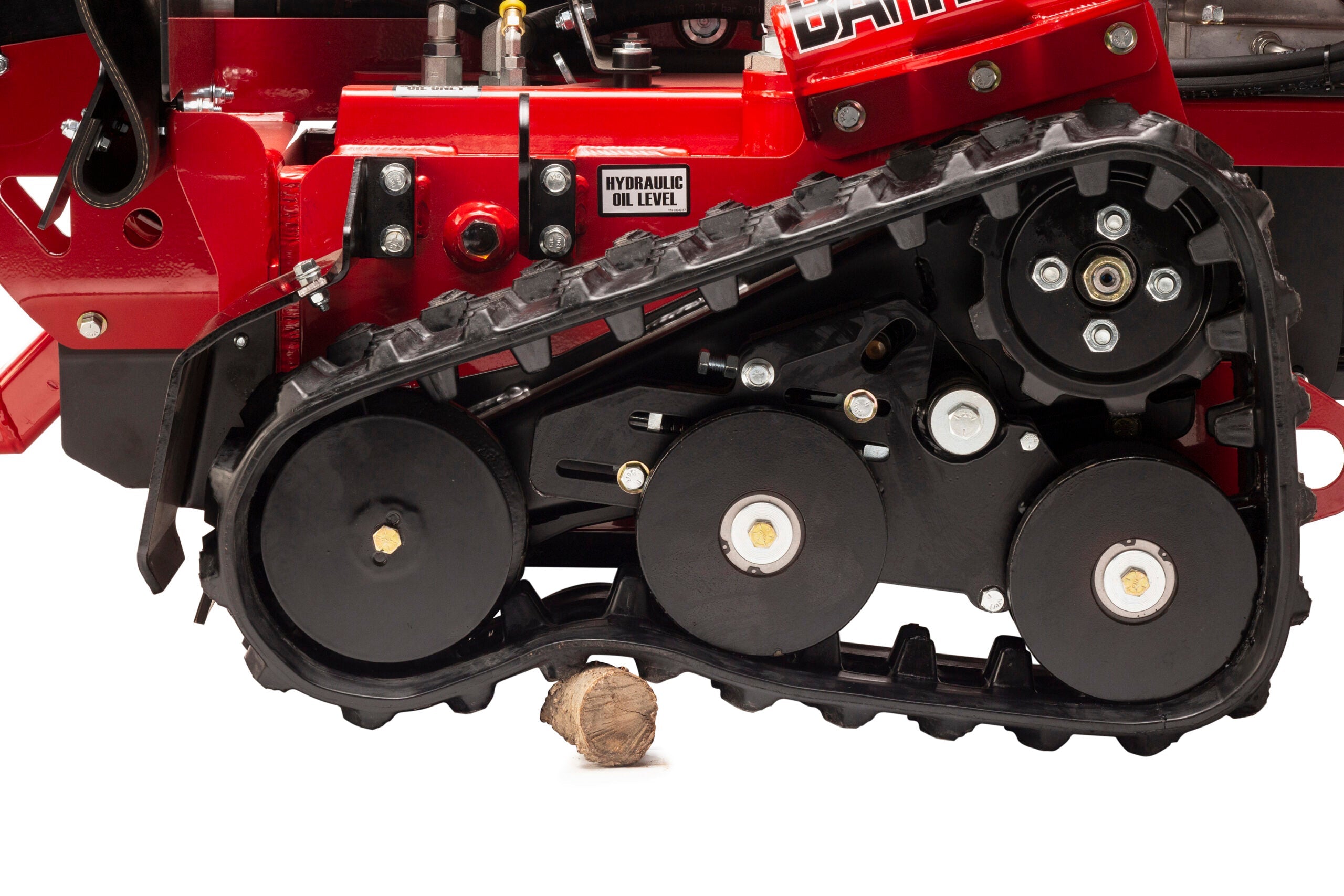

INDEPENDENT FLOATING TRACK SYSTEM
The independent floating track system utilizes independent undercarriage idlers that move in response to the terrain. This design keeps a significant portion of the track in contact with the terrain at all times, reducing ground pressure and increasing traction. The movement of the middle and rear idlers act as suspension and smooth the overall movement of the trencher. This provides for a more fluid operation than the traditional track trenchers when working in rough and uneven conditions.
U.S. Patent No. 9,988,084
FEATURES
- Boom tension can be easily adjusted when needed

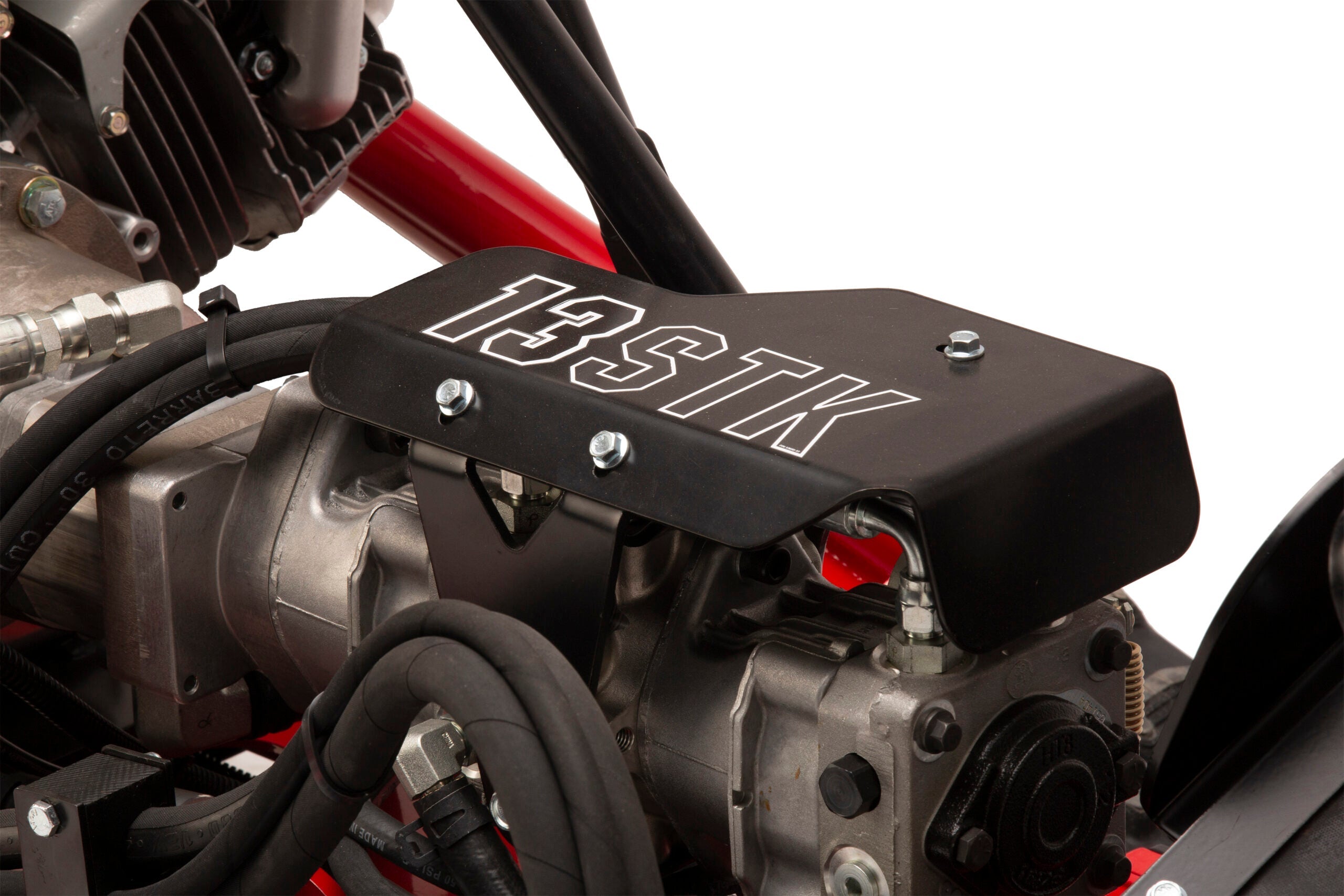

- Quick access to all of the hydraulics for easy maintenance and repair
- Adjustable Trenching Controls (ATC) use rod linkage instead of cables
- Independent floating track system adapts to terrain
- Standard electric start on all models
SPECIFICATIONS
ENGINE:
16STKB: Briggs & Stratton Vanguard V-Twin 16hp
DETAILS:
Weight: 1,085 lbs.
Height: 52.5″
Length: 84″
Width: 33.25″
Track Width: 7.12″
Total Ground Contact: 262 sq. in.
Hydraulic Reservoir: 8.13 gallons
Ground Drive Forward: 210 ft/min
Ground Drive Reverse: 100 ft/min
Digging Chain Speed: 260 ft/min
Boom Depth Options: 24 or 30″
Chain Width Options: 4 or 6″
