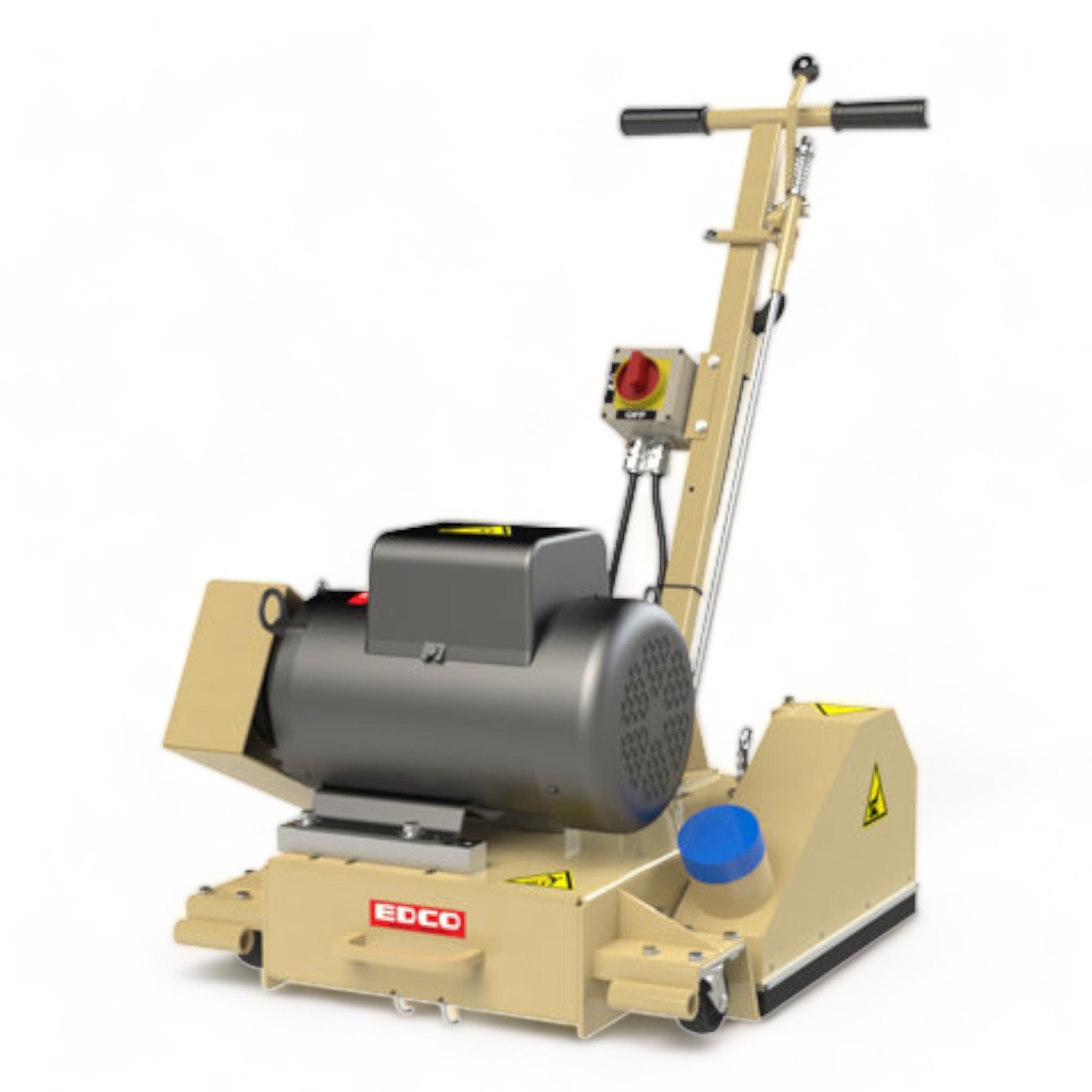

EDCO C10E Inch 5HP Electric Crack Chasing Saw

The EDCO C10E Inch 5HP Electric Crack Chasing Saw is a premier tool recognized and relied upon by concrete repair specialists, slab maintenance teams, and flooring professionals. Its advanced engineering, versatile features, and OSHA-ready dust control make it the gold standard for precise crack chasing, routing, and joint cleaning in both residential and commercial applications.

Overview and Engineered Performance

The EDCO C10E is a robust, electric-powered crack chasing saw designed specifically for restoring concrete slabs, garage floors, warehouse aisles, and parking decks. Its powerful 5HP electric motor in either single-phase or three-phase configuration delivers a reliable and emission-free performance on indoor job sites where gasoline engines are impractical or prohibited.

Key Benefits

• Maximum Cutting Depth: Up to 1 inch with precise depth control.

• Opens up to 1/2” Wide: Engineered for cleaning and routing out cracks so repairs last longer and accept more fill material.

• Caster Wheel System: Unique caster wheels allow smooth guidance through both straight lines and random crack patterns, supporting seamless operation over irregular surfaces.

• Precision Control: Combination depth adjustment knob and engage/disengage lever give operators granular control for exact cutting jobs.

• Dust Control Ready: Comes standard with dual 3” vacuum ports, allowing connection to industrial vacuums for virtually dust-free operation—meeting the latest silica dust regulations.

• Heavy-Duty Design: Constructed for daily use on demanding worksites, the C10E resists vibration and promotes straight, clean cuts with every pass.

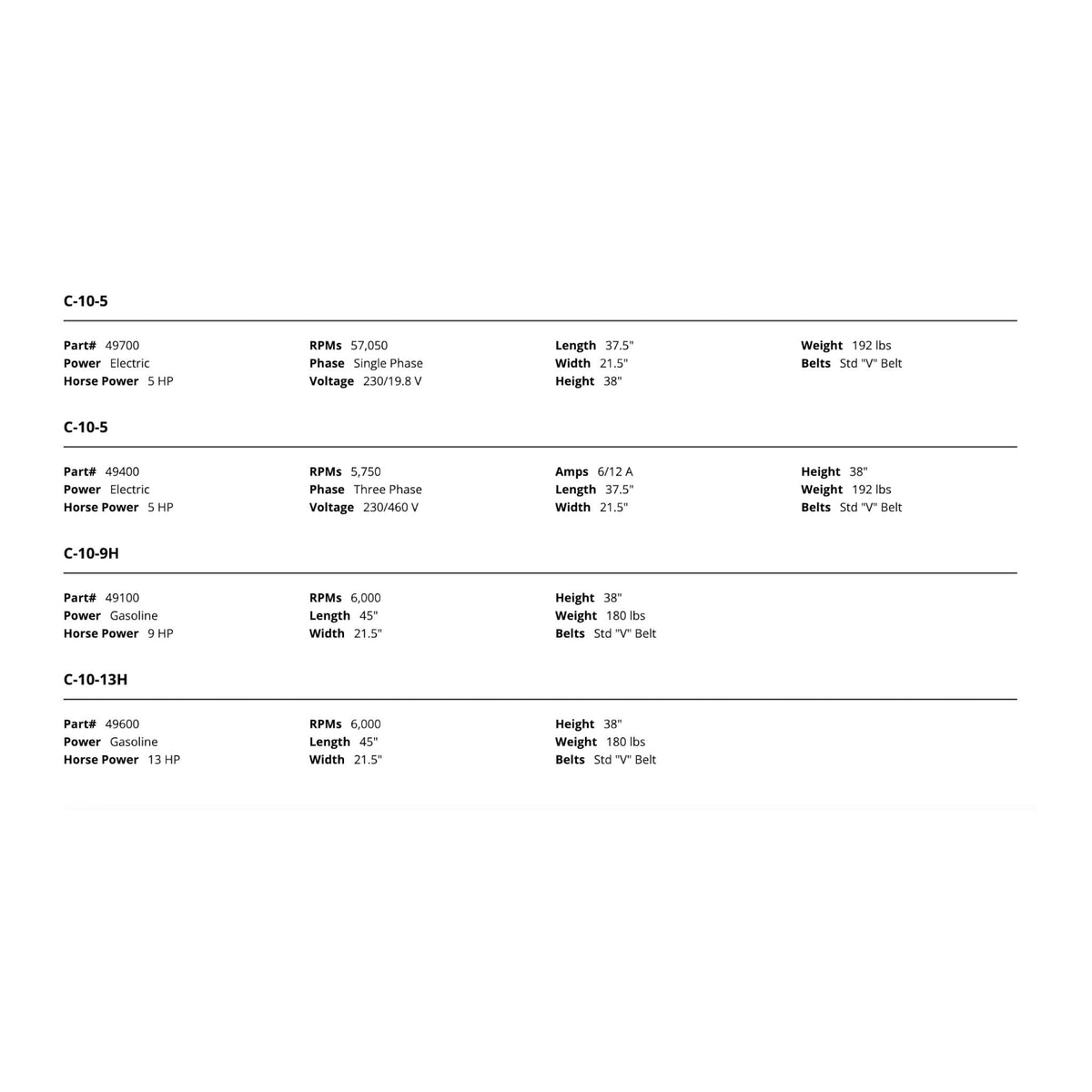

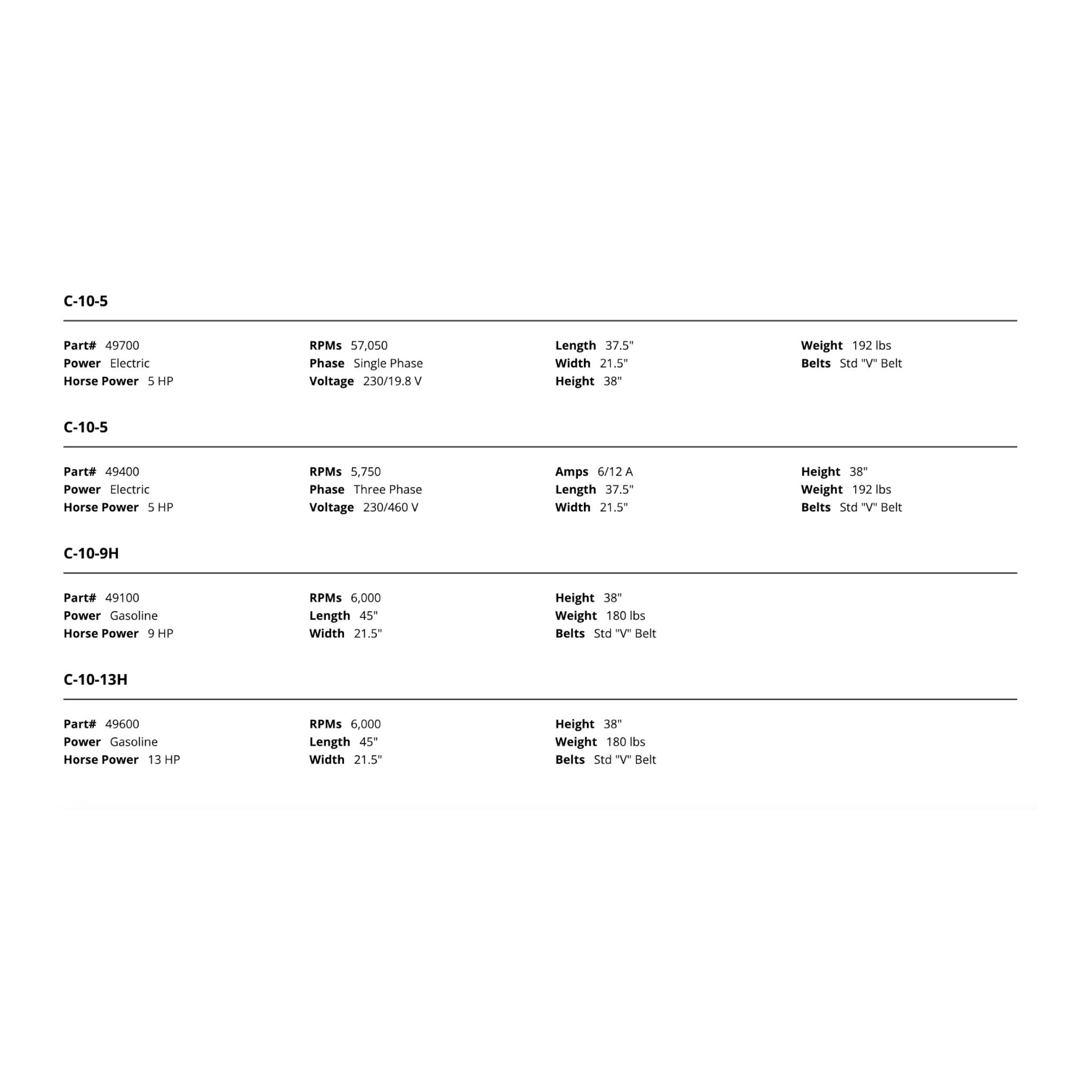

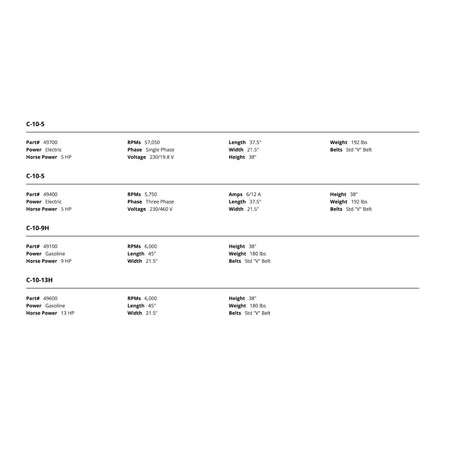

Technical Specifications

Features & Advantages

Follow Any Crack Pattern

The C10E’s three-caster design enables operators to precisely trace and open up cracks, even on erratic, curved, or non-linear paths. The machine rides easily over surfaces, ensuring that repair material penetrates deep into the cleaned-out cracks for superior, long-lasting results.

Exact Depth and Width Control

The dual-function control knob and lever allow users to set and maintain an exact cutting depth with ease—even as the blade wears. Routine adjustments are fast, supporting consistency on prolonged or multi-phase jobs.

Reliable Dust Management

Dust suppression is built in: two large vacuum ports permit connection to commercial dust collection systems, helping users comply with OSHA silica standards for safe workspaces. This reduces clean-up time and protects both crews and building occupants.

Versatility

• Blades: Compatible with 7”, 8”, and 10” diamond blades for a range of routing, chasing, and joint cleaning applications. Use 8” for general crack chasing; use 10” for wider or deeper joint cleaning.

• Optional Straight Wheel Kit: Accessory kit allows for straight line saw-cutting and expansion joint cleaning, using an 8” wire wheel for excellent versatility.

Operator Safety and Comfort

• Overload protection and accurate control levers safeguard the user and the tool.

• The spring-loaded lifting handle makes raising or lowering the blade quick and safe.

Typical Applications

• Concrete Crack Routing & Repair: Preps cracks so repair mortars and epoxies properly bond, increasing longevity.

• Joint Cleaning and Filling: Opens joints for expansion-contraction movement or for re-caulking and backer rod installation.

• Residential/Commercial Maintenance: Ideal for parking decks, sidewalks, garage floors, warehouse aisles, and industrial slabs.

Maintenance Best Practices

• Daily Care: Clean dust and debris from the blade guard, vacuum ports, and drive system at the end of each shift.

• Bearings: Lubricate arbor shaft bearings after each use with heavy duty ball bearing grease; check for wear and replace as needed.

• Blade Inspection: Frequently check for segment loss, cracks, or excessive wear. Avoid cutting with a damaged or dull blade.

• Belt Tension: Inspect belt tension after the first hour and then daily; adjust to allow for half-inch deflection under moderate finger pressure.

• Air Filter/Cooling: Clear any accumulated dust to prevent motor overheating. Follow motor manufacturer guidance for detailed service.

• Overall Safety: Empty dust bags, check for loose hardware, and wash the saw after each use to prevent buildup in linkages.

Operator Tips

• For best performance, avoid more than 3/4” depth per pass to prevent blade overheating.

• Run the motor at the correct RPM for blade longevity and dust suppression.

• Match the blade rotation direction to the “downcut” configuration for safe, efficient operation.

• Use a vacuum with >200 CFM for optimal silica dust collection.

• Store all tools clean, dry, and with the blade removed during longer breaks or seasonal downtime.

Frequently Asked Questions

Q: What is the max crack width and depth for the C10E?
A: Opens cracks up to 1/2" wide and 1" deep (using the proper diamond blade).

Q: Can the machine be used for straight cuts as well as random patterns?
A: Yes, with the optional straight wheel kit, the C10E can make straight expansion joints or clean existing joints as well as follow random crack paths.

Q: Is dust control effective?
A: Yes. Dual 3" vac ports accept a high-CFM vacuum, essential for OSHA compliance and operator safety.

Q: Can I use different blade sizes?
A: Yes, 7", 8", and 10" diamond blades are compatible for various types of crack chasing or joint cleaning.

Conclusion

The EDCO C10E Inch 5HP Electric Crack Chasing Saw provides unmatched reliability, precision, and safety in crack chasing and joint repair. Its powerful electric engine, intuitive controls, rugged build, and best-in-class dust control make it the ultimate tool for professional surface repairs. For crews seeking OSHA-compliant, efficient, and long-lasting concrete solutions, the C10E is the top choice for durability and results.
