EDCO CPM8 8 Inch Gas/Propane Walk-Behind Crete-Planer

The EDCO CPM8 8 Inch Gas/Propane Walk-Behind Crete-Planer is purpose-built to deliver aggressive, precise concrete and asphalt surface preparation for professionals who demand speed, reliability, and versatility. Renowned for its ability to level, mill, texture, groove, and repair surfaces, this scarifier is the go-to choice for contractors, municipalities, and maintenance teams seeking quality results on sidewalks, driveways, parking decks, and more.

Product Overview

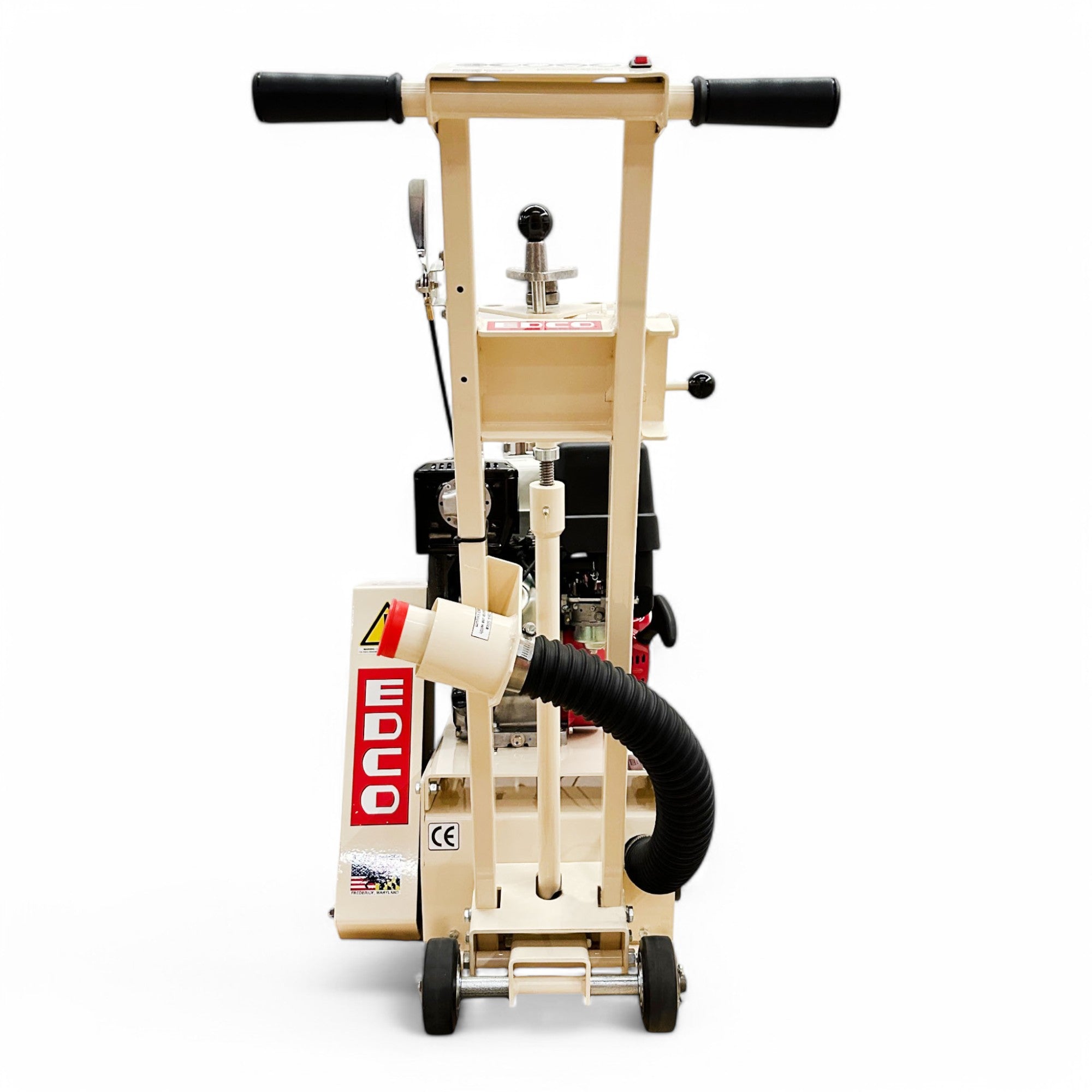

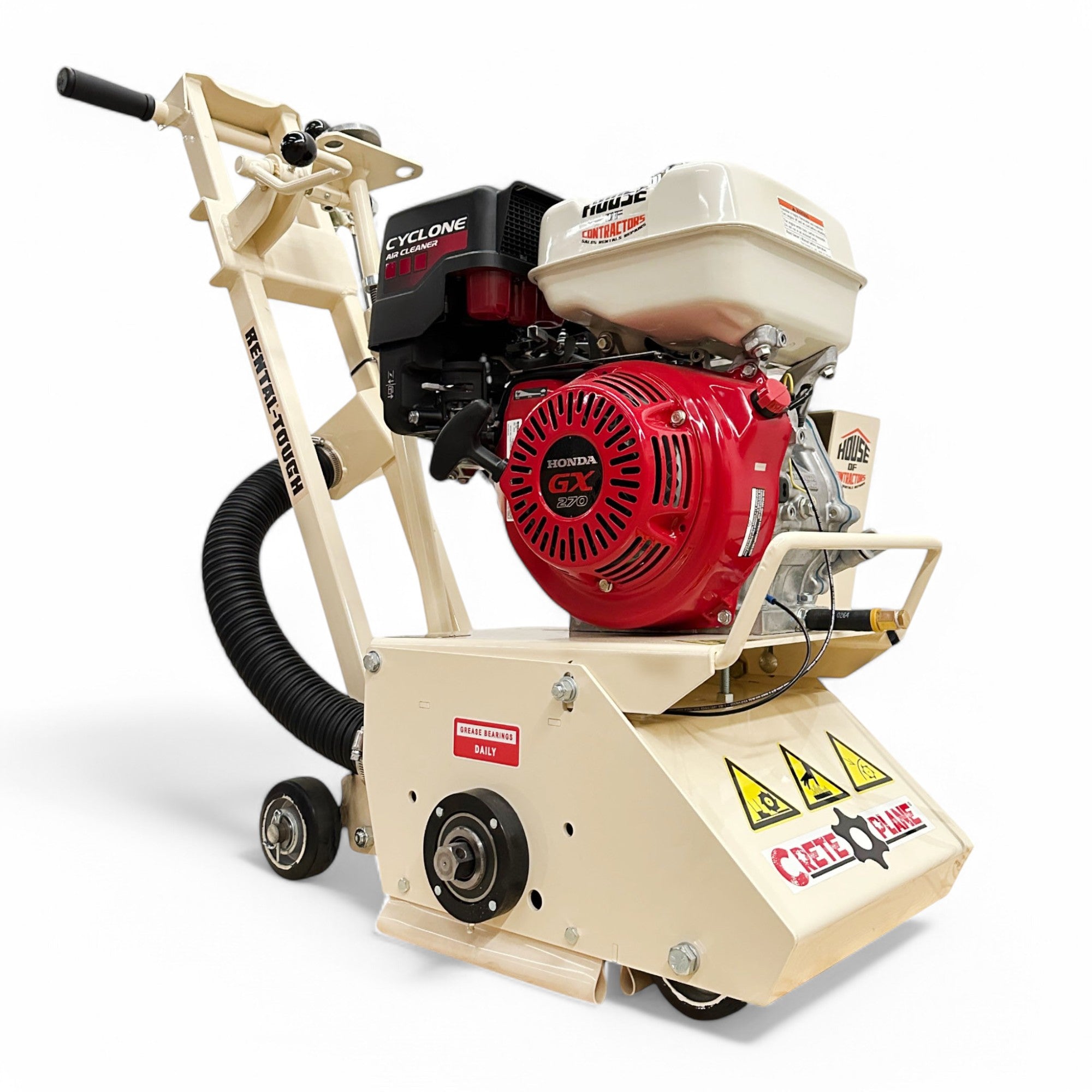

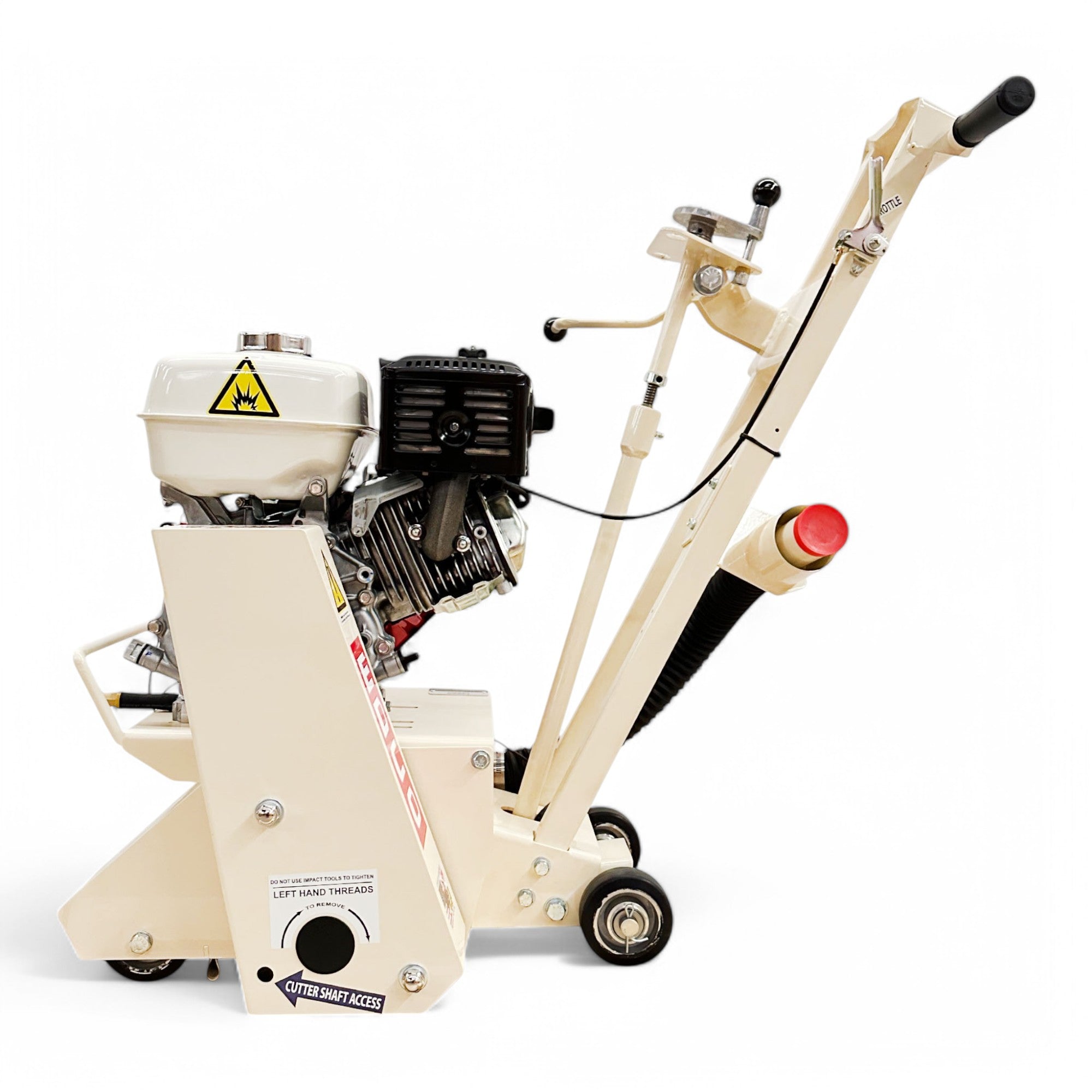

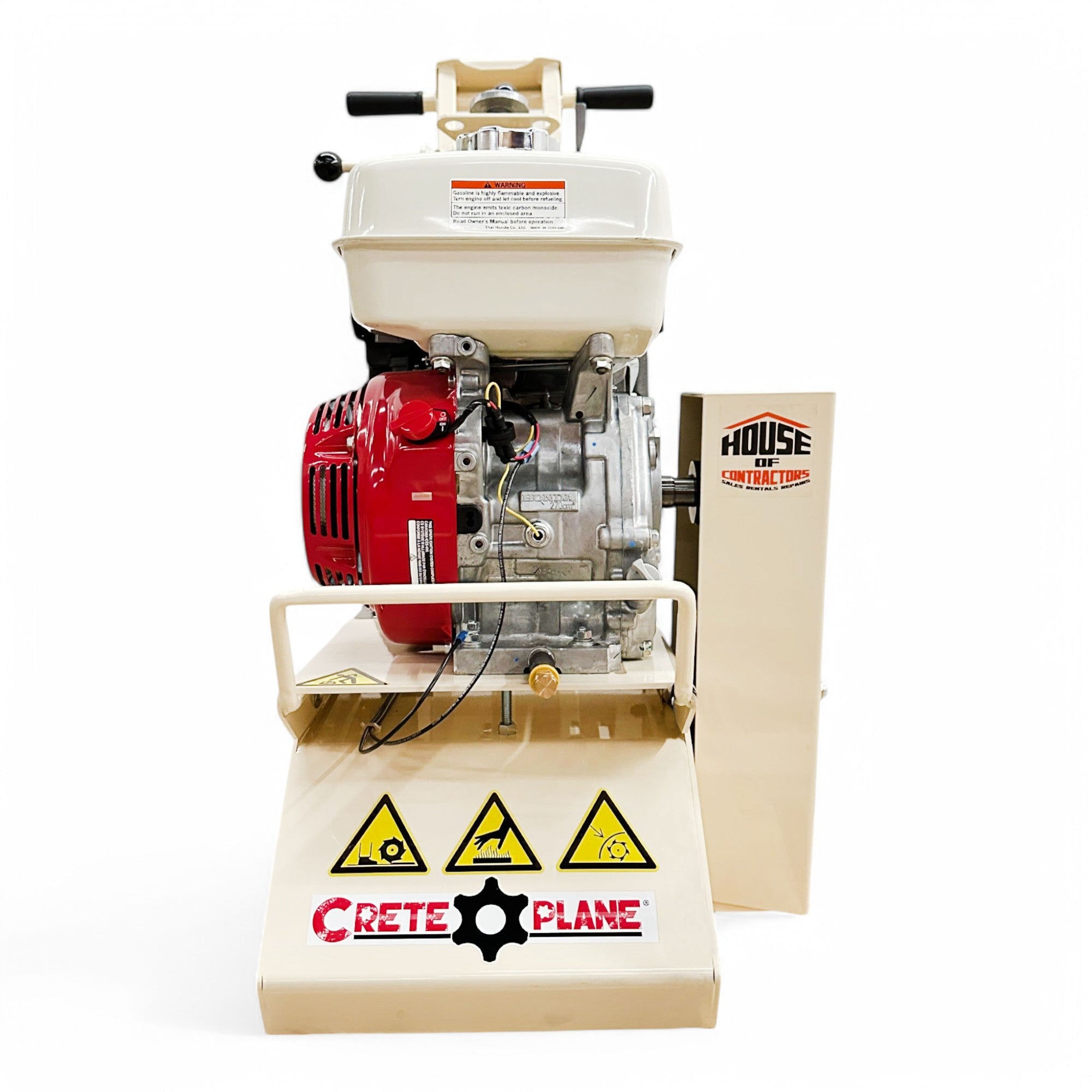

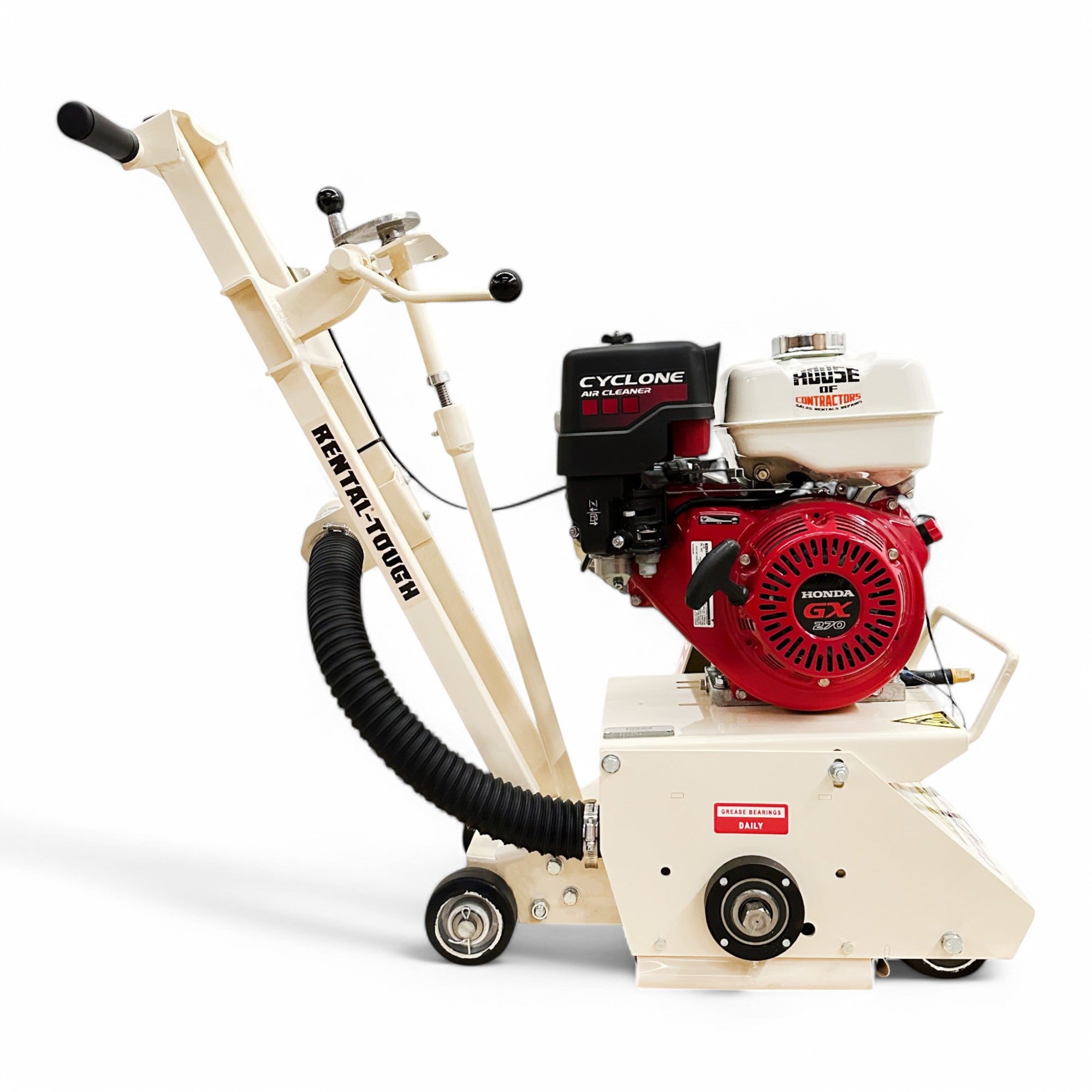

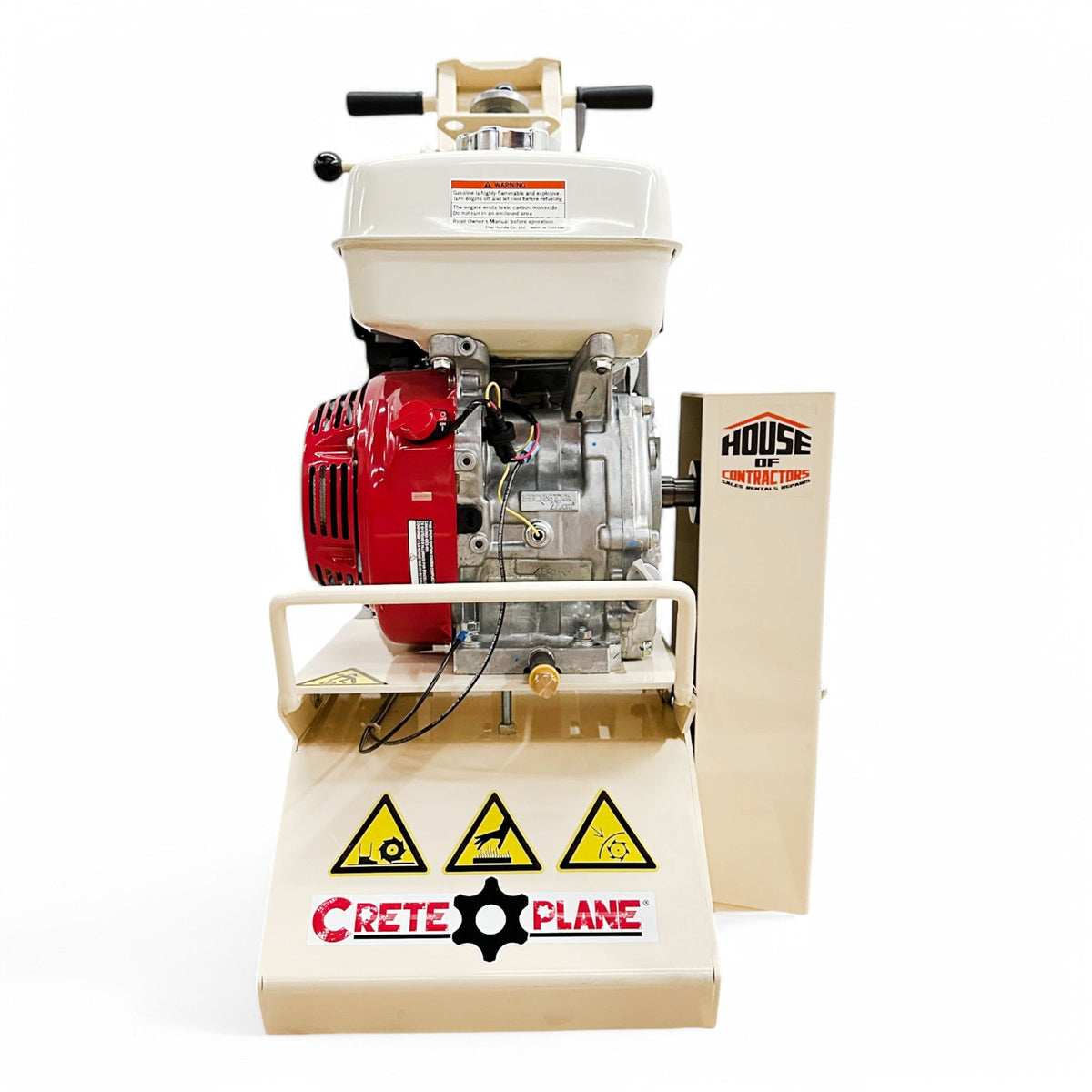

Available in both gasoline (CPM-8G) and propane (CPM-8P) models, the EDCO CPM8 combines a powerful drive system with a compact body and a front-mounted handle for easy transport and jobsite navigation. It features an 8-inch wide cutting drum, positioned to maximize vibration absorption and surface contact, and can scarify 350–500 square feet per hour at a depth of 1/8” per pass—making it ideal for fast removal or repair projects.

Core Features

• 8" Working Width: Expansive drum enables broad-sweep scarifying, maximizing productivity for medium to large projects.

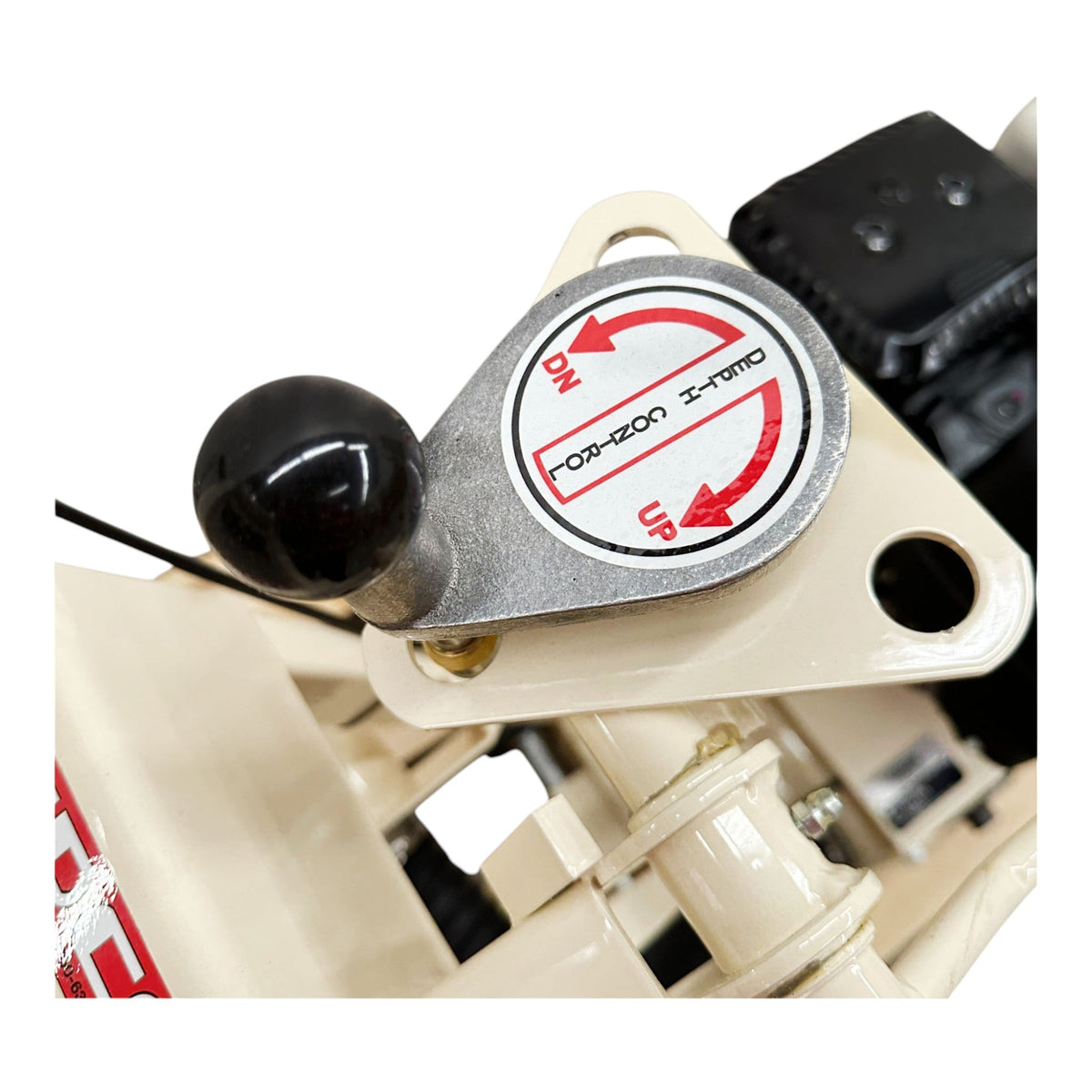

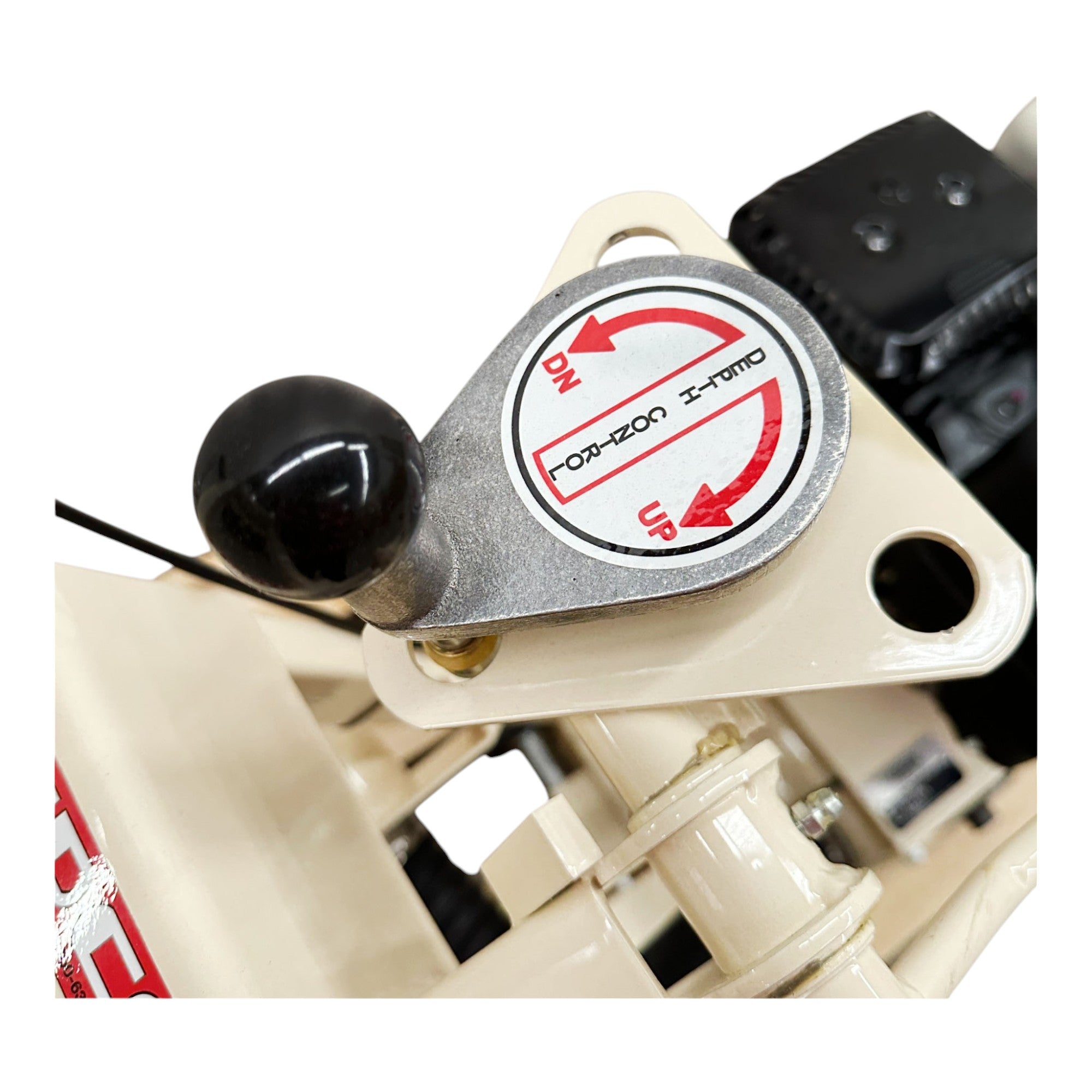

• Depth Per Pass: Up to 1/8"—sufficient for trip hazard elimination, overlay removal, or surface roughening.

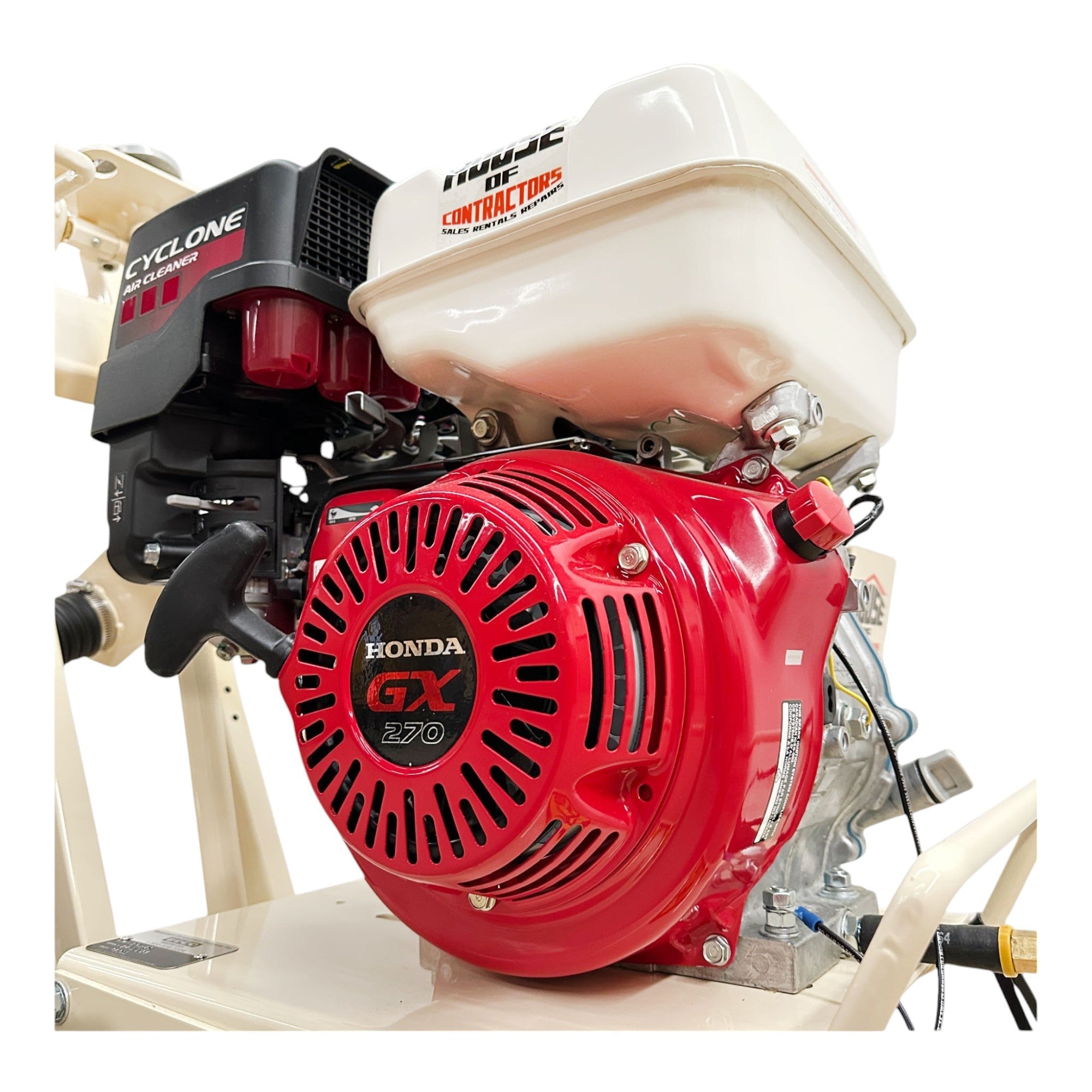

• Power Options: Choose between a reliable 9 HP Honda GX270 gasoline engine (CPM-8G) or a robust 305cc propane system (CPM-8P), ensuring suitability for every site.

• High Production Rates: Scarify 350–500 sq. ft. per hour and remove up to 1,000 linear feet of traffic lines per hour.

• Vibration Reduction: Direct placement of the power source over the drum minimizes vibration, promoting both user comfort and grinding consistency.

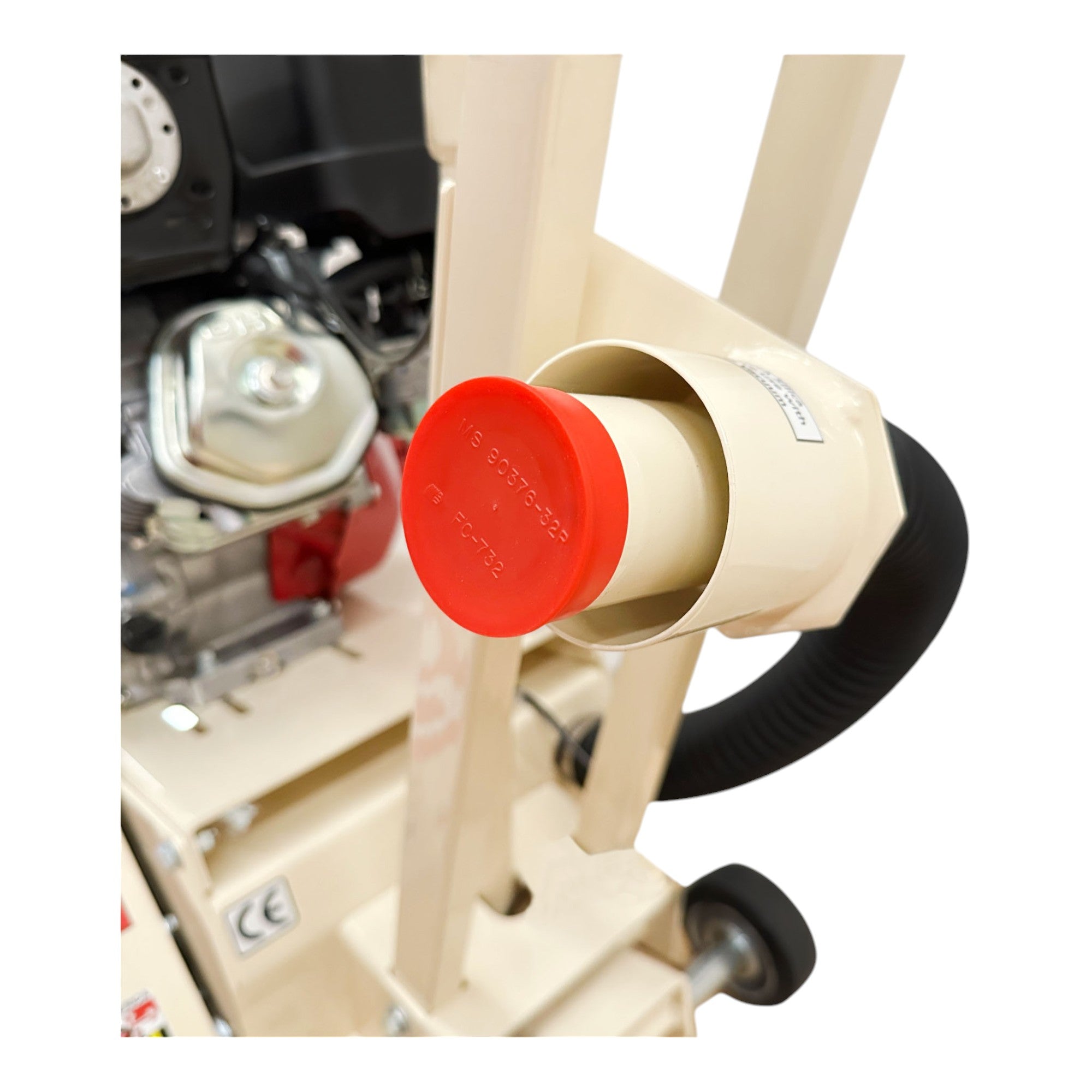

• Vacuum Port Equipped: Standard 2" or 3" vacuum port enables connection to dust extraction systems for efficient dust mitigation and OSHA-compliance.

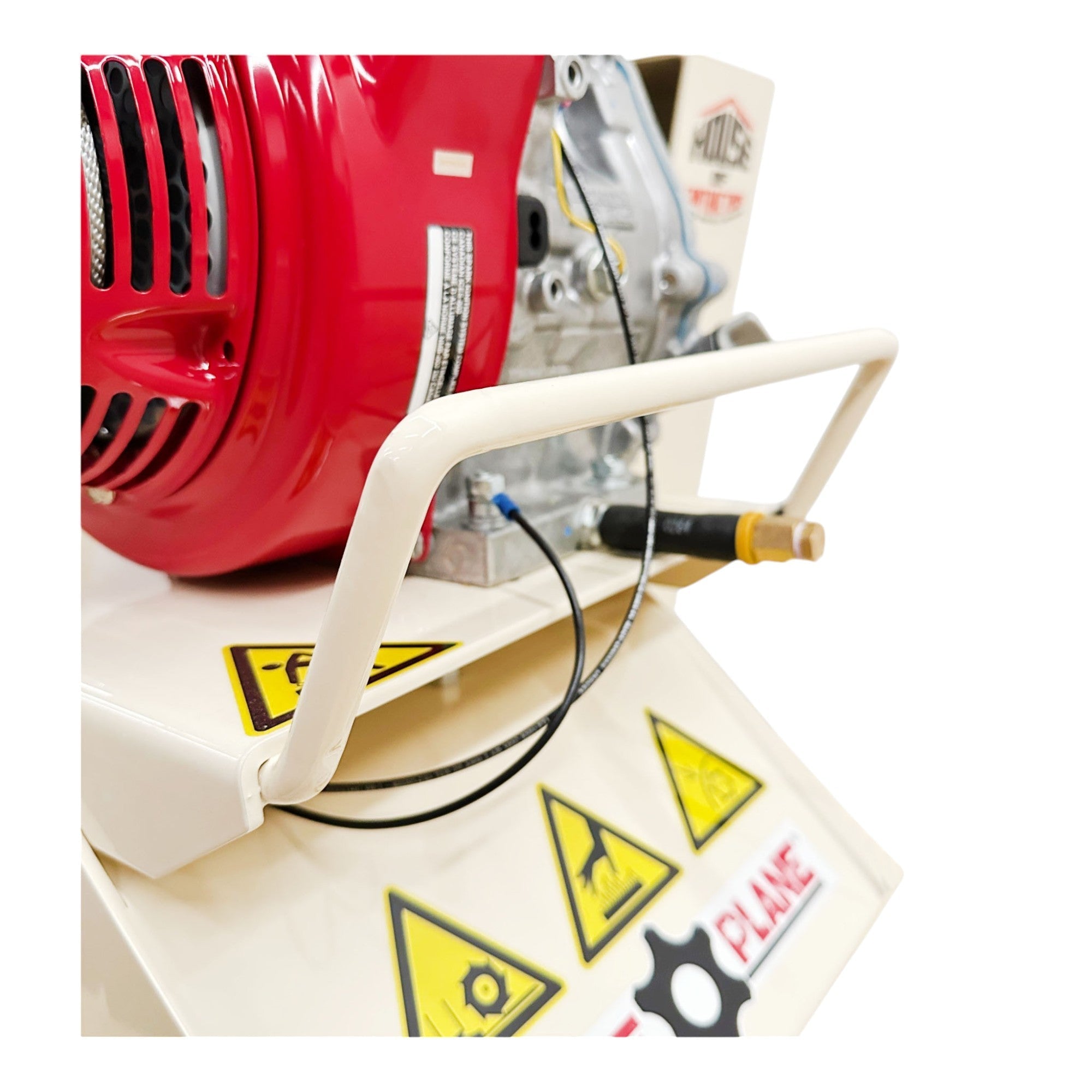

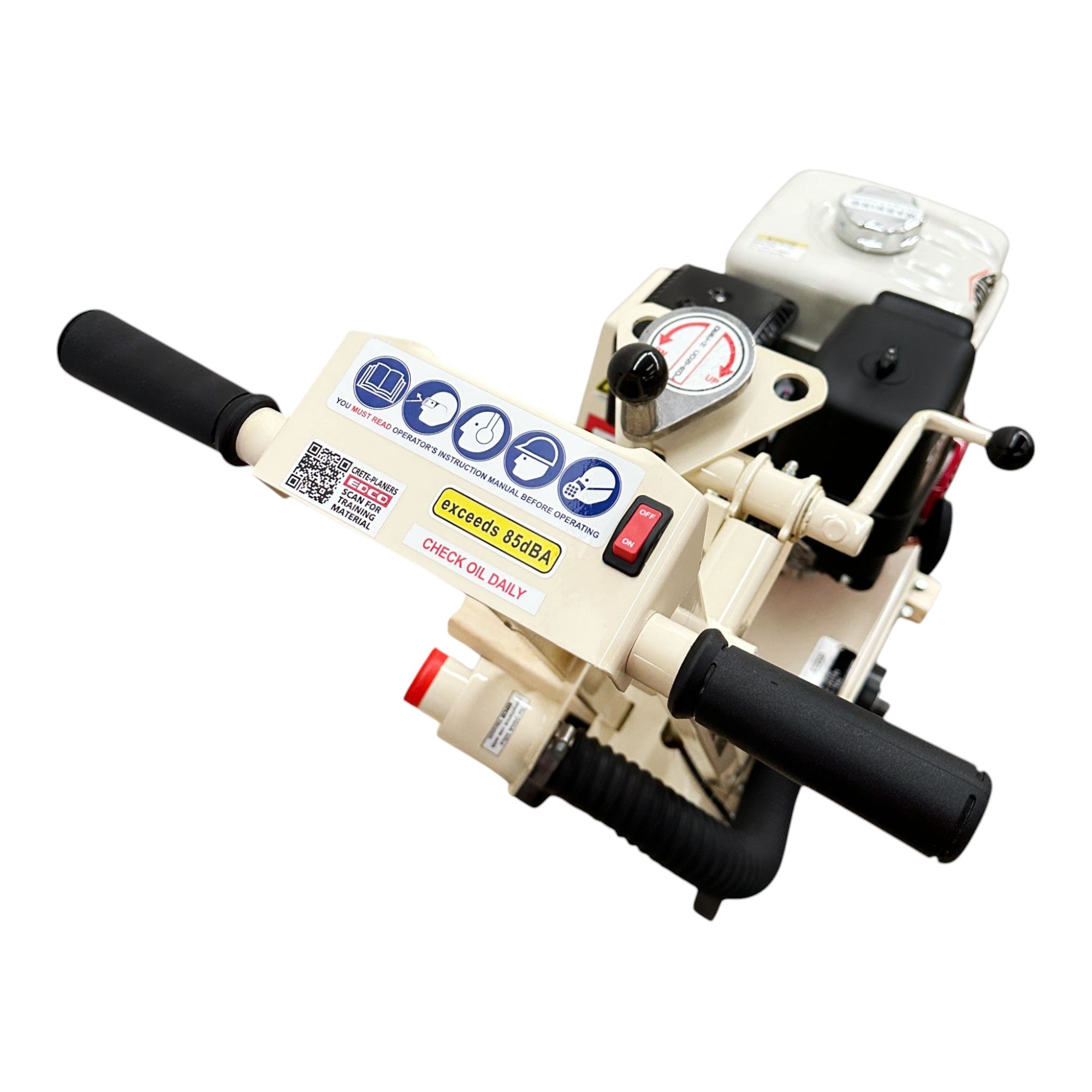

• Front Lifting Handle: Simplifies loading/unloading, especially important for mobile crews and rental operations.

• Compact Design: Easily fits through doors and navigates tight spaces; weighs approximately 190–220 lbs. for convenient transport.

Performance and Versatility

The CPM8’s scarifying action makes it an ideal choice for multiple demanding applications:

• Sidewalk & Trip Hazard Repair: Removes raised slabs and evens out transitions for code-compliant, safe pedestrian surfaces.

• Line & Marking Removal: Efficiently removes paint, epoxy, and thermoplastics from concrete and asphalt in parking lots and roadways.

• Coating Removal & Floor Preparation: Prepares surfaces for overlays or new coatings, removes old sealants, and cleans contaminated slabs.

• Texturing/Anti-Slip Creation: Creates non-slip finishes on ramps, loading docks, or pool surrounds for added safety.

• General Cleaning & Milling: Addresses weathering, oil spots, or stubborn adhesives to restore slab surfaces for new installs.

Maintenance and Operator Tips

• Daily Cleaning: Blow out dust from drum cavity, belts, and ventilation after use; empty vacuum bags if using dust collection.

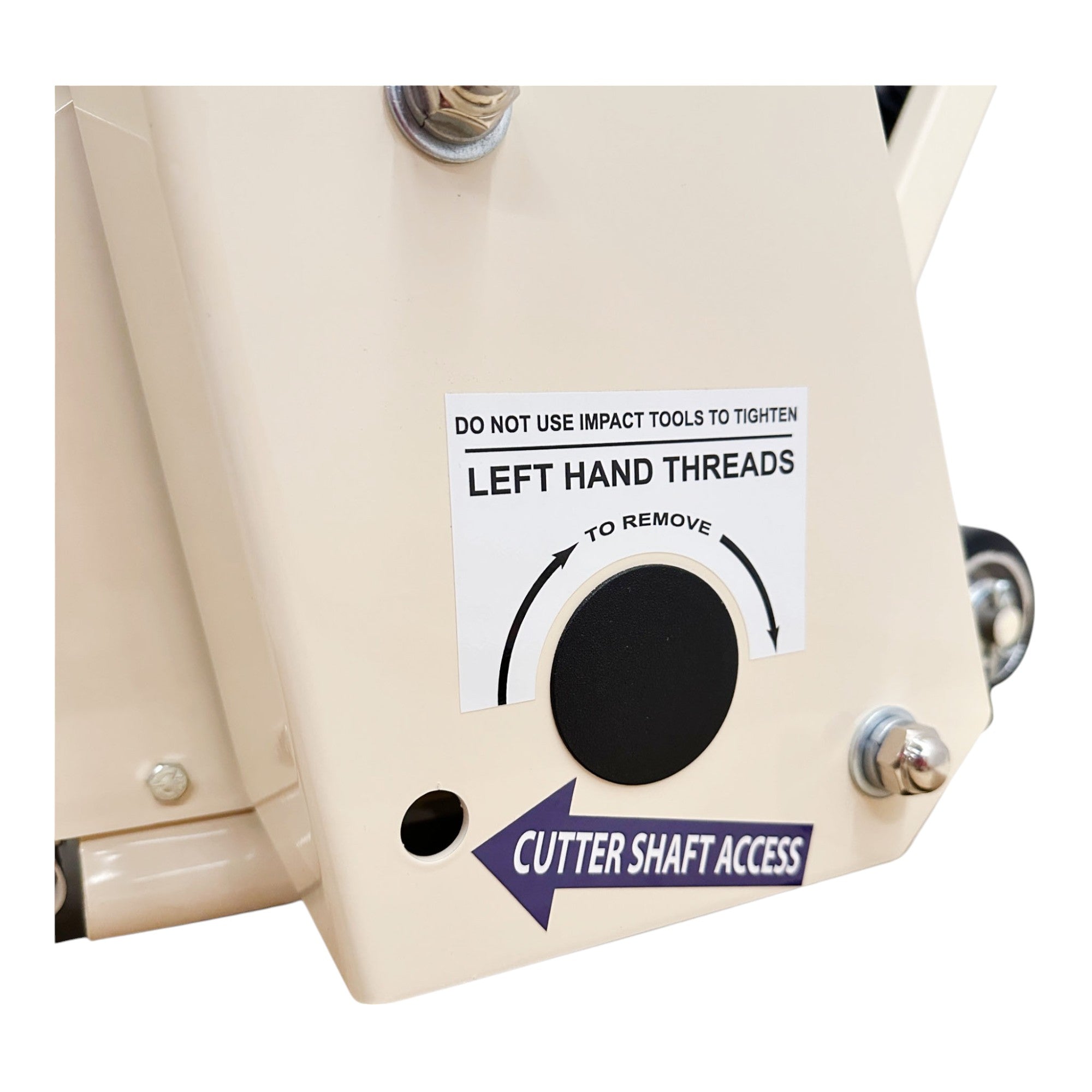

• Cutter & Drum Care: Rotate and replace carbide cutters as needed for even wear and fast, clean cuts; inspect spacers and shafts routinely.

• Belt Tension: Retension or replace belts after initial break-in and periodically to maintain consistent torque and avoid slipping.

• Engine and Propane Checks: Maintain proper oil levels, air/fuel filter cleanliness, and safe propane storage/fill procedures.

• Vacuum System: Clean hoses and ports; check seals to ensure maximum dust capture and maintain OSHA compliance.

• Edger Attachment Use: Install when closer work along walls or curb lines is needed—allows grinding up to 1 3/4” from any vertical surface.

• Water System: For optional misting, flush lines after use to prevent mineral buildup and pump wear.

Safety Best Practices

• Only operate outdoors or in ventilated locations when using gasoline/propane models.

• Always use PPE: safety glasses, hearing protection, gloves, and dust masks.

• Inspect all connections and fasteners before use; do not bypass guards or safety shields.

• Shut off fuel supplies and let engine cool before maintenance or drum changes.

Frequently Asked Questions

Q: What is the maximum depth per pass?
A: 1/8” per pass, with multiple passes possible for deeper removal as needed.

Q: How close can the CPM8 scarify to walls?
A: With the edger kit, it can work up to 1 3/4” from a vertical surface.

Q: What surfaces does it work on?
A: Concrete, asphalt, and a range of coatings or overlays for roads, sidewalks, floors, and parking areas.

Q: How is dust controlled?
A: Use an industrial vacuum or dust collection system attached to the built-in port for nearly dustless operation.

Q: Which engine models are offered?
A: Honda GX270 (gas, CPM-8G) and a 305cc propane engine (CPM-8P) for clean-emission compliance sites.

Conclusion

The EDCO CPM8 8 Inch Gas/Propane Walk-Behind Crete-Planer is the professional’s powerhouse for scarifying, leveling, and prepping concrete and asphalt surfaces. Its sturdy engineering, versatile power options, high productivity rates, dust control compatibility, and compact footprint make it an unrivaled choice for trip hazard removal, line erasing, coating prep, and texturing on any size project. Rugged, reliable, and user-friendly, the CPM8 is a must-have for contractors demanding results and efficiency in all surface prep scenarios.
