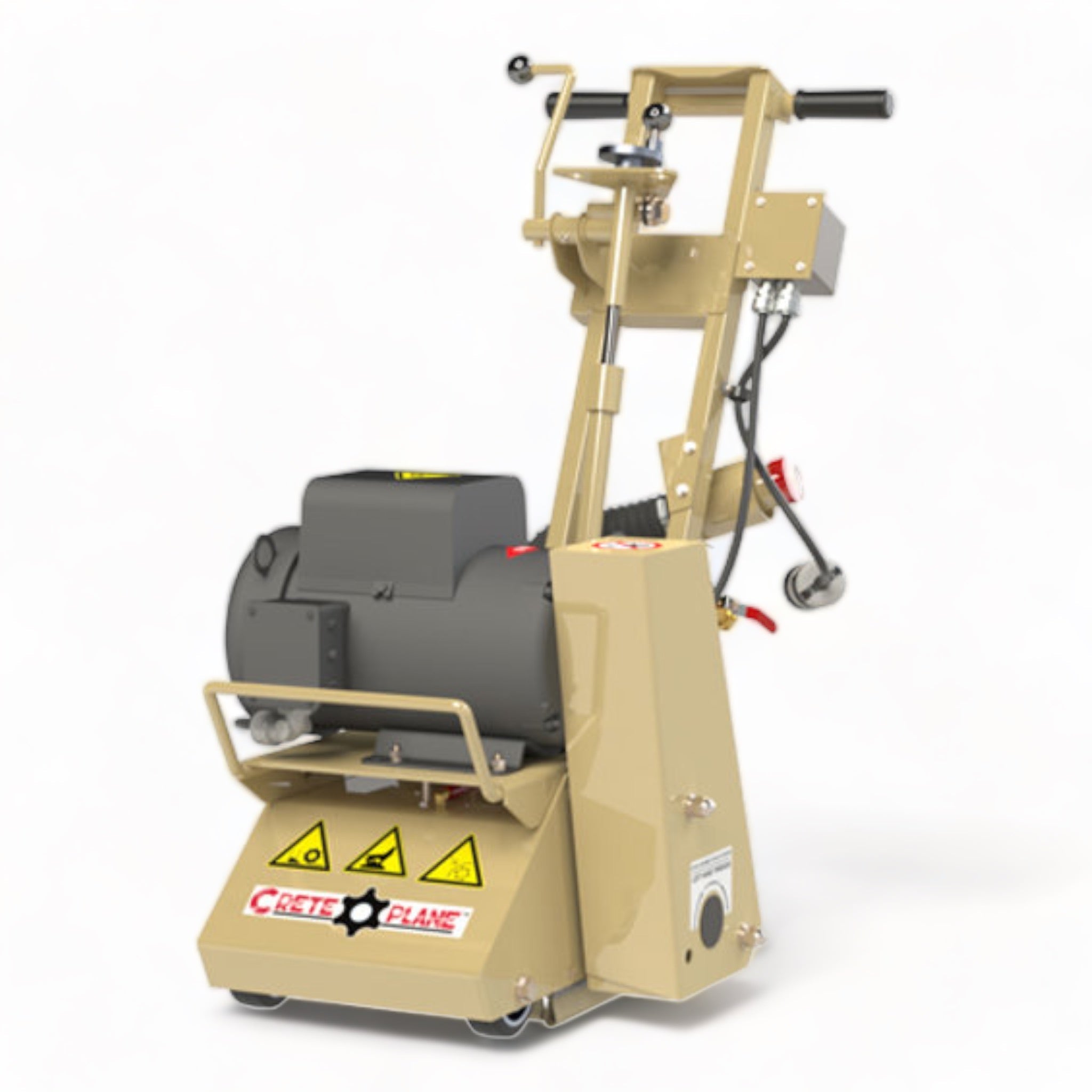

The EDCO CPM8E 8 Inch Electric Walk-Behind Crete-Planer is the construction industry’s gold-standard tool for aggressive concrete and asphalt surface removal, leveling, texturing, and coating preparation. Trusted by contractors, facility managers, and floor preparation pros, this scarifier (planer) delivers maximum working efficiency, unmatched durability, and precise depth control, all while meeting modern environmental and workplace safety standards.

Product Overview

Designed for tackling sidewalk trip hazards, removing lines, or prepping for fresh coatings, the EDCO CPM8E’s 5HP electric motor pairs heavy-duty scarifying power with the clean convenience of electric drive—making it suitable for both indoor and outdoor use. Its compact, maneuverable frame and robust design handle tight areas and tough jobs with equal ease, while its versatility makes it an essential tool for professionals seeking efficient, controllable, dust-managed surface removal.

Key Features

• 8” Working Width: Scarifies 350–500 sq. ft. per hour, allowing efficient removal on sidewalks, warehouses, industrial floors, and more.

• Depth Per Pass: Removes up to 1/8” per pass, ensuring controlled material removal and smoother, more uniform finishes.

• Versatile Drum & Cutters: Comes standard with 78 cutters and 215 spacers, with easy access for drum changes and configuration for different surface preparation tasks.

• Powerful 5HP Electric Motor: Three-phase 230/460V (6/12A) or single-phase 230V options deliver ample torque for concrete, asphalt, and overlay removal without gasoline fumes or exhaust.

• Precision Depth Controls: Simple, quick depth adjustment system with a locking feature for perfect, repeatable cuts and grade control.

• Vibration Mitigation: Power source is mounted directly over the drum, maximizing downward force, vibration control, and surface contact for superior cut consistency.

• Compact & Portable: Front-mounted lifting handle makes loading/unloading simple; compact sizing (approx. 35”L x 20”W x 39”H) fits through standard doors.

• Vacuum Port Equipped: Dust port enables easy connection to industrial vacuums, ensuring dust containment and compliance with OSHA silica standards.

• Downcut Drum Rotation: Efficient downward cutting, driving debris out for easy clean-up and consistent performance.

Technical Specifications

Application Versatility

The EDCO CPM8E is engineered for a multitude of applications:

• Sidewalk/Trip Hazard Repair: Level lips, high spots, or uneven seams with fast, consistent passes.

• Line/Marking Removal: Strip paint and thermoplastic lines from parking lots, runways, and roadways—removes lines at 800–1,000 ft/hr.

• Surface Prep for Coatings: Texture, rough up, or clean old concrete before applying epoxy, polish, overlays, or sealers.

• Non-Slip Surface Creation: Create profile for ramps, curb cuts, or ADA-compliant paths.

• General Cleaning: Remove oil, grease, coatings, and surface contaminants quickly and effectively.

Maintenance & Best Practices

• Daily Cleaning: After use, clean dust and debris from the drum, bearings, belts, and around vac ports to prolong life and prevent blockages.

• Lubrication: Grease cutter assembly bearings after every 4 hours of use, and the depth control point every 40 hours.

• Belt Care: On new machines or after replacing belts, re-tension after the first 4 hours and then monitor and adjust regularly. Use only genuine belts and replace as a set to ensure balanced performance.

• Cutter Replacement: Inspect cutters and spacers for excessive wear or dulling, replacing as needed. The correct configuration improves speed and finish quality.

• Check Fasteners: Regularly check and tighten all bolts, nuts, and hardware—scarifiers are subject to vibration that can loosen connections over time.

• Vacuum Maintenance: Clean the vacuum system and filter regularly for optimal dust containment and airflow.

Operator Safety & Operation Tips

• PPE: Always wear safety goggles, hearing protection, sturdy gloves, and dust masks.

• Power Safety: For electric models, ensure cords are grounded, use GFCI outlets, and inspect cables for wear.

• Level Surface: Only operate on flat, stable surfaces, secure loose items, and review operator’s manual before starting.

• Cutting Advice: Scarify in slow, controlled passes—don’t remove more than 1/8” at a time. For deeper removal, make multiple passes.

Frequently Asked Questions

Q: How much material can the CPM8E remove per hour?
A: Typically 350–500 sq. ft. per hour, with up to 1/8” removed per pass. Traffic lines can be eliminated at up to 1,000 lin. ft. per hour.

Q: Can the electric Crete-Planer be used indoors?
A: Yes, its emissions-free operation makes it ideal for interior work or closed environments.

Q: What drum/cutter options are available?
A: The machine fits standard EDCO 8” scarifier drums and can be customized with optional cutters or an edger attachment for jobs near walls.

Q: How do I minimize dust?
A: Always connect the built-in vac port to a compliant industrial vacuum during operation for both dust control and OSHA silica compliance.

Conclusion

The EDCO CPM8E 8 Inch Electric Walk-Behind Crete-Planer is the contractor’s choice for powerful, reliable, and precise surface removal and prep. Its blend of fast production rates, tough electric power, low maintenance, and dust-controlling engineering makes it ideal for a huge range of commercial, municipal, and industrial applications. For flattened sidewalks, clean floors, or etched surfaces, the CPM8E delivers safe, smooth, and professional results—every time.
