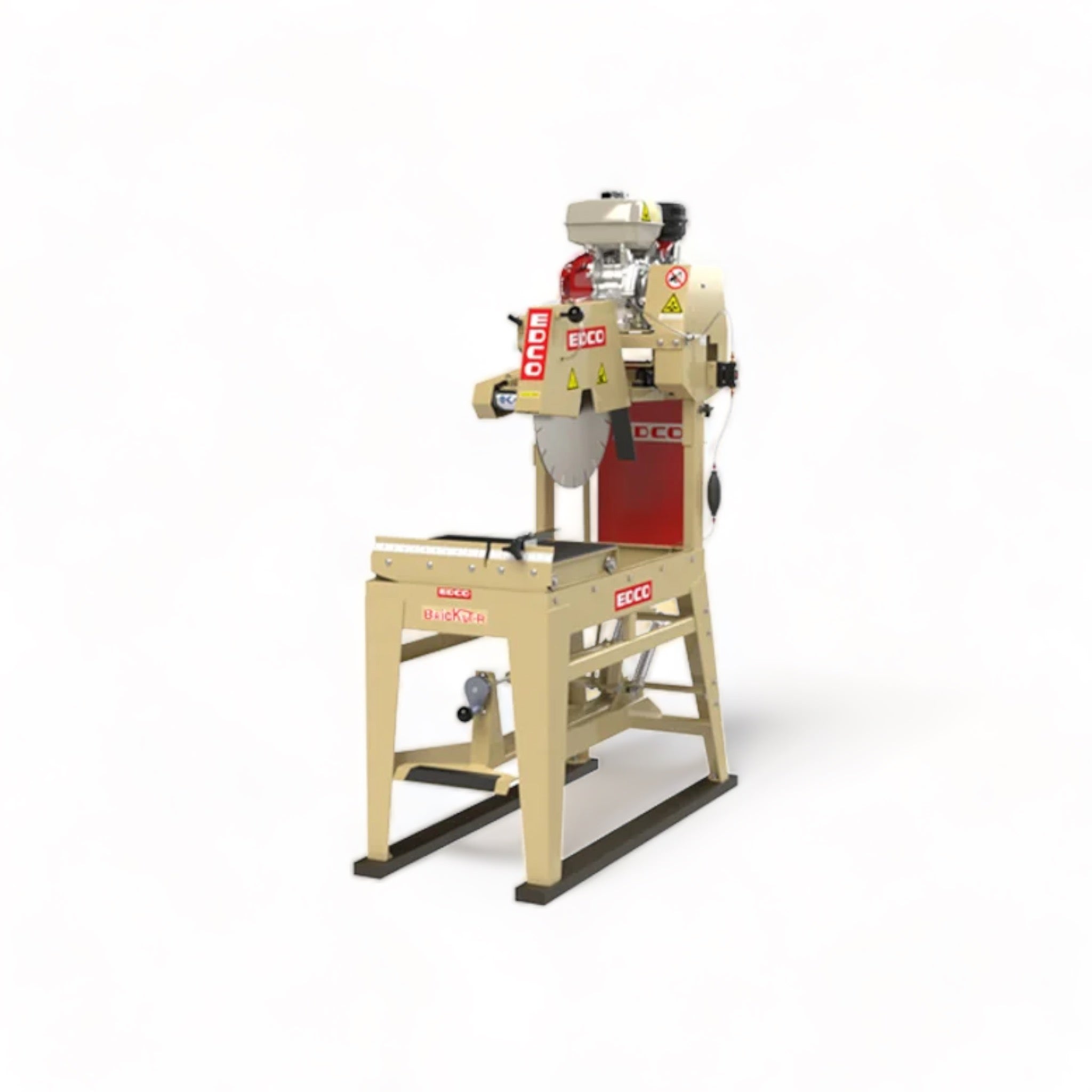

EDCO GMS20 20 Inch Gas Masonry Saw + Electric Start

EDCO GMS20 20 Inch Gas Masonry Saw + Electric Start

NOTE: BLADE ON SAWS IN PICTURE ARE NOT INCLUDED : BLADES MUST BE PURCHASED SEPARATELY

Masonry Saws are used for all kinds of installation applications like patios, landscaping, and decorative/commercial builds. Users cut with this 20" saw by using the hands-free foot pedal. You can cut a block up to 8" on both sides.

FEATURES

• Electric & Gasoline power
• Freestanding model with 14" to 20" blade capacity
• Large capacity, 3-stage air filter protects from wear
• Belt driven diaphragm water pump is standard and can be disconnected when cutting dry
• Fixed or adjustable cutting head for extra versatility
• Extra-large rolling table supports large materials and rolls easily
• Double-sided table rails are easy to replace
• Standard foot pedal for hands-free operation
• Patented fixed engine platform.

IDEAL FOR

• Professional masons
• Block manufacturers
• Block masons
• Paver manufacturers
• Paver installers
• Landscape suppliers
• Masonry equipment suppliers

Specifications Table

The EDCO GMS20 20 Inch Gas Masonry Saw + Electric Start is a robust, professional-grade solution built for masons, contractors, and landscapers who need efficient, precise cutting of block, brick, pavers, stone, and other masonry materials. Combining heavy-duty engineering with features like a reliable gas engine and electric start, this saw delivers maximum productivity and operator comfort for large commercial builds, hardscape installation, and decorative projects.

Product Overview

The EDCO GMS20 shines with its powerful Honda GX390 13 HP engine—outfitted with a 12V electric starter—which means instant, hassle-free ignition every time. The saw’s design supports a massive 20” blade (accepting 14”–20” for versatility), and the extra-large rolling table allows for block up to 8” to be cut on both sides. A patented fixed engine platform, three-stage air filter, and belt-driven diaphragm water pump ensure long life and consistent, dust-suppressed performance in the harshest environments.

Key Features

• Electric Start 13 HP Honda GX390 Engine: No pull-starting hassles—even in cold or rugged conditions. Provides ultra-reliable power for tough cutting, with a 12V starter, battery, and charging system built-in.

• Freestanding, Heavy-Duty Construction: Large footprint adds stability, reduces vibration, and allows “hands-free” foot pedal operation for enhanced safety and precision.

• 20” Blade Capacity (14"–20" usable): Cut block, stone, or pavers up to 8” thick from both sides in a single pass—ideal for tall architectural block or thick landscape material.

• Adjustable Cutting Head: Fixed for speed or adjustable for specialty work, letting operators meet the needs of both repetitive and unique jobs.

• Belt Driven Diaphragm Water Pump: Provides consistent water flow to the blade for cooling and dust suppression; can be quickly disconnected for dry cutting.

• Massive Rolling Table with Replaceable Double-Sided Rails: Supports oversized workpieces and enables smooth, guided, accurate cuts, even under heavy loads.

• 3-Stage Air Filtration: Keeps the engine protected from dust and debris, crucial for longevity on dusty sites.

• Standard Foot Pedal: Enables hands-free operation for greater operator safety and convenience.

• Patented Fixed Engine Platform: Improves blade alignment, eases maintenance, and prolongs machine lifespan.

Benefits & Performance

• Big Cuts, Heavy Materials: The GMS20 handles the largest architectural and landscape block, thickest paving stones, and natural stone or engineered slabs—delivering clean, consistent, and straight cuts every time.

• Workflow Efficiency: Electric start saves time at every job; rolling table, foot pedal, and hands-free operation boost safety and minimize user fatigue.

• Maximum Life in Harsh Conditions: Triple-stage air filtration, robust belt drive, and protected water pump ensure performance doesn’t degrade on demanding or dusty projects.

• Flexible Cutting Styles: Switch between wet and dry cutting as the job requires, quickly disengaging water when not needed.

• Quick Maintenance: Replaceable table rails, accessible engine platform, and external pump mean repairs and upkeep are fast—keeping crews moving and minimizing downtime.

Applications

• Cutting block, brick, stone, and pavers for commercial masonry, landscaping, patios, and hardscape projects

• Architectural jobs requiring tall block or intricate layouts

• Large retaining wall or paver installs in landscape/hardscape

• Roadway median, curb, or step construction

• Tile and stone cutting for high-end entryways or façades

Maintenance Best Practices

• Before Each Use: Inspect blade, water system, air filter, belts, and all nuts/bolts. Top off fuel and engine oil. Test electric starter for reliable operation.

• Daily Cleaning: Clean debris from the machine, water lines, and tray rails. Flush blade guard after wet cutting to prevent residual build-up.

• Belt & Drive: Retension “V” belts after first several uses, then check tension weekly—replace belts as a matched set for even drive.

• Table Rail Maintenance: Replace rails if rolling table becomes rough or misaligned; reverse double-sided rails for extended life.

• Electric Start Battery: Maintain battery charge, inspect connections, and replace as needed.

• Water Pump: Periodically flush to prevent clogging, especially after dry cutting or heavy use.

• Air Filter: Tap out dust daily; replace filter at regular intervals—especially after high-dust jobs.

Safety Guidelines

• Always use OSHA-approved PPE: safety goggles, hearing protection, gloves, and dust masks.

• Never override or disable safety guards.

• Use the belt-driven water pump when wet cutting to minimize dust and blade wear.

• Perform all maintenance with the engine off and disabled, and ensure the blade is at a complete stop.

• Follow step-cut guidelines for thick block—never force the blade for full-depth cuts at once.

Frequently Asked Questions

Q: What engine is included?
A: Honda GX390, 13 HP, with 12V electric start; automatic charging system included.

Q: What is max cut thickness?
A: Up to 8” on both sides in one pass—perfect for landscape/tall block projects.

Q: Is wet and dry cutting supported?
A: Yes. Use the standard water pump for wet cuts, disconnect as needed for dry operations—consult blade specs for best results.

Q: How is safety addressed?
A: Foot pedal operation keeps hands clear; heavy-duty guard, protected motor, and hands-free start enhance operator safety.

Q: What is the weight and size?
A: Around 480–485 lbs, and dimensions of 58.5" long x 26" wide x 75.5" high.

Conclusion

The EDCO GMS20 20 Inch Gas Masonry Saw + Electric Start is the ultimate tool for professionals needing reliable power, deep cut capacity, robust construction, and advanced operator convenience. With its premium Honda GX390 electric start engine, massive rolling table, hands-free design, and long-lasting engineering, the GMS20 guarantees top performance, maximum safety, and longevity for every masonry or hardscape job—making it the #1 choice for contractors who demand the best in the industry.
