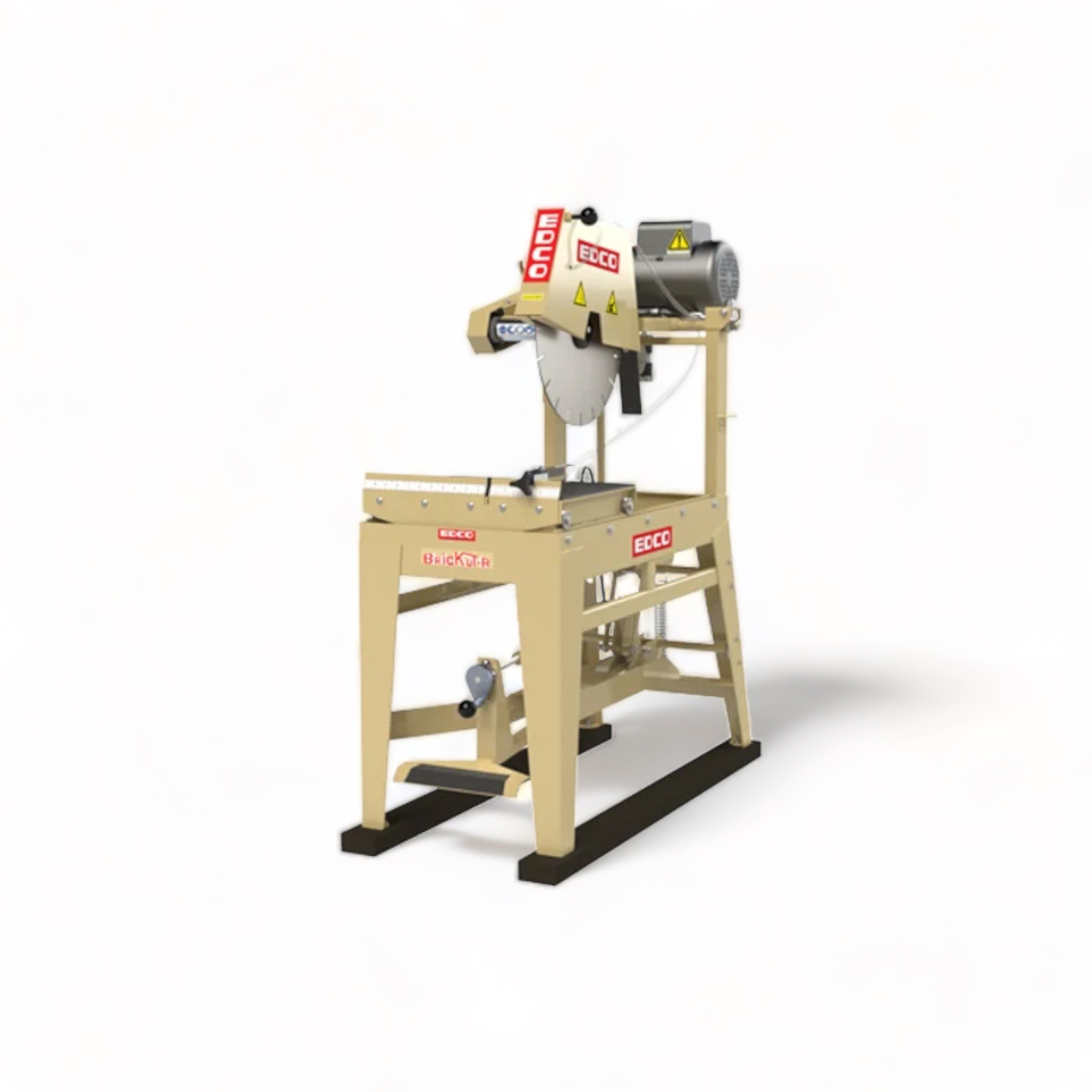

EDCO MS20E 20 Inch Electric Masonry Saws
Couldn't load pickup availability
Ready to work out of the box!
All tools are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!
Got questions?
Feel free to get in touch
Ask an expert!
EDCO MS20E 20 Inch Electric Masonry Saws
NOTE: BLADE ON SAWS IN PICTURE ARE NOT INCLUDED : BLADES MUST BE PURCHASED SEPARATELY
Masonry Saws are used for all kinds of installation applications like patios, landscaping, and decorative/commercial builds. Users cut with this 20" saw by using the hands-free foot pedal. You can cut a block up to 8" on both sides.
FEATURES
- Electric power
- Freestanding model with 14" to 20" blade capacity
- Large capacity, 3-stage air filter protects from wear
- Belt driven diaphragm water pump is standard and can be disconnected when cutting dry
- Fixed or adjustable cutting head for extra versatility
- Extra-large rolling table supports large materials and rolls easily
- Double-sided table rails are easy to replace
- Standard foot pedal for hands-free operation
- Patented fixed engine platform.
IDEAL FOR
- Professional masons
- Block manufacturers
- Block masons
- Paver manufacturers
- Paver installers
- Landscape suppliers
- Masonry equipment suppliers
Technical Specifications
AVAILABLE OPTIONS
ED21200 - MS20E - 5HP/230V/1 Phase/60Hz Electric 20"
ED21300 - MS20E - 7.5HP/3 Phase/60Hz Electric 20"
Specs
MS-20-5
- Power: Electric
- Horse Power: 5 HP
- RPMs: 2,500
- Phase: Single Phase
- Length: 55"
- Width: 26"
- Height: 63"
- Weight: 440 lbs
- Max Cut - Depth (Fixed): 8"
- Max Cut - Depth (Chop): 16"
- Belts: Cgd "V" Belt
MS-20-7.5H
- Power: Electric
- Horse Power: 7.5 HP
- RPMs: 2,500
- Phase: Three Phase
- Voltage: 230/460 V
- Amps: 8.7/17.4 A
- Length: 55"
- Width: 26"
- Height: 63"
- Weight: 455 lbs
- Max Cut - Depth (Fixed): 8"
- Max Cut - Depth (Chop): 16"
- Belts: Cgd "V" Belt
The EDCO MS20E 20 Inch Electric Masonry Saw stands out as a professional-grade solution for cutting large blocks, bricks, pavers, and landscape materials in commercial and residential construction. This freestanding, high-capacity masonry saw offers reliable performance, ergonomic operation, and advanced dust and water management—making it a top choice for patios, landscaping, decorative builds, and demanding installation jobs.
Product Overview
The EDCO MS20E is engineered for precision and efficiency, thanks to its 20-inch blade capacity and powerful electric motor. Its robust frame, patented fixed engine platform, and customizable cutting head guarantee clean, straight cuts through thick masonry materials. The saw’s large rolling table supports big workpieces, while hands-free foot pedal operation keeps the work both safe and productive over long sessions.
Key Features
-
Blade Capacity: Accommodates 14” to 20” blades, with the ability to cut blocks up to 8” thick from both sides in a single pass. This allows for quick cutting of standard and oversized masonry units, reducing labor time and improving accuracy.
-
Powerful Electric Motor: Models include a reliable 5 HP single-phase or 7.5 HP three-phase motor, providing consistent power and no fuel emissions—ideal for indoor environments or emissions-sensitive jobsites.
-
Hands-Free Foot Pedal: Standard foot pedal allows operators to control the rolling table, keeping hands safely away from the blade and streamlining workflow.
-
Three-Stage Air Filter: A large capacity filter system protects the motor and key components from dust and debris, minimizing long-term wear in tough cutting environments.
-
Versatile Cutting Head: Choose between fixed or adjustable cutting heads for maximum flexibility in handling a wide variety of masonry materials and specialty jobs.
-
Advanced Water System: The belt-driven diaphragm water pump delivers consistent water to the blade for cooling and dust suppression, and can be disconnected/disengaged for dry cutting. Optional vacuum hookup is also available for dust-free operation.
-
Replaceable Table Rails: Double-sided table rails make alignment easy and replacement straightforward, supporting long-term durability and performance.
-
Extra-Large Rolling Table: Supports big, heavy materials while gliding smoothly, reducing the need for repeated realignment during cutting.
Performance Benefits
-
Fast, Accurate Cutting: The MS20E cuts thick blocks, pavers, and bricks cleanly and quickly, with support for wet or dry cutting methods to suit every project need.
-
Safe, Ergonomic Operation: Hands-free controls and intuitive design features—like the rolling table, adjustable head, and pedal—improve operator safety and minimize fatigue over long workdays.
-
Efficient Dust Suppression: Robust water and air filtration systems maintain visibility, reduce health risks, and extend machine life by keeping dust and debris under control.
-
Flexible and Durable: Replaceable rails, rolling table, and easy-to-maintain water system mean less downtime and easier service between jobs. The MS20E’s rugged construction withstands frequent job site relocation and intensive use.
Applications
The EDCO MS20E is ideal for:
-
Block, Brick, and Paver Cutting: Single-pass cuts for 8” blocks mean less time spent readjusting or flipping materials.
-
Landscape and Patio Installations: Clean, straight cuts for retaining walls, garden edges, and decorative hardscapes.
-
Commercial Masonry: Efficient workflow supports larger construction jobs with repeatable accuracy and minimal dust.
-
Tile and Stonework: Adjustable head and wet/dry capability make it well-suited for high-end interior installations.
Maintenance Tips
-
Daily Inspection: Check all nuts, bolts, cords, and filters before each use; inspect for cracks/damage on blade and arbor shaft.
-
Blade Changing: Always inspect new blades, following rotation marks for installation. Clean and check arbor shaft, backing plate, and blade guard during blade changes.
-
Water and Dust Systems: Flush water pump, tray, and nozzle regularly to avoid clogs. Use appropriate vacuums for dust extraction if cutting dry.
-
Lubrication and Cleaning: Clean rails, table, and any exposed electrical connections. Use vacuum or dry cloth to remove dust buildup, avoiding wet cleaning on electrical surfaces.
-
Service Intervals: Replace table rails as needed and check pedal action for signs of slippage or wear. Maintain filter system as outlined in the manual for continuous protection.
Safety Guidelines
-
Always wear PPE (goggles, gloves, boots, ear and respiratory protection).
-
Ensure stable footing and keep body clear of blade path.
-
Use only grounded extension cords rated for power demands.
-
Do not operate with damaged cords, loose hardware, or poorly maintained blades.
Frequently Asked Questions
Q: What is the maximum block thickness the MS20E can cut?
A: Up to 8” thick on both sides, in a single pass with the 20” blade option.
Q: Can I use the MS20E indoors?
A: Yes, its electric motor produces zero emissions, making it safe for use in enclosed environments or compliance-sensitive projects.
Q: How does the water pump work?
A: The belt-driven diaphragm pump is engaged for wet cutting and can be disengaged for dry cutting, creating a flexible user experience.
Q: What maintenance is required?
A: Regular blade and system checks, water system cleaning, rail replacement, and dust management keep the saw running efficiently.
Conclusion
The EDCO MS20E 20 Inch Electric Masonry Saw delivers exceptional durability, reliable cutting, and operator-centric features for pros tackling tough block, brick, and stonework. With a choice of high-powered electric motors, flexible cutting head, robust dust and water management systems, and hands-free controls, it’s built for accuracy, safety, and long-term performance—making it the leading choice for professionals aiming for flawless installation work in any environment.
