EDCO SEC-NG Magna-Trap Single-Disc Floor Grinder
Couldn't load pickup availability
Ready to work out of the box!
All tools are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!
Got questions?
Feel free to get in touch
Ask an expert!

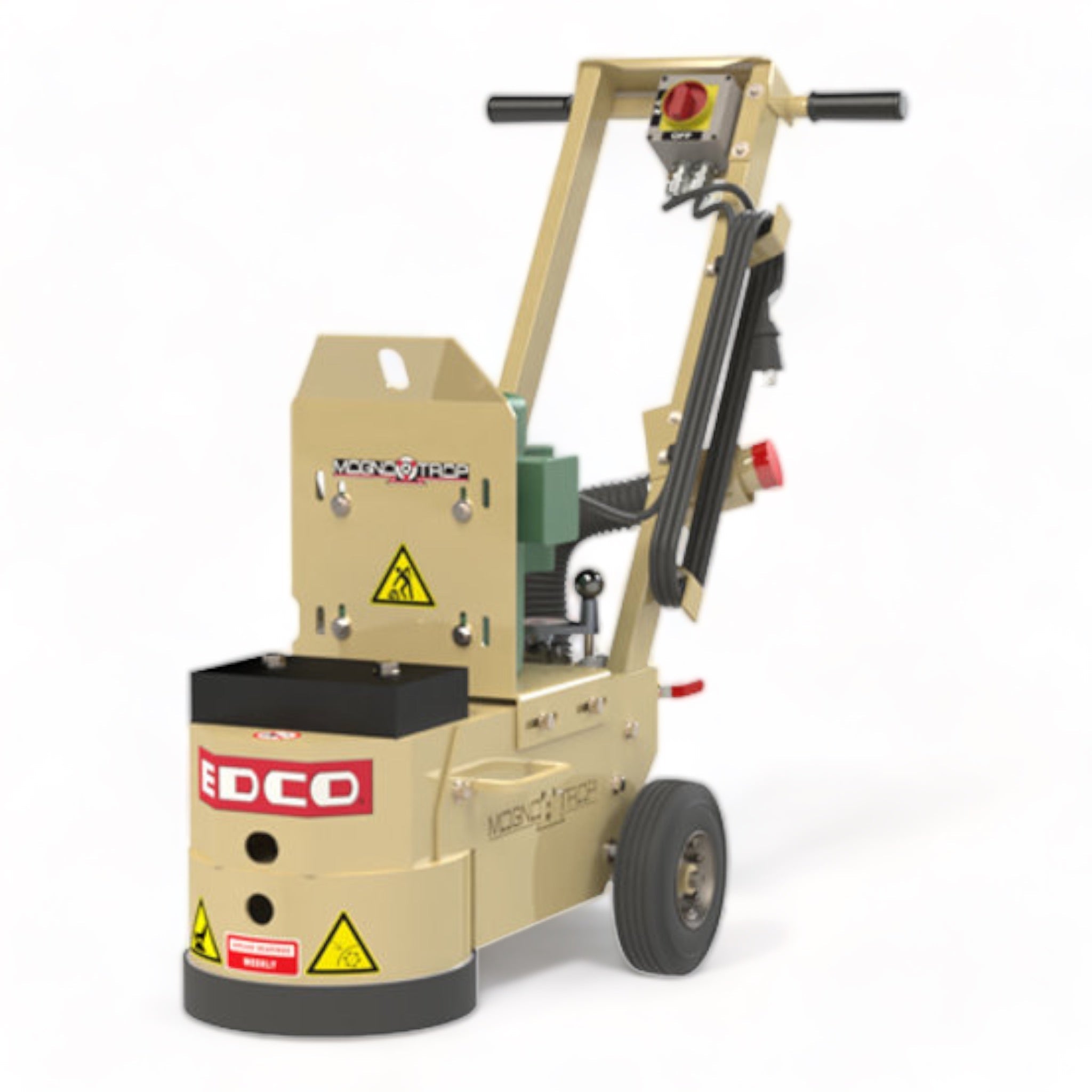

EDCO SEC-NG Magna-Trap Single-Disc Floor Grinder
Floor Grinders solve first layer applications like smoothing concrete, preparing floors for new coverings and removing thinner coatings, soft materials and ice. This single-disc model grinds approximately 250sqft per hour.
FEATURES
- GRIND WEDGE-LESS: The need for wooden wedges goes away with EDCO's Magna-Trap Slide-On Tooling.
- GRIND LEVEL: Using EDCO's exclusive Leveling System you can adjust the machine's height, use a wide range of tooling, and truly grind level. Level grinding is quicker, smoother, easier on the operator, and increases tooling life.
- VELCRO DUST SHROUD: This new heavy-duty Velcro Dust Shroud makes dust prevention easier. Simply readjust the shroud according to the height of the tooling being used.
- Extra Weight Standard: This bolted-on weight tray helps the machine work. Use when needed
- Multi-Vac port for use with 2" or 3" vacuum hose
- 10"working width will grind approximately 200-250 sq.ft. per hour at 1/32" with diamond tooling
- Electric machine plugs into dedicated residential wall outlets
- Includes 1 magnetic multi-accessory disc, which accepts all Magna-Trap accessories.
*3 grinding tools required per loading
Technical Specifications
The EDCO SEC-NG Magna-Trap Single-Disc Floor Grinder is a professional-grade, multi-purpose concrete grinder designed for efficient and effective surface preparation in residential, commercial, and light industrial settings. Combining advanced features with unmatched versatility, this floor grinder is ideal for contractors tackling smoothing, leveling, coating removal, and repair work on concrete slabs, overlays, or similar surfaces.
Product Overview
The SEC-NG is engineered with a wedge-less Magna-Trap® Slide-On Tooling system, eliminating the need for risky and time-consuming wooden wedges. It features a robust 1.5 HP electric motor (115V/230V, single phase), a heavy-gauge steel frame, and an 11-inch working width capable of grinding about 200 to 250 sq. ft. per hour at 1/32” depth per pass. Thanks to a fully adjustable leveling hand wheel and a heavy-duty Velcro dust shroud, users can customize their grinding experience for consistent, perfectly level, and dust-free results.
Key Features
-
Magna-Trap Slide-On Tooling: Enables wedge-free, tool-less accessory changes for use with Dyma-Dots, Dyma-Serts, Strip-Serts, Magna-Blades, and specialty pads—covering grinding, scraping, cleaning, and polishing.
-
Adjustable Leveling System: Hand wheel makes it easy to maintain level contact with the floor, ensuring even grinding, reduced operator fatigue, and longer tooling life.
-
Heavy-Duty Velcro Dust Shroud: Removable, adjustable shroud fits the current accessory height for improved dust collection and OSHA compliance. Multi-vac port accommodates 2" or 3" hoses for superior jobsite cleanliness.
-
Magnetic Multi-Tool Disc: Accepts all Magna-Trap accessories, with three grinding tools per load, supporting a wide array of prep, repair, or finishing requirements.
-
11" Working Width: Higher productivity for small- or mid-size projects, with a round shroud enabling edge grinding tight against walls.
-
Extra Weight Tray: Standard bolted weight tray increases grinding pressure as needed for more aggressive removal or polishing jobs.
-
Residential Power Convenient: Connects to common 115V/230V outlets—no need for special wiring on most residential or commercial jobsites.
Performance & Benefits
-
Wedge-Less Grinding: Slide-on tooling saves significant time with rapid, safe accessory swaps, supporting both broad-area grinding and quick spot repairs.
-
Perfectly Level Surfaces: Exclusive hand wheel makes leveling precise, smoothing uneven slabs, lifting trowel/rain marks, and improving finish uniformity.
-
Superior Dust Control: With the multi-vac port and Velcro shroud, the SEC-NG supports OSHA-compliant dust extraction, promoting cleaner air and tidier work.
-
Operator Comfort: Substantial, balanced frame and extra weight tray minimize vibration, maximizing user comfort and jobsite safety over long use periods.
-
Applications Versatility: Equally adept at removing urethane, epoxy, mastics, thin-sets, resins, or paint build-up; smoothing rough pours or prepping slabs for overlays or coatings.
Ideal Applications
-
Grinding, leveling, smoothing concrete, terrazzo, overlays, surface imperfections, or repair patches.
-
Removing epoxies, mastics, thin-sets, paint, and adhesives from floors pre-renovation or re-coating.
-
Polishing or surface texturing for non-slip finishes or decorative work.
-
Small footprint makes it ideal for jobs smaller than 1,500 sq. ft, residential garages, basements, offices, and hallways.
Maintenance Tips
-
Before Each Shift: Inspect tools and dust shroud, check vac hose, and verify power cord integrity.
-
After Use: Wipe down exterior, vacuum under shroud, and clean vac port. Remove and clean tooling holders and shroud attachment.
-
Bearings & Lubrication: Grease the two main bearings every 40 hours (see holes on the front of the machine), or as recommended—prevents wear and extends tool life.
-
Weekly/Monthly: Check belt tension, frame, wheels, and power cord integrity. Replace brushes and tooling as needed for optimal performance.
-
Storage: Store dry and cover to avoid corrosion and contamination.
Safety Guidelines
-
Only plug into grounded, GFCI-protected outlets; never grind wet without expert knowledge and grounding.
-
Wear hearing, dust, and eye protection; ensure all guards/shrouds are properly attached during operation.
-
Lift with proper technique; disconnect power before maintenance, accessory swaps, or cleaning.
-
Approach walls and edges carefully to avoid over-grinding baseboards or vertical surfaces.
Frequently Asked Questions
Q: How fast can the SEC-NG grind?
A: About 200–250 sq.ft./hr at a 1/32” depth using diamond Magna-Trap accessories.
Q: What power supply does it require?
A: Standard 115V (13A) or 230V (6.5A) wall outlets—no special wiring needed for most jobs.
Q: Which tooling options are compatible?
A: All Magna-Trap slide-on accessories, including Dyma-Dots, Dyma-Serts, Strip-Serts, Magna-Blades, and more.
Q: Is dust control available?
A: Yes—heavy-duty shroud and multi-vac port support effective, OSHA-compliant dust collection.
Q: Is this single or dual disc?
A: Single disc, 11” wide—optimized for maneuverability and residential productivity.
Conclusion
The EDCO SEC-NG Magna-Trap Single-Disc Floor Grinder offers unmatched reliability, efficiency, and professional results for concrete grinding, surface prep, and finishing. With user-friendly, wedge-less tooling, precise leveling, state-of-the-art dust control, and unbeatable power versatility, it’s the top choice for contractors, rental yards, and property pros who demand consistent, high-quality grinding across a variety of environments and job types.
