EDCO TG10-E 10 Inch Electric Turbo Grinder

EDCO TG10-E 10 Inch Electric Turbo Grinder

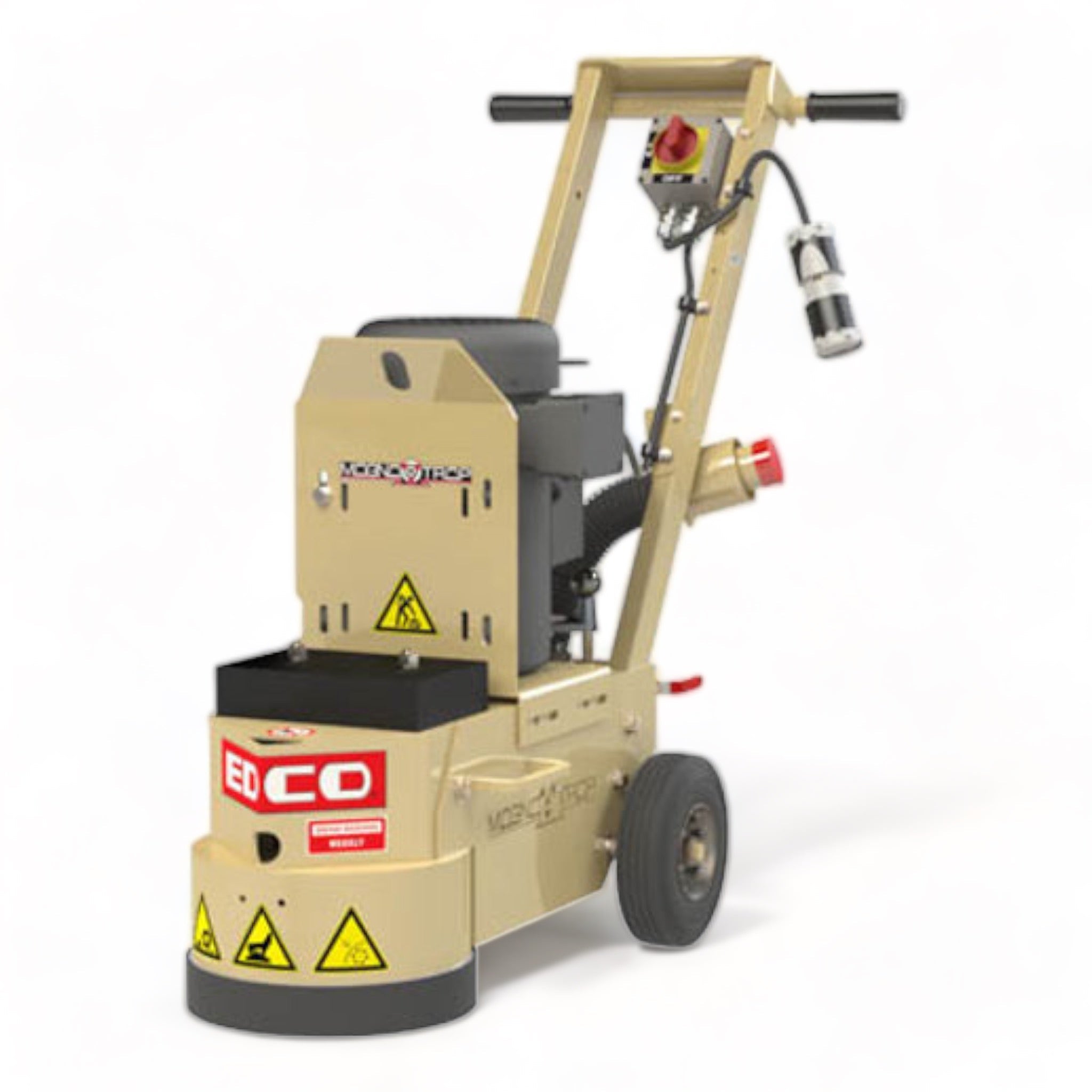

Turbo Grinders remove thick coverings, level uneven areas, and solve other industrial application problems. This 10" Turbo Grinder is EDCO's "beast". Its heavy-duty, aggressive and should be used for thick and hard coating removal, leveling tasks and applications that other EDCO Magna-Trap Grinders cannot perform.

FEATURES

• 10" Working width will grind approximately 400-500 sq. ft. per hour at 1/16" with diamond tooling
• Grind wet or dry
• Rounded shroud allows you to grind within 1/2" of any vertical surface and also provides better dust control
• Less torque on operator
• Tapered roller bearings have improved seals for longer life and less maintenance
• Adjust your grinder disc or multi-accessory plate with the rear wheel mounted level kit
• Easy access turn style knob
• Install different height diamond tooling and level them to ensure maximum productivity.

STANDARD RIGID HEAD IS IDEAL FOR

• Levelling uneven expansion joints, high spots, joint curls and bridge deck.
• Remove coatings, build-ups, resins and more.
• Grind rough concrete surfaces.

OPTIONAL FLEX HEAD IS IDEAL FOR

• Preparing a smooth, flat floor to receive a new coating, removing coatings.
• Grind rough concrete surfaces.

Technical Specifications

The EDCO TG10-E 10 Inch Electric Turbo Grinder is an industry-leading surface preparation tool designed to meet the needs of professionals seeking high-production solutions for grinding, leveling, and removing tough coatings or concrete imperfections. Engineered with precision and jobsite durability in mind, this grinder’s electric power, robust frame, and user-focused features make it a smart, eco-friendly option for contractors working in both indoor and outdoor environments.

Product Overview

This “beast” from EDCO offers a 10” working width and grinds approximately 400–500 square feet per hour at 1/16 inch per pass, making it four times faster than standard floor grinders for coating removal, slab leveling, joint curls, bridge decks, and more. The TG10-E supports both wet and dry grinding and features a rounded, vacuum-ready shroud that allows grinding as close as ½” to walls or vertical surfaces for comprehensive edge coverage and optimized dust containment.

Key Features

• 5 HP, 230V Electric Motor: Delivers high torque for demanding jobsite grinding tasks, supporting long runtimes and consistent power without emissions—ideal for enclosed or regulated environments.

• Rigid Head (Standard)/Flex Head (Optional): Rigid head is perfect for aggressive removal and leveling. For floors requiring a fine, smooth finish, the optional flex head follows slab contours.

• Multi-Tooling Disc Platform: Compatible with EDCO Magna-Trap Dyma-Dots, Dyma-Sliders, and other high-efficiency diamond or carbide accessories for flexibility across various materials and coatings.

• Rounded, Dust-Control Shroud: Permits edge grinding to within ½” of vertical surfaces while enhancing dust containment; pairs with 2”–3” industrial vacuums for OSHA-compliant operations.

• Leveling Kit with Rear Wheel Adjustment: Integrated rear wheel kit ensures all accessories are flush with the surface, enhancing productivity and preventing uneven wear.

• Tapered Roller Bearings: With advanced seals, these bearings provide longer service life and reduced maintenance compared to standard setups.

• Water Port: Facilitates wet grinding, essential for dust suppression and blade cooling on demanding or indoor projects.

• Low Operator Fatigue: The grinder is designed to deliver less torque to the user, reducing fatigue during extended use.

Performance Advantages

• High-Speed Surface Prep: Outpaces standard floor grinders, effectively removing thick coatings, mastics, sealers, epoxy, paint, and more, as well as leveling surface imperfections and curled joints.

• Edge-to-Edge Reach: Rounded shroud ensures coverage up to ½” from walls, reducing secondary edge grinding.

• Dust-Free Operation: OSHA-compliant with the use of multi-vacuum ports and shrouds, creating a safer, cleaner workspace.

• Eco-Friendly: Zero emissions with electric power—work safely in basements, hospitals, schools, and all indoor applications.

• Customizable Tooling: Multi-accessory disc makes swapping out EDCO’s full range of Magna-Trap diamonds and carbides a breeze for optimal performance on any substrate.

Common Applications

• Leveling expansion joints, slab high spots, and joint curls in industrial and commercial spaces

• Removing stubborn coatings, epoxy, mastic, build-ups, and waterproof membranes

• Grinding bridge decks, parking garages, airport runways, and warehouse floors

• Surface preparation for overlays, re-slabs, densifiers, stain, or polish

• Edge grinding up to walls, columns, or other obstacles

Maintenance Tips

• Pre-Use: Inspect the grinding disc, tighten all bolts, and check power cord for wear. Ensure shroud and vacuum hose are secured.

• After Each Use: Clean dust and debris from shroud, disc, and bearings. Wipe down frame, check rear wheel level kit, and lubricate moving parts.

• Weekly: Remove belt cover to inspect belt tension—adjust as needed by moving motor mount (see operator’s manual for correct tension method). Replace all belts together, not individually.

• Bearings: Lubricate head assembly bearings at regular intervals with quality grease (see manual for schedule). Inspect for vibration, unusual sounds, or overheating.

• Vacuum System: Clean or replace filters regularly; keep hose connections tight and inspect for clogs.

• Power Cord: Use only the recommended gauge and length to prevent voltage drops, overheating, or motor strain.

Safety Guidelines

• Use GFCI outlets and heavy-gauge cords for any wet or damp conditions.

• Never operate with missing or insecure blade guards/shrouds.

• Wear ANSI-rated goggles, dust mask, ear protection, gloves, and steel-toed boots.

• Regularly inspect all fasteners, wheels, and the leveling kit for safe operation.

• Always unplug the machine before performing any maintenance.

Frequently Asked Questions

Q: What is the max area coverage per hour?
A: Expect 400–500 sq. ft./hr at 1/16” removal per pass, depending on concrete hardness and accessory choice.

Q: Can this grinder be used indoors?
A: Yes. Its electric powertrain is emissions-free, and paired with vac dust collection and water port, it’s ideal for indoor/sensitive environments.

Q: Can it grind wet and dry?
A: Absolutely—integrated water port for wet grinding, or attach industrial vacuum for efficient dry dust control.

Q: How often should belts or bearings be serviced?
A: Check tension and lubricate bearings as per the operator’s schedule; always replace belts as a complete set, not individually.

Q: What accessories are available?
A: Accepts Magna-Trap Dyma-Dots, Dyma-Sliders, carbides, and more—so you can remove coatings, level, or polish as needed.

Conclusion

For high-productivity, low-emission grinding and removal, the EDCO TG10-E 10 Inch Electric Turbo Grinder is the top choice for commercial, industrial, and specialty contractors. Its robust design, versatile tooling options, dust-control features, and edge-to-edge grinding capacity deliver measurable jobsite results—proving this machine earns its place at #1 on every concrete contractor’s list for serious surface prep and restoration work.
