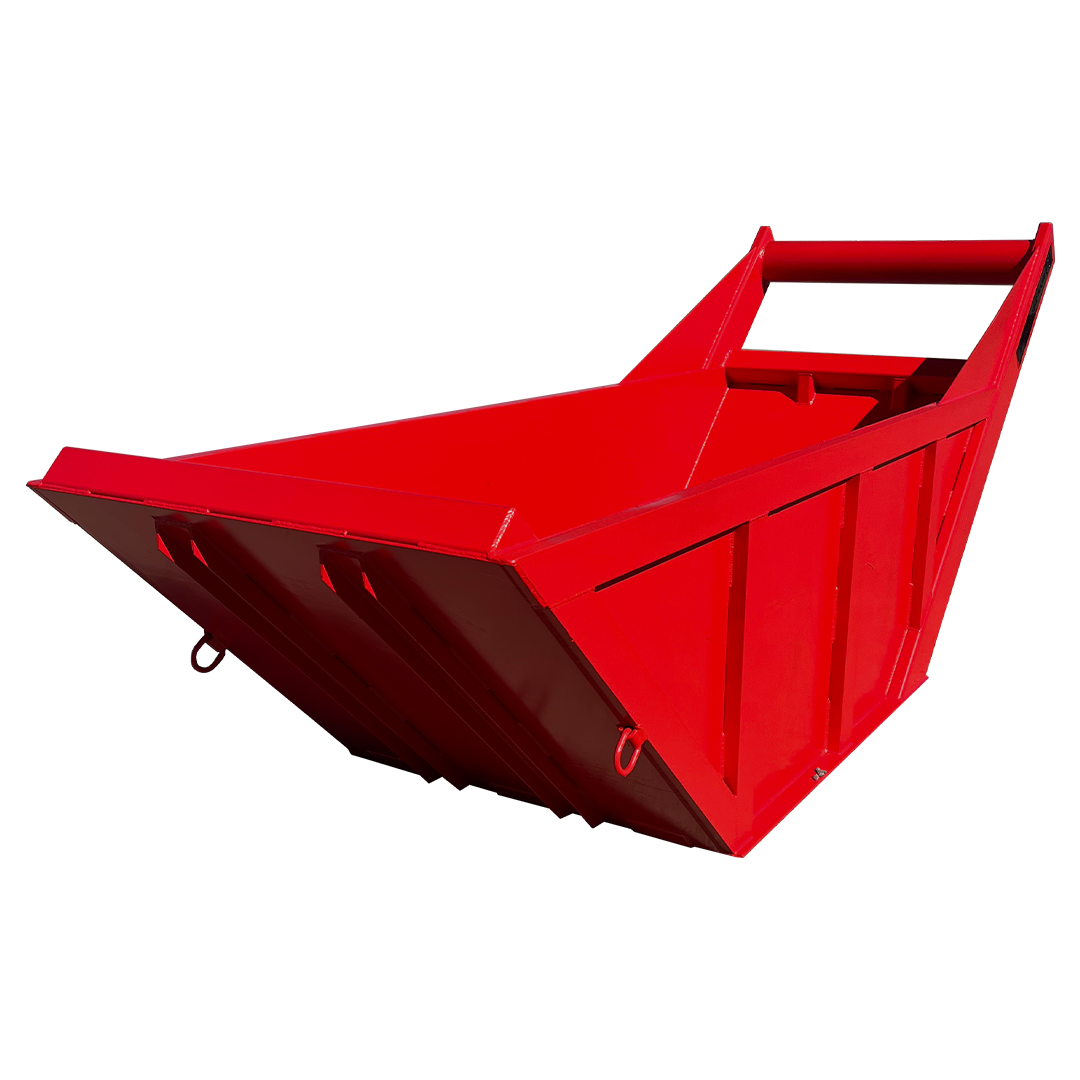

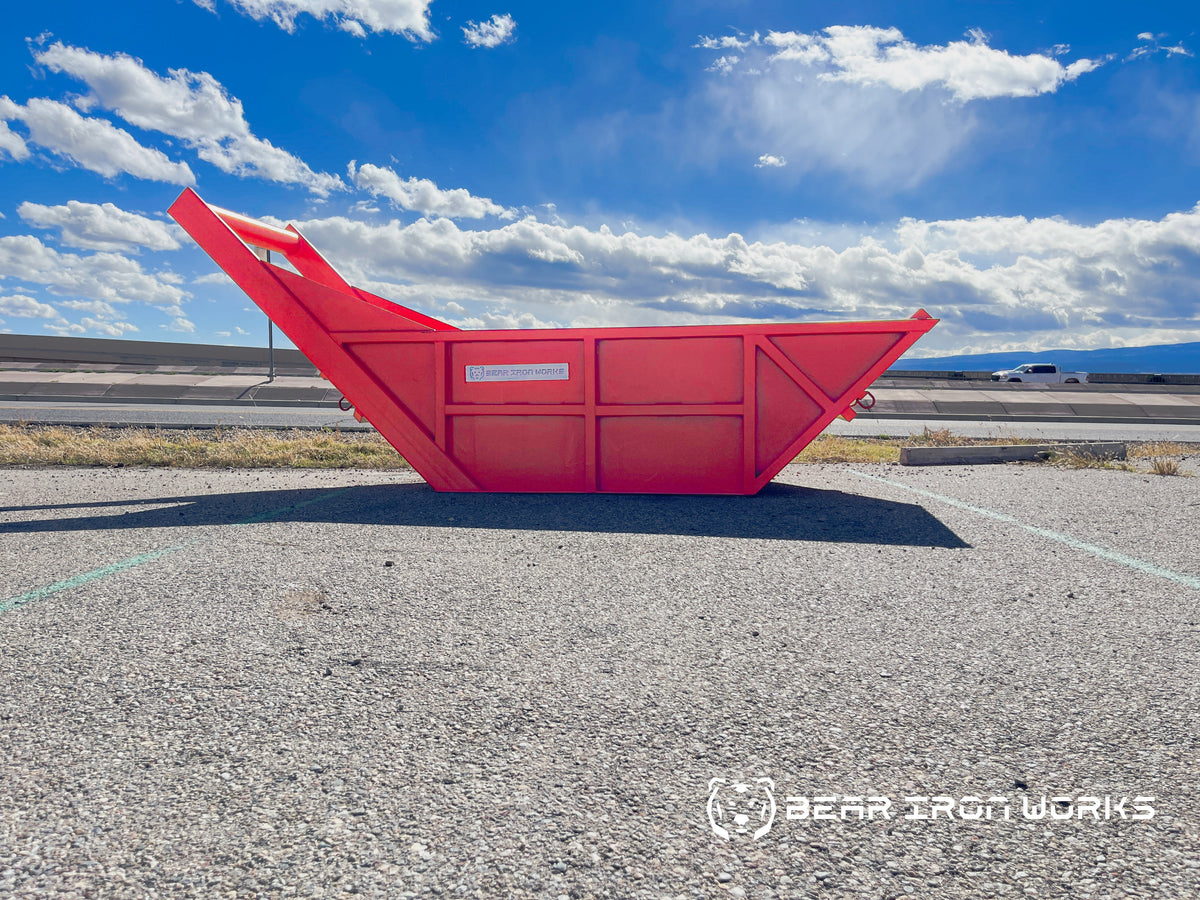

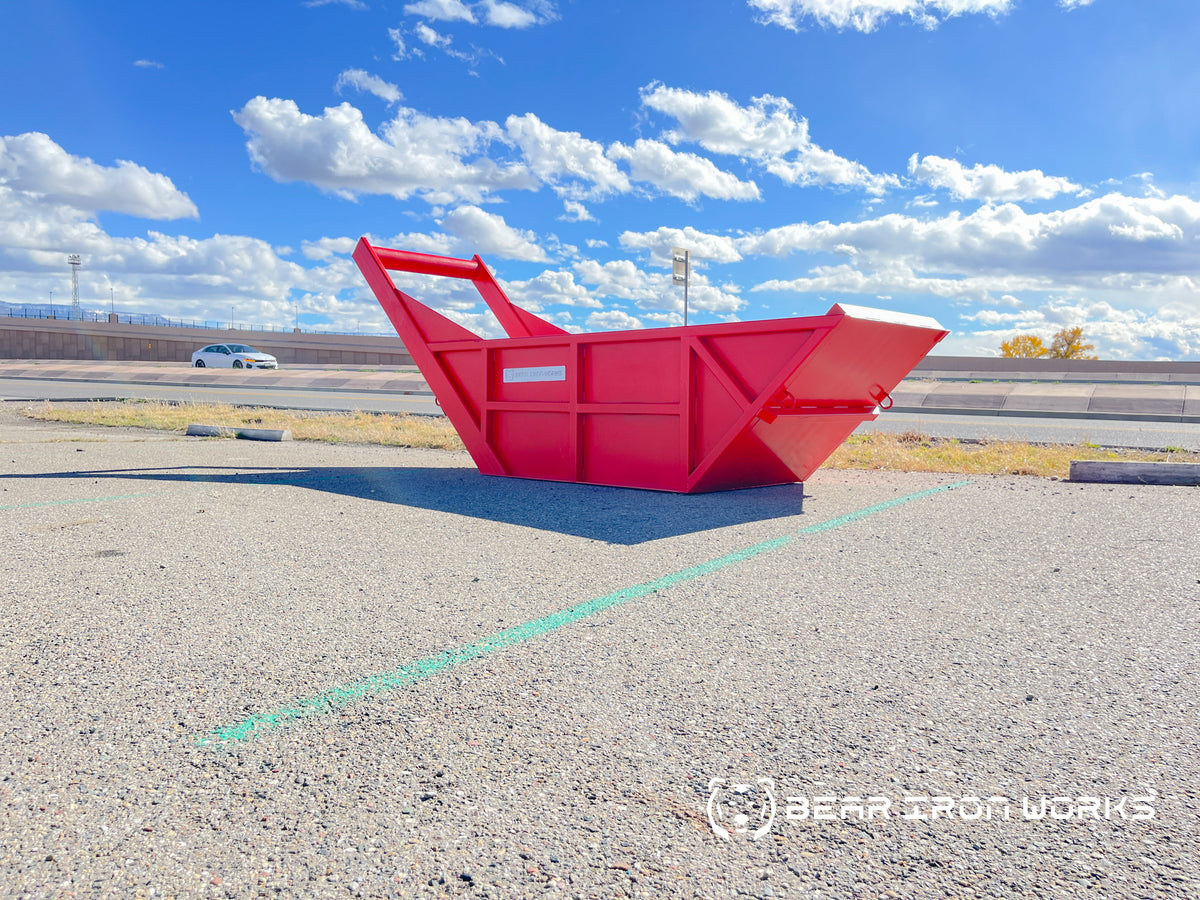

Bear Iron Works 3 CY Bedding Box for Backhoes & Excavators

The Bear Iron Works 3 CY Bedding Box is a heavy-duty material containment solution built for trenching, utility installation, excavation, and general construction applications. Designed for backhoes and mid-size excavators, it keeps bedding sand and other bulk materials close to the trench so operators can work efficiently as the job progresses.

With approximately 3.1 cubic yards of actual capacity, a 43-inch internal width, and a reinforced steel structure, the 3 CY Bedding Box bridges the gap between Bear Iron Works’ smaller compact-equipment boxes and its larger high-volume contractor models.

During trenching operations, bedding material can be delivered into the box from a staging area, while the excavator or backhoe removes only the amount needed for pipe installation. The box can then be repositioned along the trench as work progresses, reducing unnecessary trips to material stockpiles and helping keep loose bedding material contained.

Bear Iron Works reinforces the 3 CY model for demanding daily use with a fully gusseted neck and frame, double-pass welded structural members, a fish-plated underside designed to withstand dragging, and D-rings for securing and handling the box.

In addition to bedding sand, the box can be used to contain gravel, rock, soil, topsoil, and other bulk construction materials.

Which model should you choose?

1 CY Bedding Box: Best for mini excavators, confined jobsites, smaller utility work, and applications where compact size is important.

2 CY Bedding Box: Offers a wider 54-inch interior for grading buckets, landscaping, sidewalks, subgrade work, and larger compact equipment.

3 CY Bedding Box: Choose the 3 CY for mid-size excavation and trenching applications using backhoes or excavators in approximately the 15,766–22,451 lb range.

5 CY Bedding Box: Best for contractors requiring substantially more material capacity for general construction, utility trenching, and larger excavators.

7 CY Bedding Box: Designed for larger excavation projects and high-volume bedding or material-staging applications.

Features

• 3.1 CY Actual Capacity: Provides increased material capacity for mid-size trenching and excavation operations.
• Designed for Backhoes & Excavators: Suitable for most backhoes and excavators in approximately the CAT 306–CAT 310 size range.

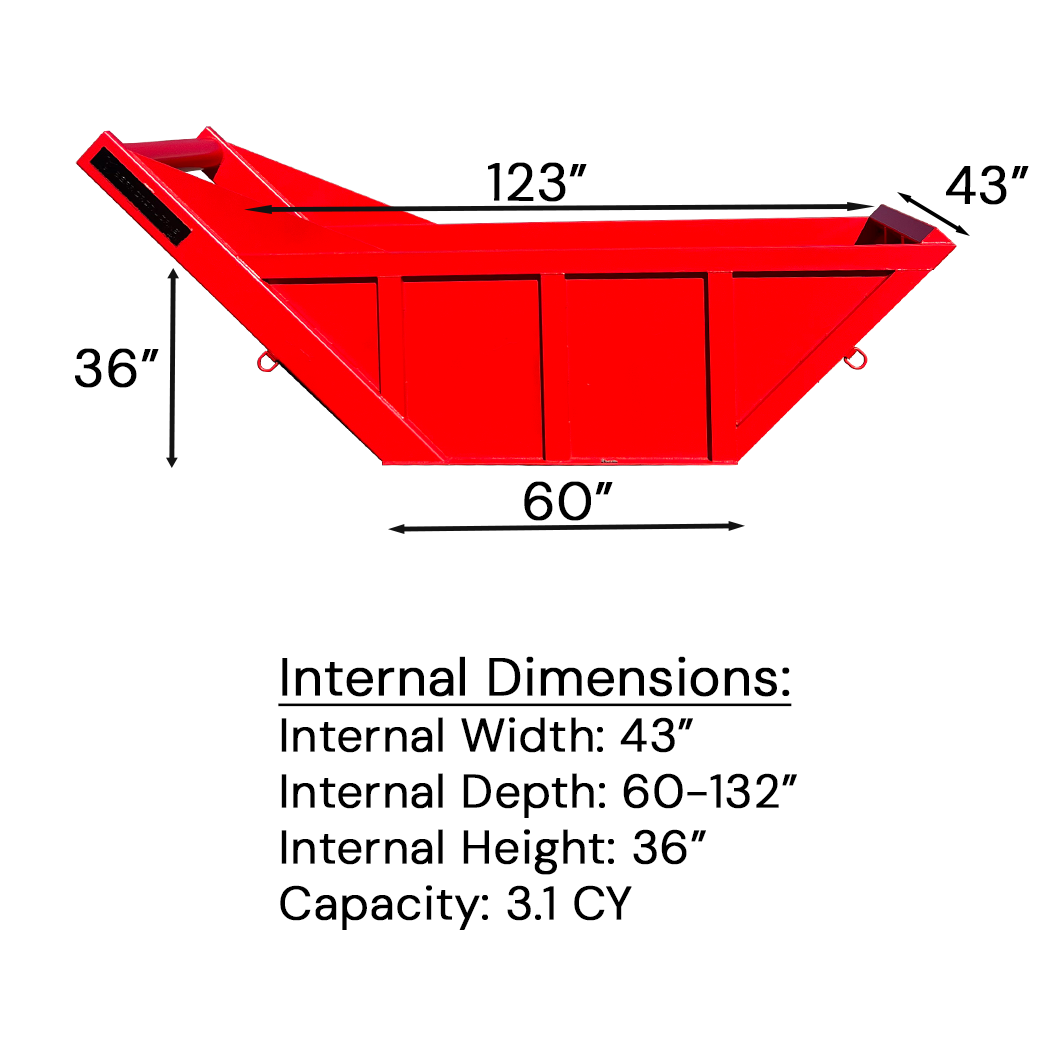

• 43-Inch Internal Width: Provides a practical working width for excavation and trenching buckets.

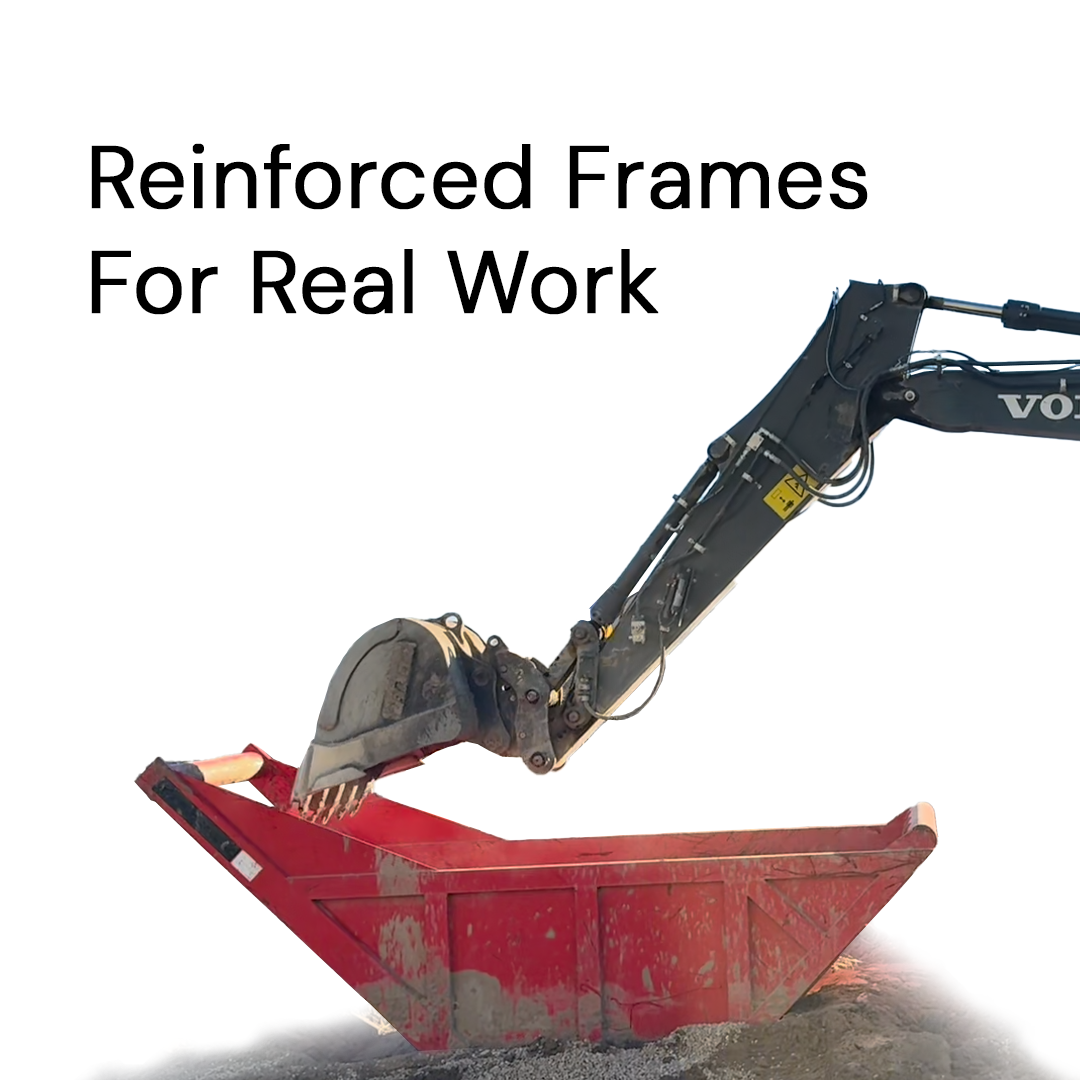

• Fully Gusseted Neck & Frame: Structural reinforcement helps withstand repeated pulling, loading, and repositioning.

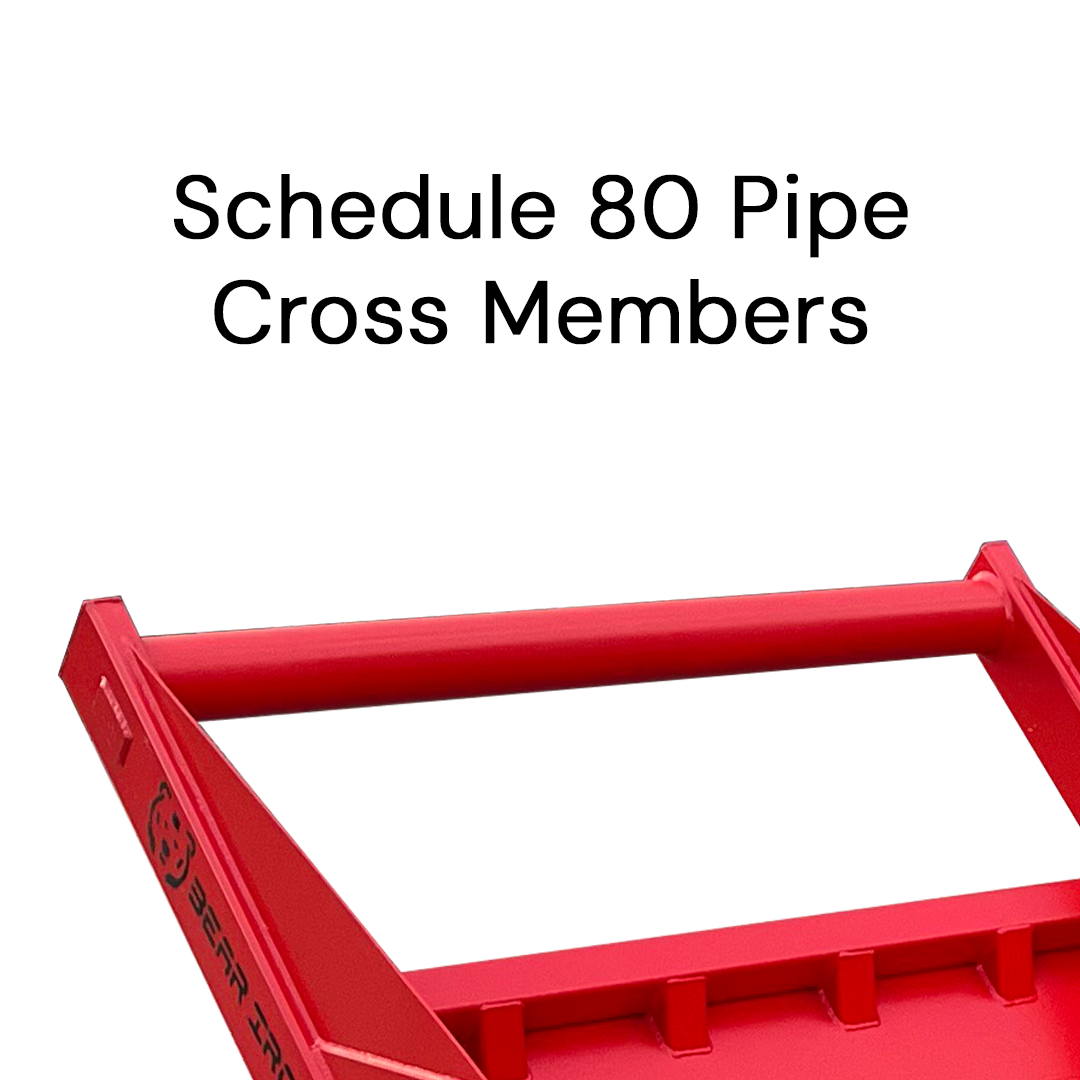

• Double-Pass Welded Cross Members: Designed to transfer loads efficiently through the structure and improve durability.
• Fish-Plated Underside: Reinforces the bottom surfaces exposed to wear while dragging the bedding box along the jobsite.

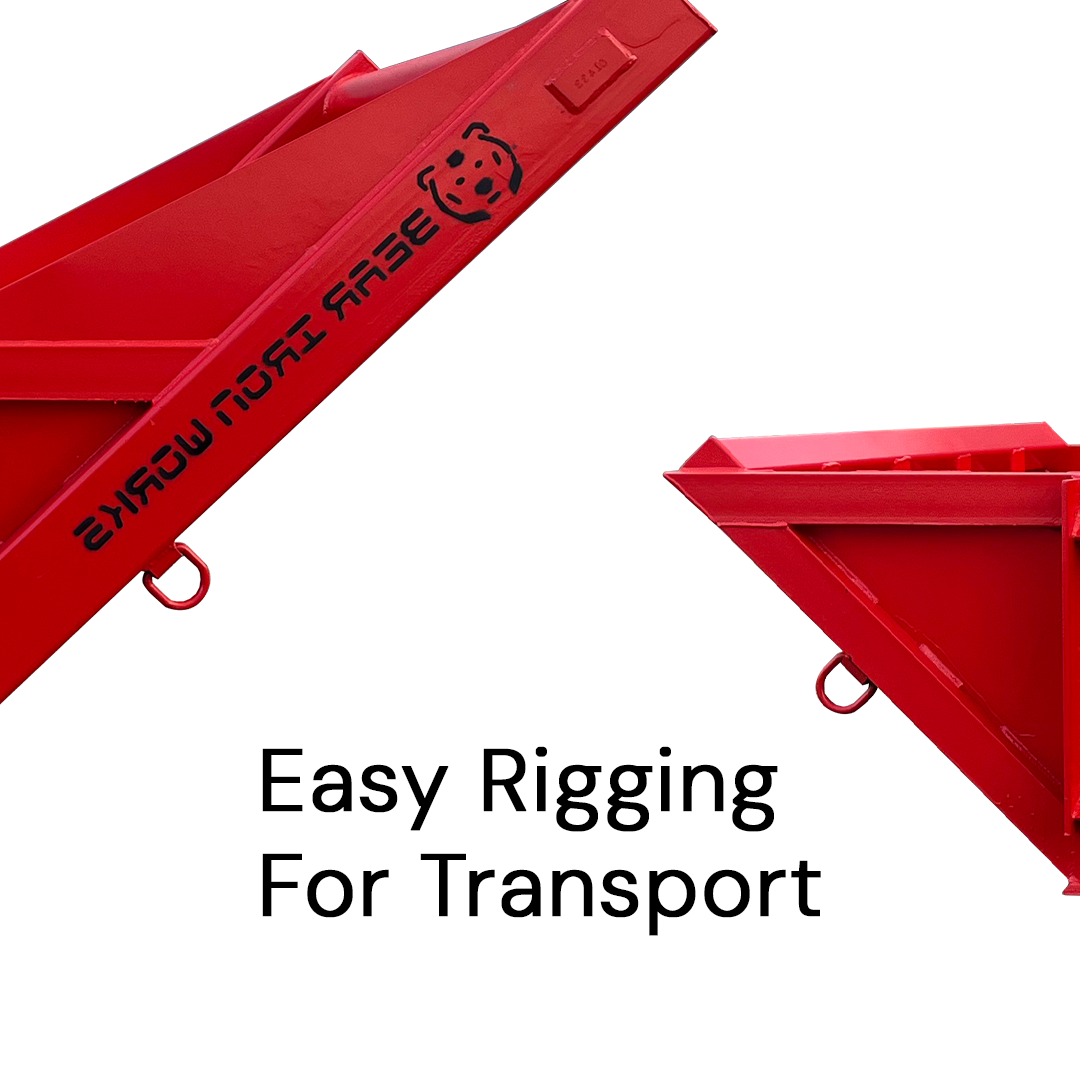

• Integrated D-Rings: Provides convenient points for securing, handling, and positioning the box.
• Heavy-Duty Steel Construction: Built for long-term contractor use in demanding excavation environments.
• Efficient Trenching Workflow: Keeps bedding material near the trench and allows the box to move with the excavation crew.
• Versatile Material Storage: Suitable for bedding sand, gravel, rock, soil, topsoil, and other jobsite materials.
• Customizable Construction: Bear Iron Works can accommodate custom dimensions or configurations for project-specific requirements.

Package Includes

• 1 × Bear Iron Works 3 CY Bedding Box
• Reinforced steel frame and neck
• Structural cross members
• Fish-plated underside
• Integrated D-rings

Specifications
