Bear Iron Works 7 CY Bedding Box for Large Excavators

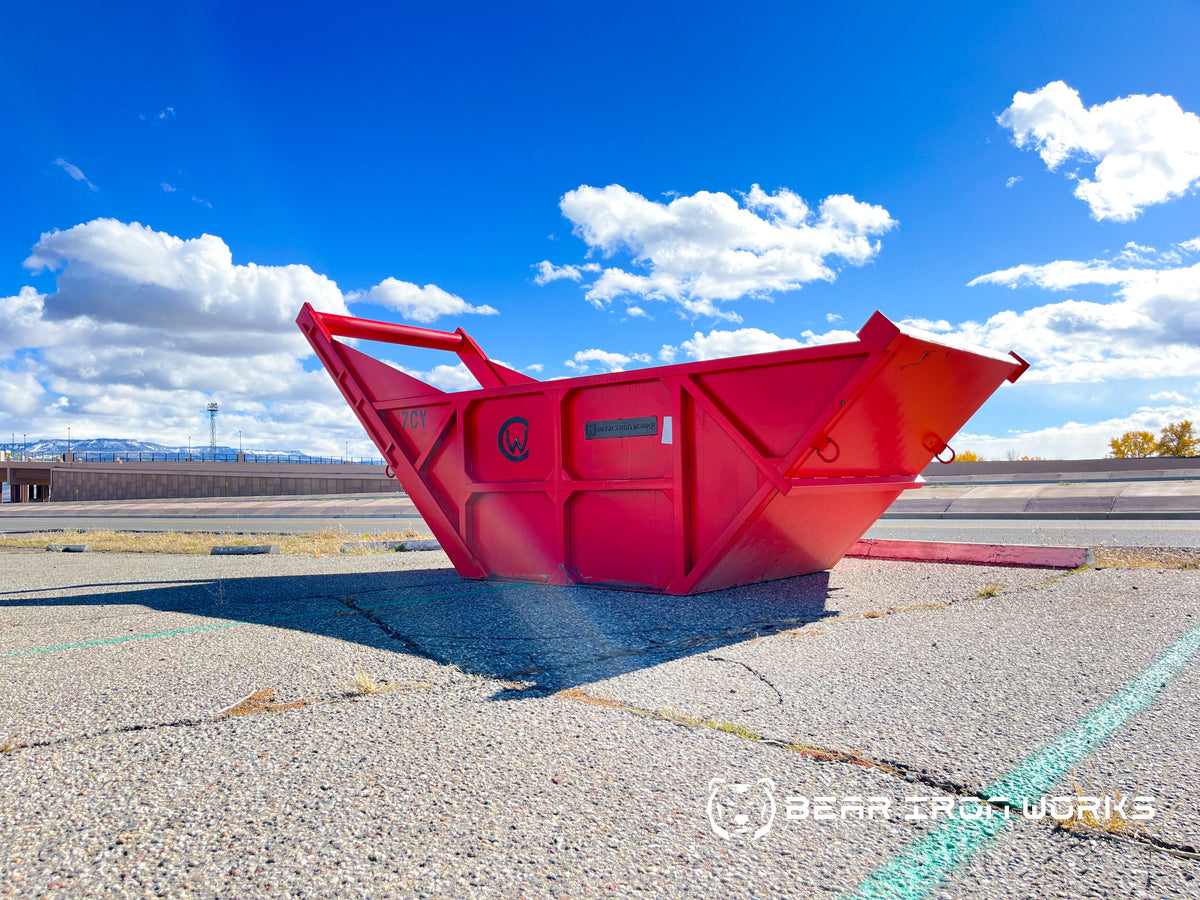

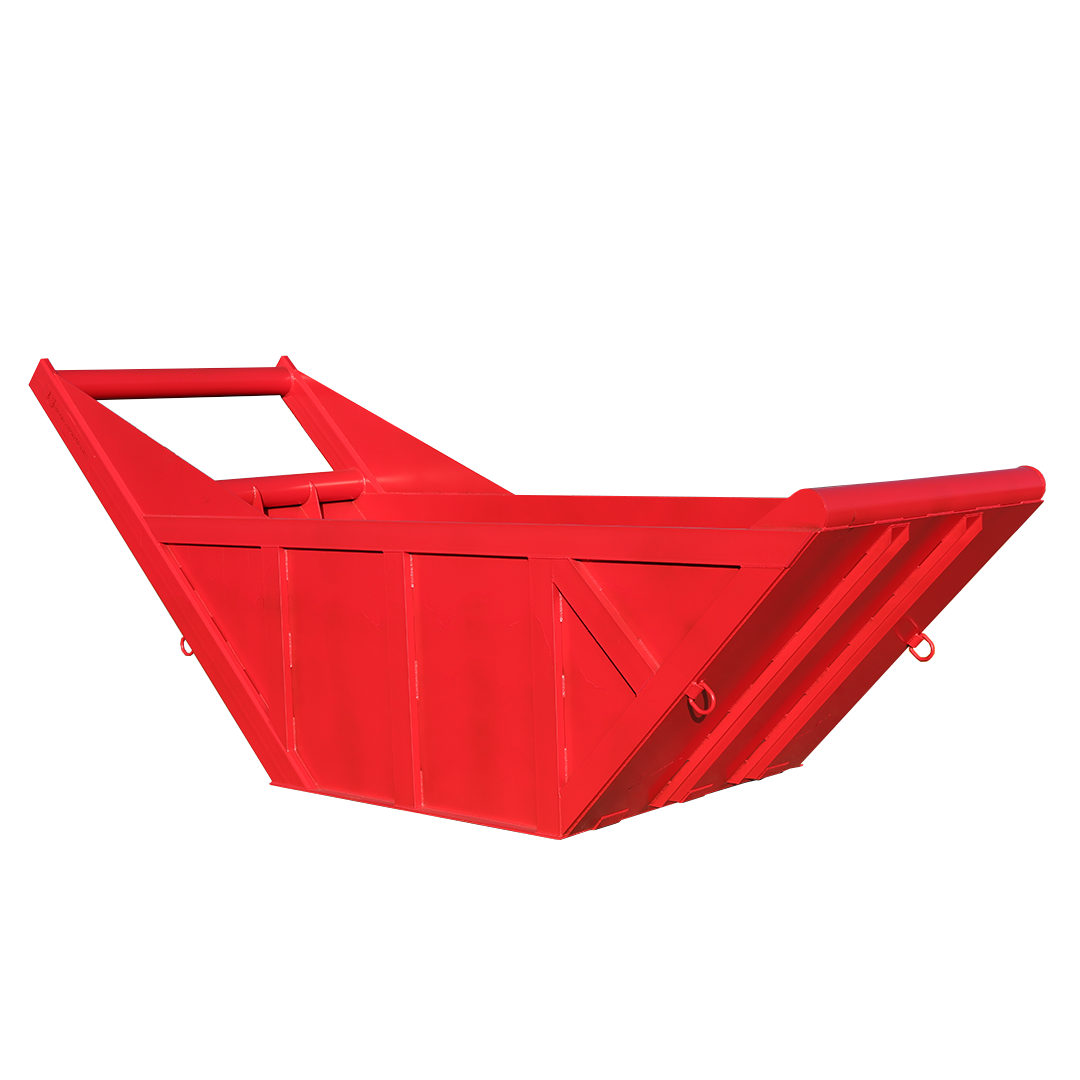

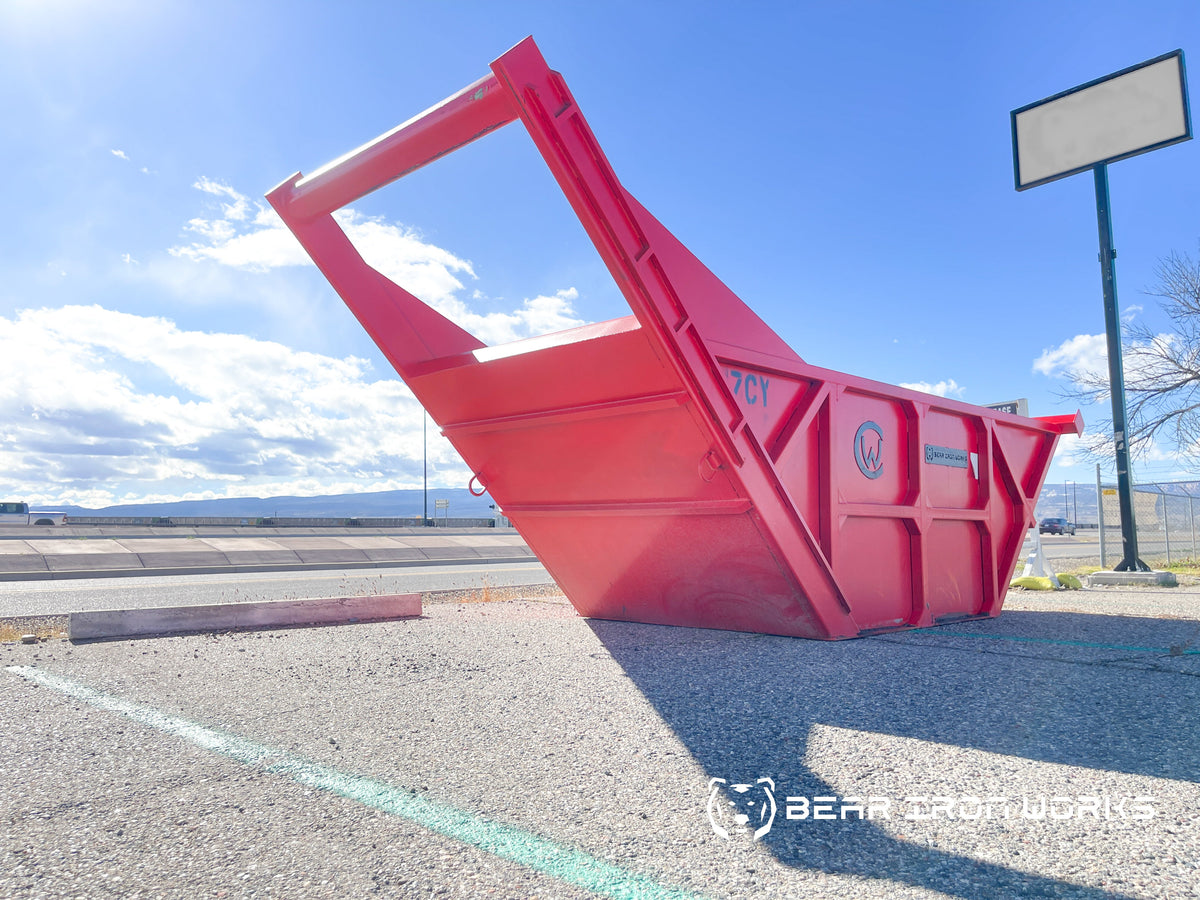

The Bear Iron Works 7 CY Bedding Box is a high-capacity material containment solution designed for larger excavation, utility construction, trenching, and material-staging applications. It is essentially a scaled-up version of Bear Iron Works’ 5 CY Bedding Box, retaining the same rugged structural approach while providing substantially more capacity for larger projects.

With approximately 7.4 cubic yards of actual capacity and a 60-inch internal width, the 7 CY model is designed for larger excavators in approximately the CAT 317 to CAT 325 class. It allows contractors to keep larger volumes of bedding sand, gravel, rock, or soil close to the active work area instead of repeatedly moving material from a distant staging pile.

During trenching operations, a loader or other suitable machine can fill the Bedding Box from the material staging area. The excavator then removes the required amount of material for pipe bedding or grading and can reposition the box along the trench as work progresses.

Bear Iron Works builds its Bedding Boxes around reinforced, field-tested construction, including Schedule 80 pipe cross members, gusseted structural sections, a fish-plated underside for resistance to dragging and wear, D-rings for securing and handling, and heavy-duty welded construction.

Which model should you choose?

1 CY Bedding Box: Best for mini excavators, smaller utilities, narrow trenches, and confined jobsites.

2 CY Bedding Box: Better for wider grading buckets, landscaping, subgrade work, and larger compact excavators.

3 CY Bedding Box: Designed for mid-size excavation and trenching using backhoes and excavators.

5 CY Bedding Box: Bear Iron Works’ general-purpose contractor model for standard construction and utility trenching.

7 CY Bedding Box: Choose the 7 CY for larger excavation projects, increased material staging capacity, and excavators in approximately the 40,200–62,800 lb range.

Bear also documents larger 9 CY and 12 CY Bedding Boxes for heavy civil, pipeline, and infrastructure-scale applications, but those are better treated as custom/quote products rather than standard online configurations.

Features

• 7.4 CY Actual Capacity: High-capacity design for larger trenching, excavation, and material-staging applications.
• Designed for Large Excavators: Recommended for excavators in approximately the 40,200–62,800 lb operating-weight range.

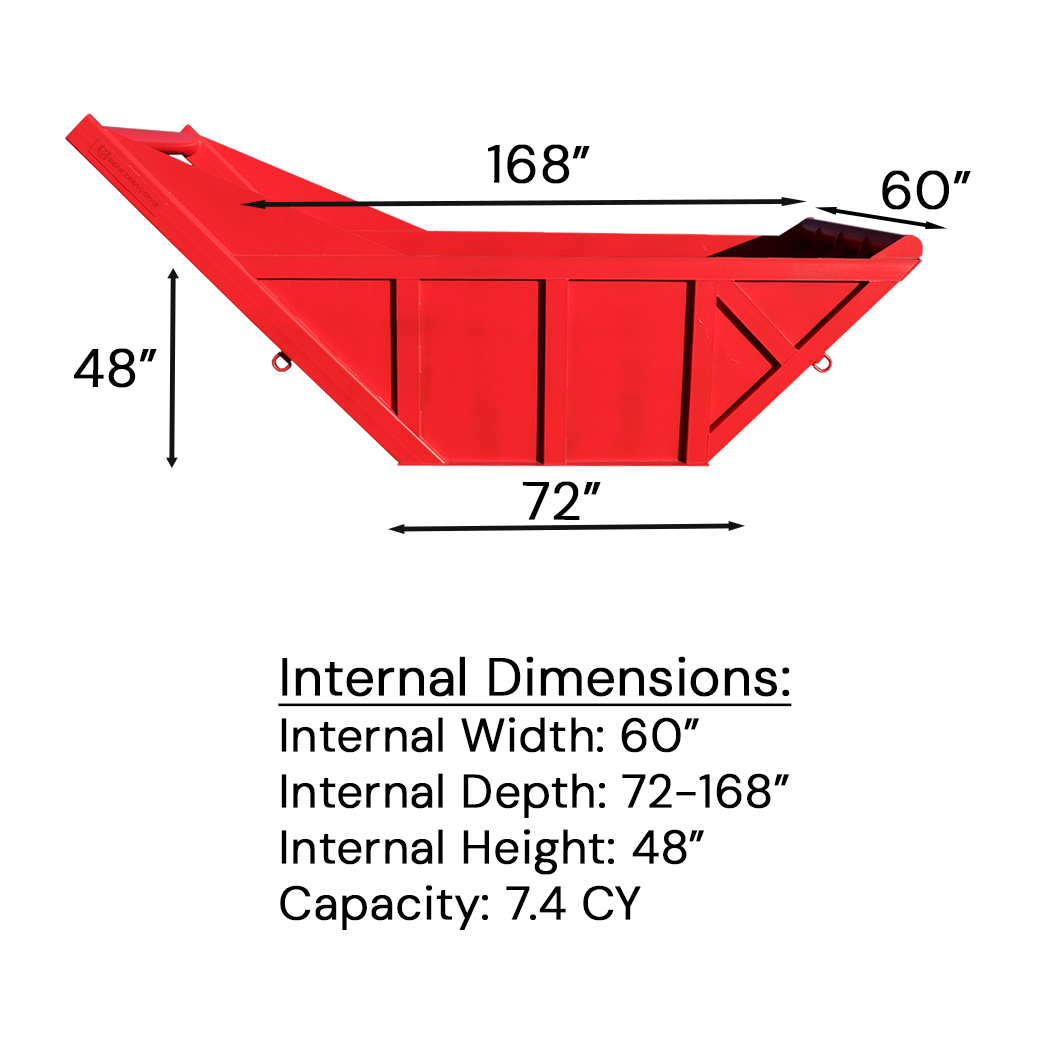

• 60-Inch Internal Width: Provides generous access for larger excavation and material-handling buckets.
• Scaled-Up 5 CY Design: Uses the same overall structural approach as Bear Iron Works’ popular 5 CY Bedding Box with additional volume.

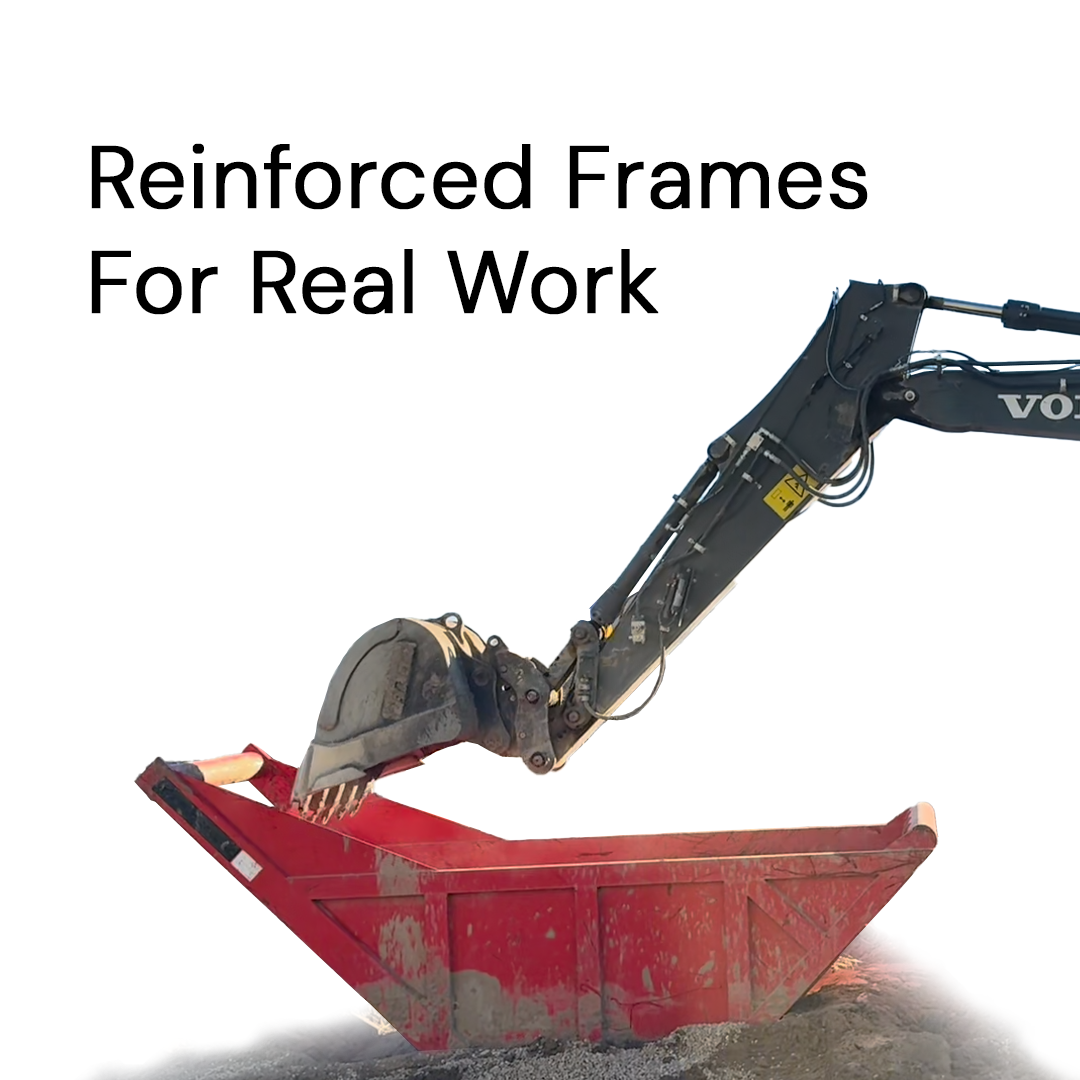

• Heavy-Duty Reinforced Frame: Built for repeated loading, pulling, and repositioning on demanding construction sites.
• Gusseted Structural Sections: Reinforces high-stress areas for increased durability.

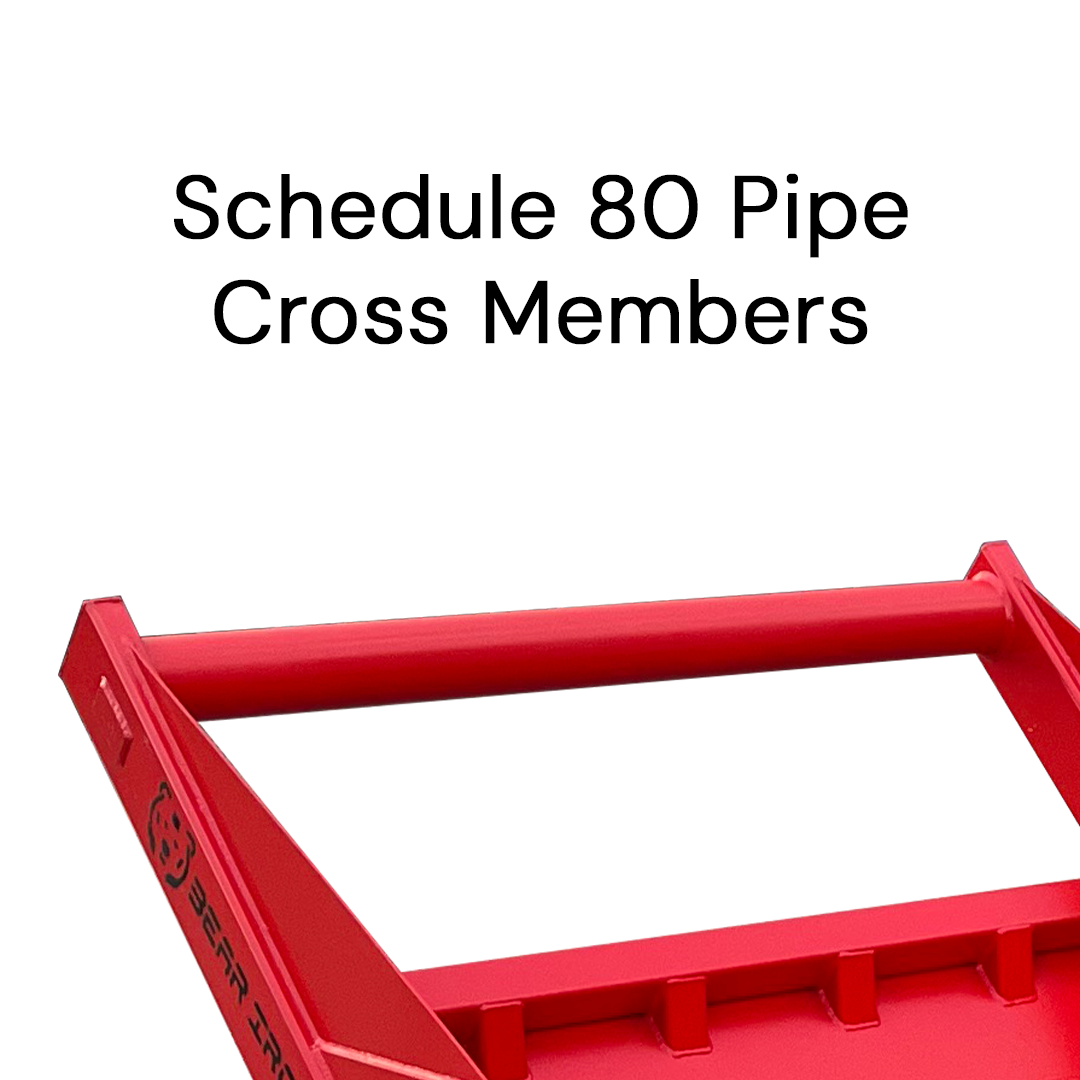

• Schedule 80 Pipe Cross Members: Provides additional structural strength across the box.
• Fish-Plated Underside: Helps protect high-wear surfaces when the box is dragged or repositioned.

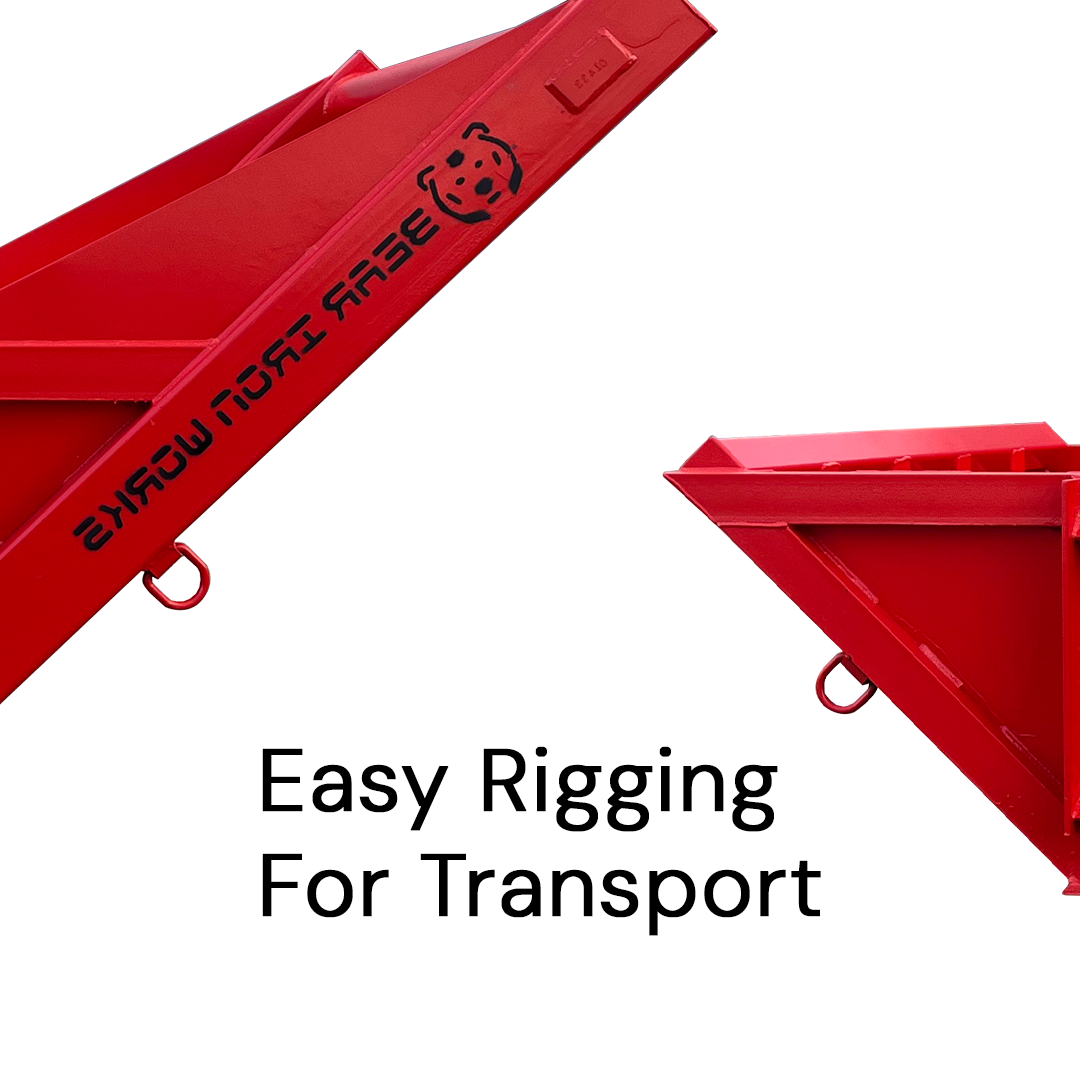

• Integrated D-Rings: Provides convenient securing and handling points.
• Precision Welded Construction: Designed to withstand torsional and peeling stresses during repeated jobsite use.
• High-Volume Material Staging: Keeps large quantities of bedding sand or other material positioned close to the active excavation.
• Versatile Material Containment: Suitable for bedding sand, gravel, rock, soil, topsoil, and other bulk construction materials.

Package Includes

• 1 × Bear Iron Works 7 CY Bedding Box
• Reinforced steel frame
• Gusseted structural sections
• Schedule 80 pipe cross members
• Fish-plated underside
• Integrated D-rings

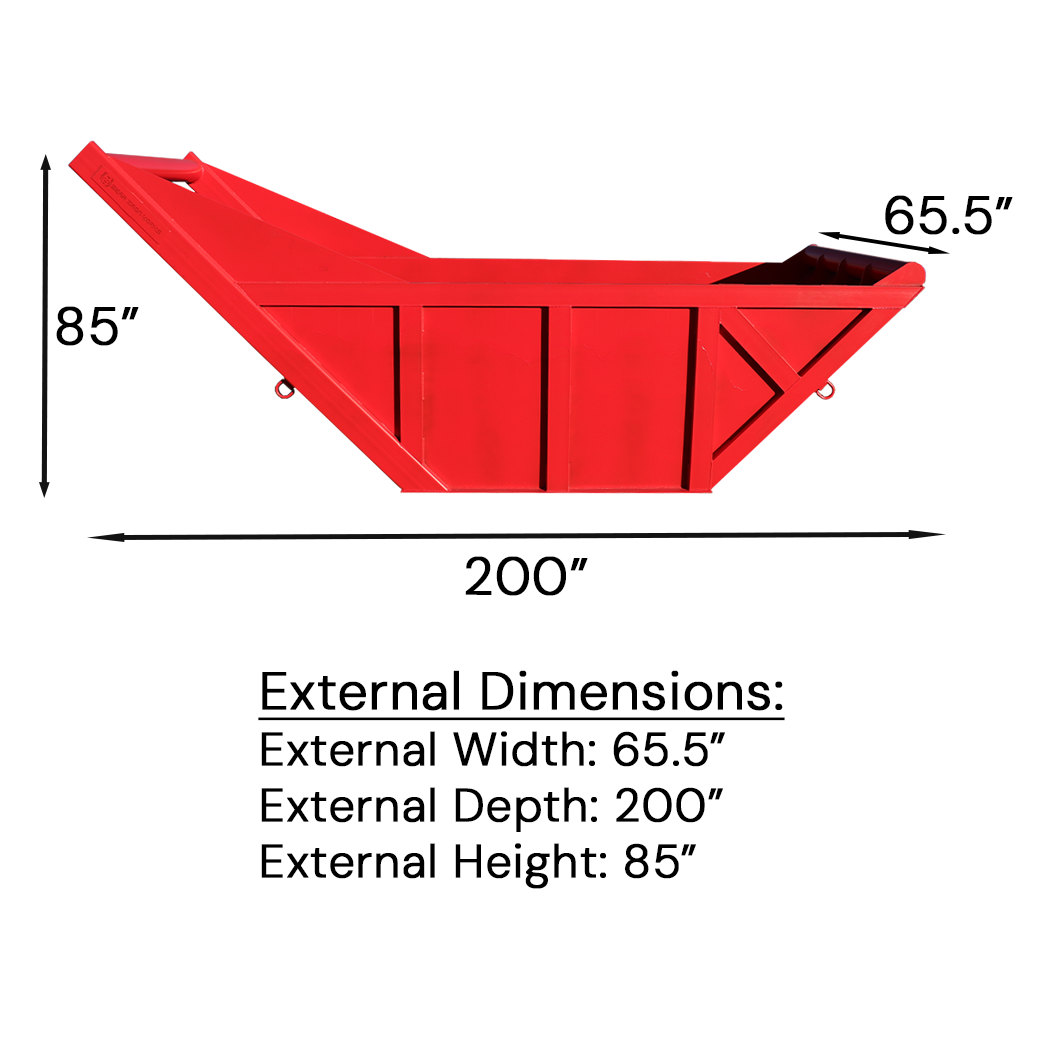

Specifications
