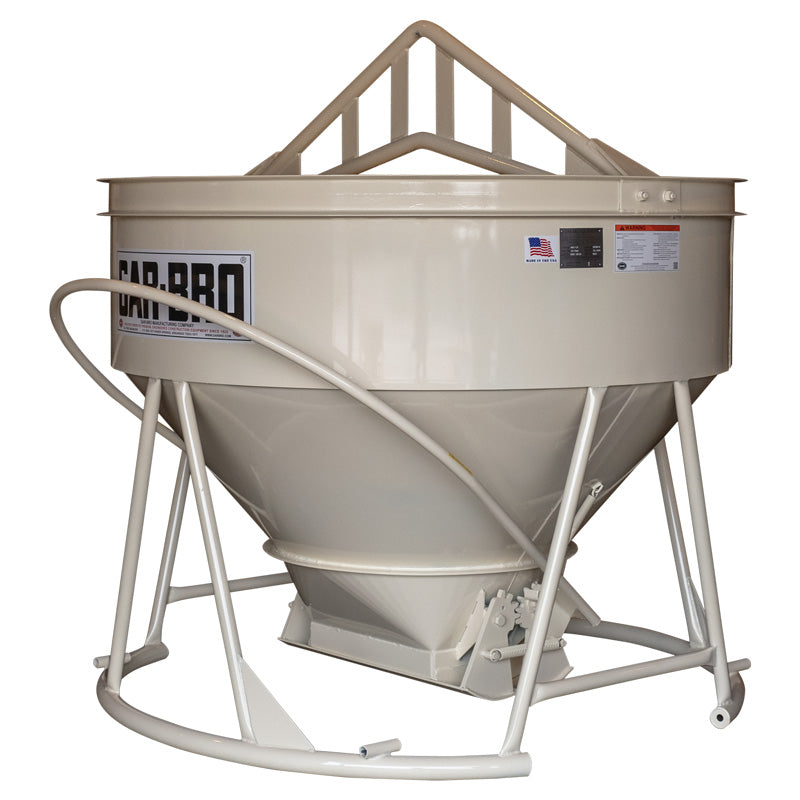

GAR-BRO LP-Series Lightweight Low-Profile Buckets with 15″ X 22″ Gate

The Gar-Bro Manufacturing LP Series Lightweight Low-Profile Buckets are engineered for contractors who need maximum concrete volume with reduced loading height

Featuring a low-profile design and a wide 15" × 22" double clamshell gate, these buckets provide excellent flow control while remaining lightweight and easy to charge.

Designed to meet or exceed ASME standards, LP Series buckets are ideal for elevated pours, restricted overhead clearance, and high-volume placements. The exclusive one-piece lifting bail minimizes top obstructions, speeding up loading and improving jobsite efficiency. These buckets are trusted by general contractors for their durability, control, and proven Gar-Bro reliability.

Which Model Should You Choose?

Choose your LP Series bucket based on required concrete volume and crane capacity:

• LP 1½–2 CY models – Ideal for mid-size pours with limited headroom

• LP 2½–3 CY models – Best balance of capacity and maneuverability

• LP 4–5 CY models – High-volume placement for large commercial or infrastructure pours

All models share the same low-profile design and gate system—selection comes down to capacity and lift requirements.

Features

• Low-Profile, High-Volume Design: Reduced loading height allows easier charging while maintaining large concrete capacity.

• 15" × 22" Double Clamshell Gate: Non-jamming, grout-tight, self-closing gate provides smooth, controlled discharge.

• Exclusive One-Piece Lifting Bail: Reduces obstructions at the bucket opening, speeding up loading operations.

• Fast-Acting Bail-Type Handle: Simple, responsive control for precise placement.

• Accessory-Ready Frame: Designed to accept optional side chutes, accordion hoppers, air-operated gates, and extension collars

Package Includes

• LP Series Low-Profile Concrete Bucket

• Integrated lifting bail

• 15" × 22" double clamshell gate

• Bail-type operating handle

Specifications
