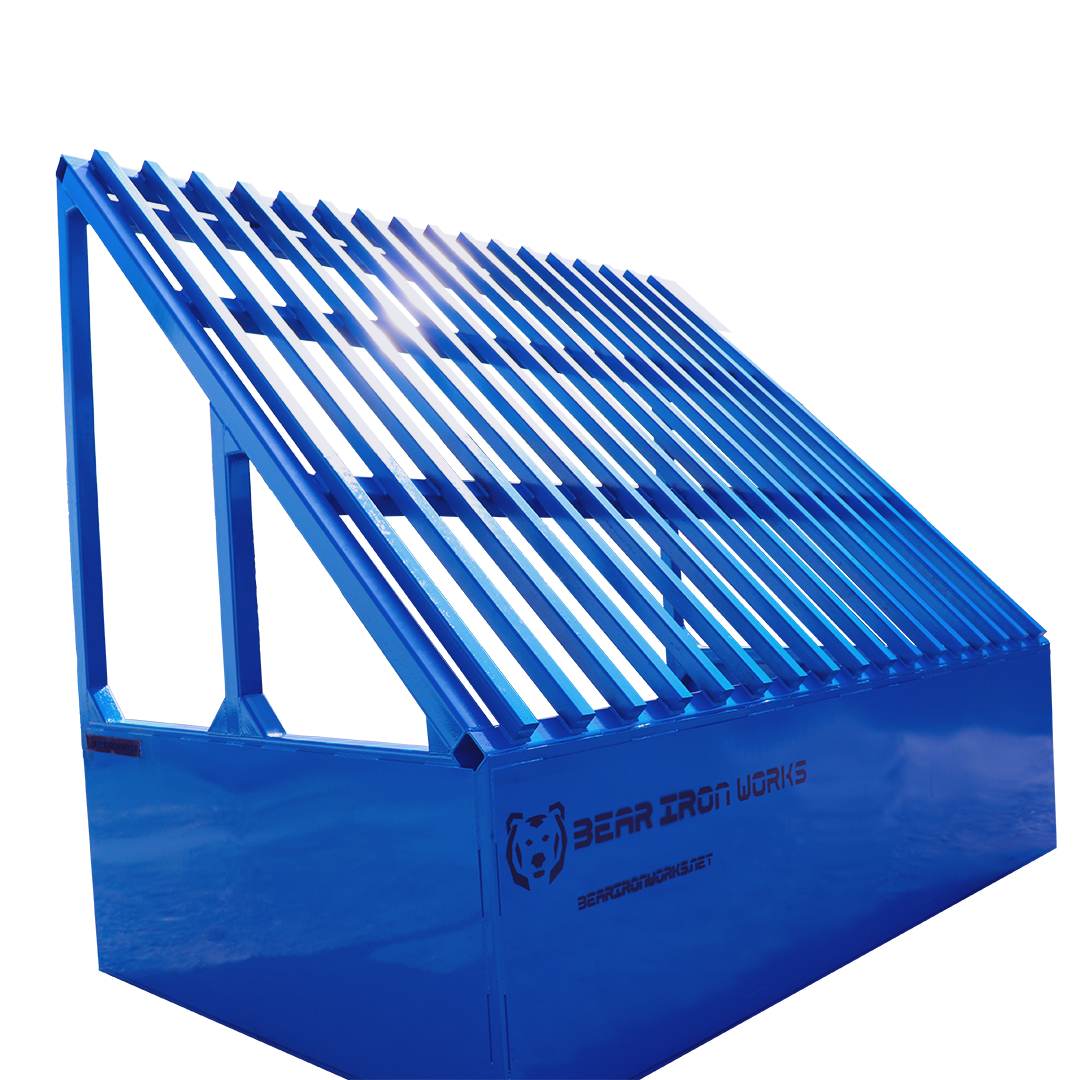

Bear Iron Works Papa Grizzly Rock Screen for Full-Size Loaders

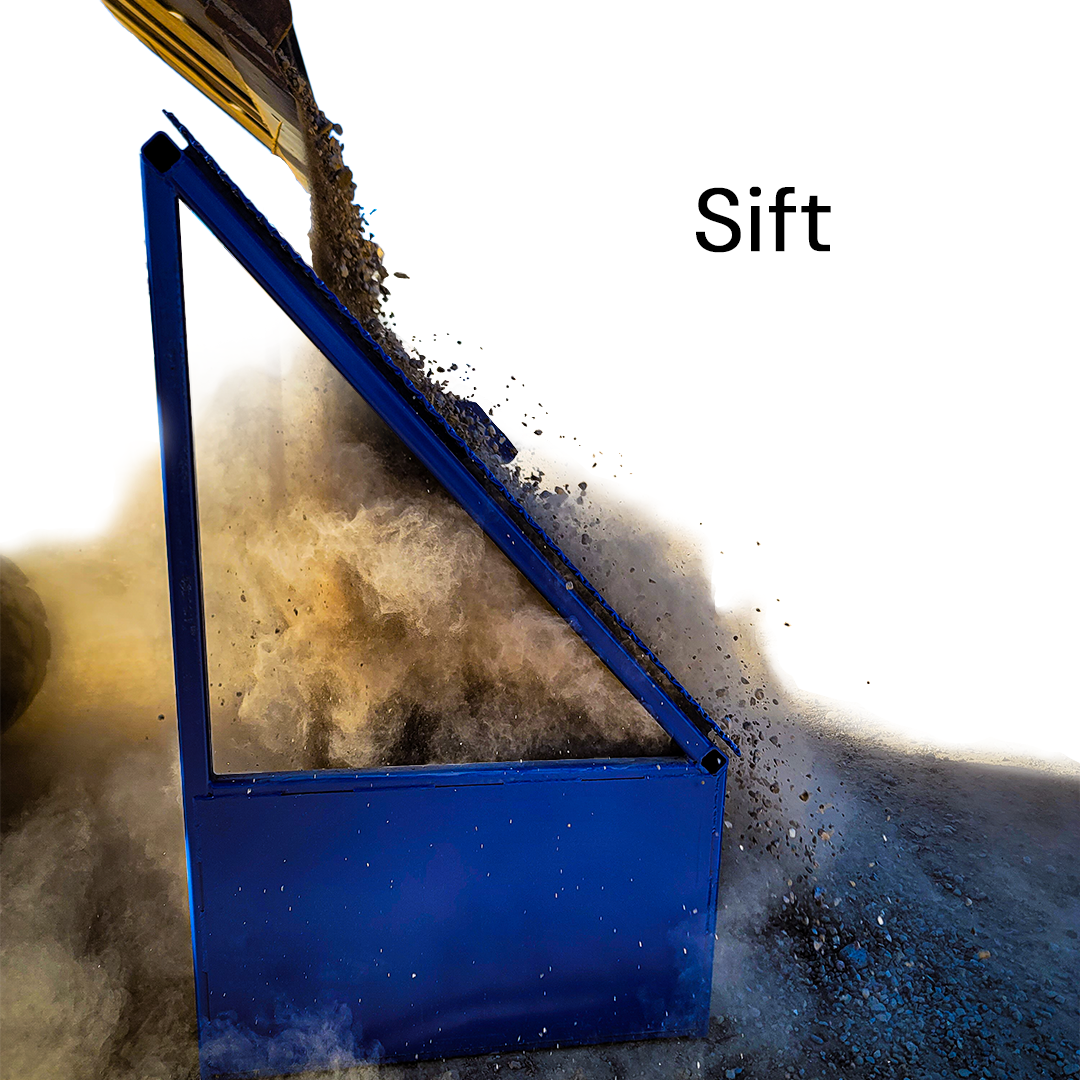

The Bear Iron Works Papa Grizzly Rock Screen is the largest standard production Grizzly in the Bear Iron Works lineup, engineered for full-size loaders and demanding material-screening applications.

With approximately 6.8 cubic yards of screening capacity, a 144-inch internal width, and a 3,300 lb operating weight, the Papa is designed for heavy civil construction, aggregate processing, quarry work, mining, recycled concrete, large rocks, riprap, scrap material, and other high-impact screening applications.

Bear Iron Works reinforces the Papa beyond its smaller Grizzly models. The screening deck uses heavy-duty solid steel bars, while the frame incorporates a double-header design, additional cross rails, and structural gusseting to withstand the impact generated by larger loaders and heavier material. Bear specifically identifies the Papa as its heavy-duty choice for industrial and aggregate producers.

The standard configuration uses 3-inch screen spacing, with 4-inch, 5-inch, and 6-inch spacing also available. For finer material separation, the Papa can be paired with Bear Iron Works' removable crusher-mesh screen system, allowing operators to process material down to much smaller sizes without replacing the main Grizzly.

Which model should you choose?

Koala: Best for smaller yard tractors and ride-on skid steers handling landscaping and lighter screening applications.

Growler: Designed for compact skid steers and utility tractors where more capacity is needed without moving into a full contractor-size screen.

Cub: Best for standard skid steers and general construction screening.

Mama: Designed for backhoes, larger tractors, and heavier mid-size construction applications.

Papa: Choose the Papa for full-size loaders, heavy civil projects, quarry and aggregate operations, mining, recycled concrete, riprap, large rocks, and high-volume material screening.

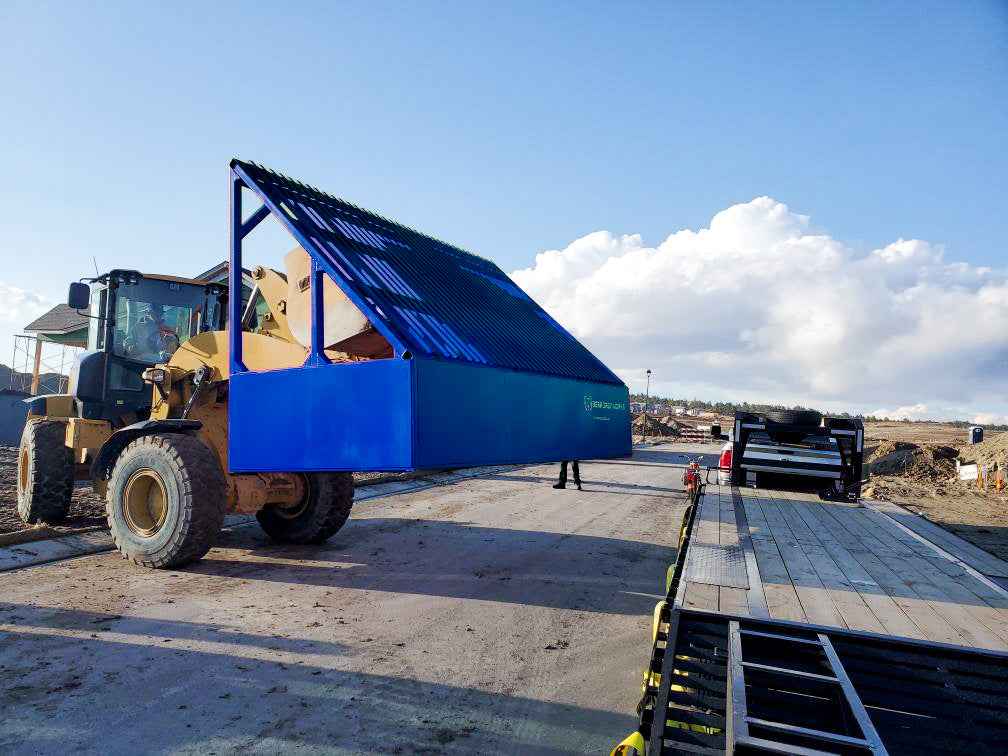

Bear's 2027 equipment reference places the Papa in the approximately 14,600–42,000 lb loader range, using the CAT 908 through CAT 950 class as reference equipment.

Features

• Heavy-Duty Loader Rock Screen: Purpose-built for full-size loaders and demanding industrial screening applications.

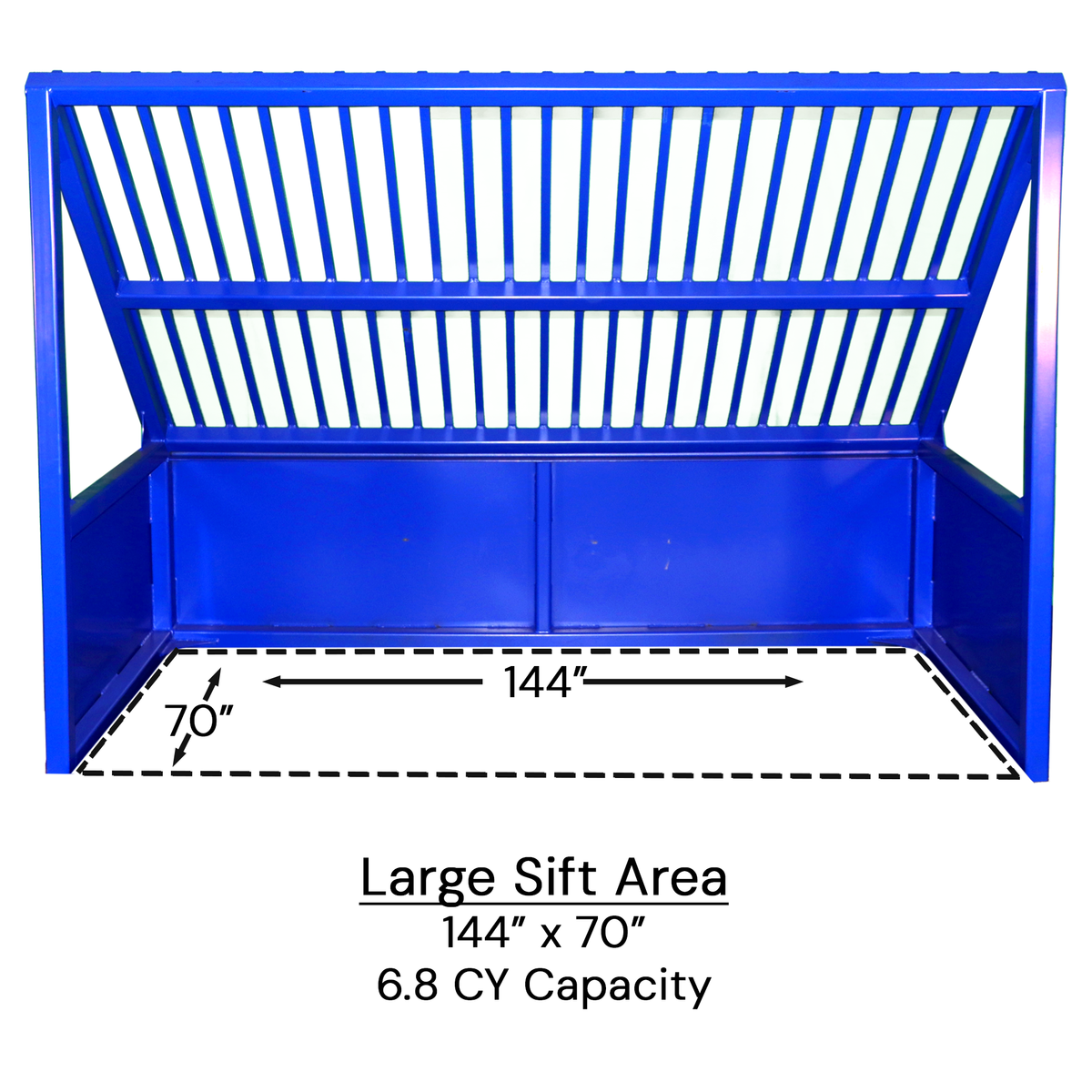

• 6.8 CY Actual Capacity: Provides the largest standard screening capacity in Bear Iron Works' Grizzly lineup.
• 144-Inch Internal Width: Accommodates large loader buckets and high-volume material handling.

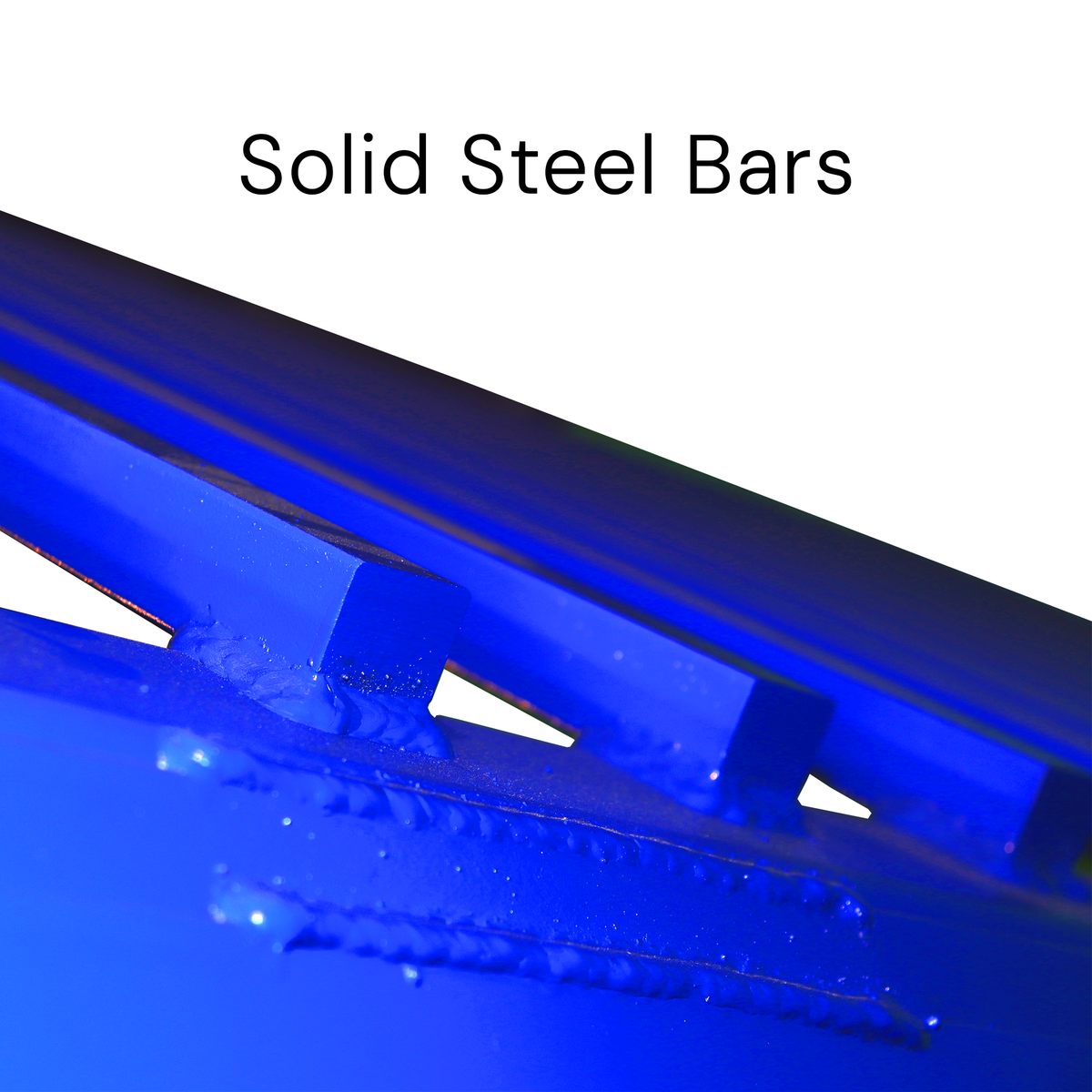

• Solid Steel Screening Bars: Heavy-duty rails are designed to absorb repeated impact from large rocks and aggregate.
• Reinforced Frame Construction: Double-header, cross-rail, and gusseted construction increases structural strength for severe-duty use.

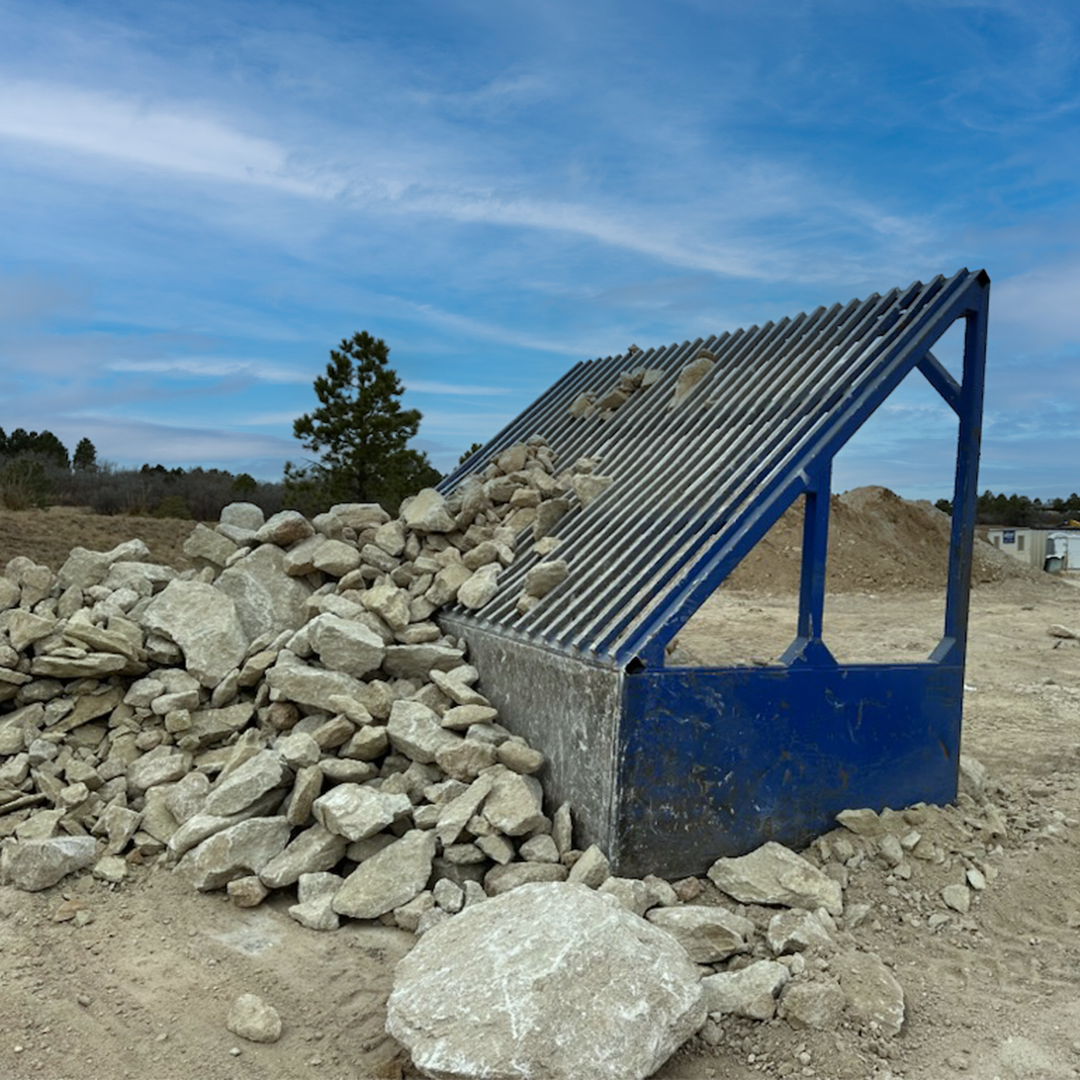

• Large Material Capability: Suitable for rocks, riprap, aggregate, recycled concrete, scrap material, and other oversized debris.

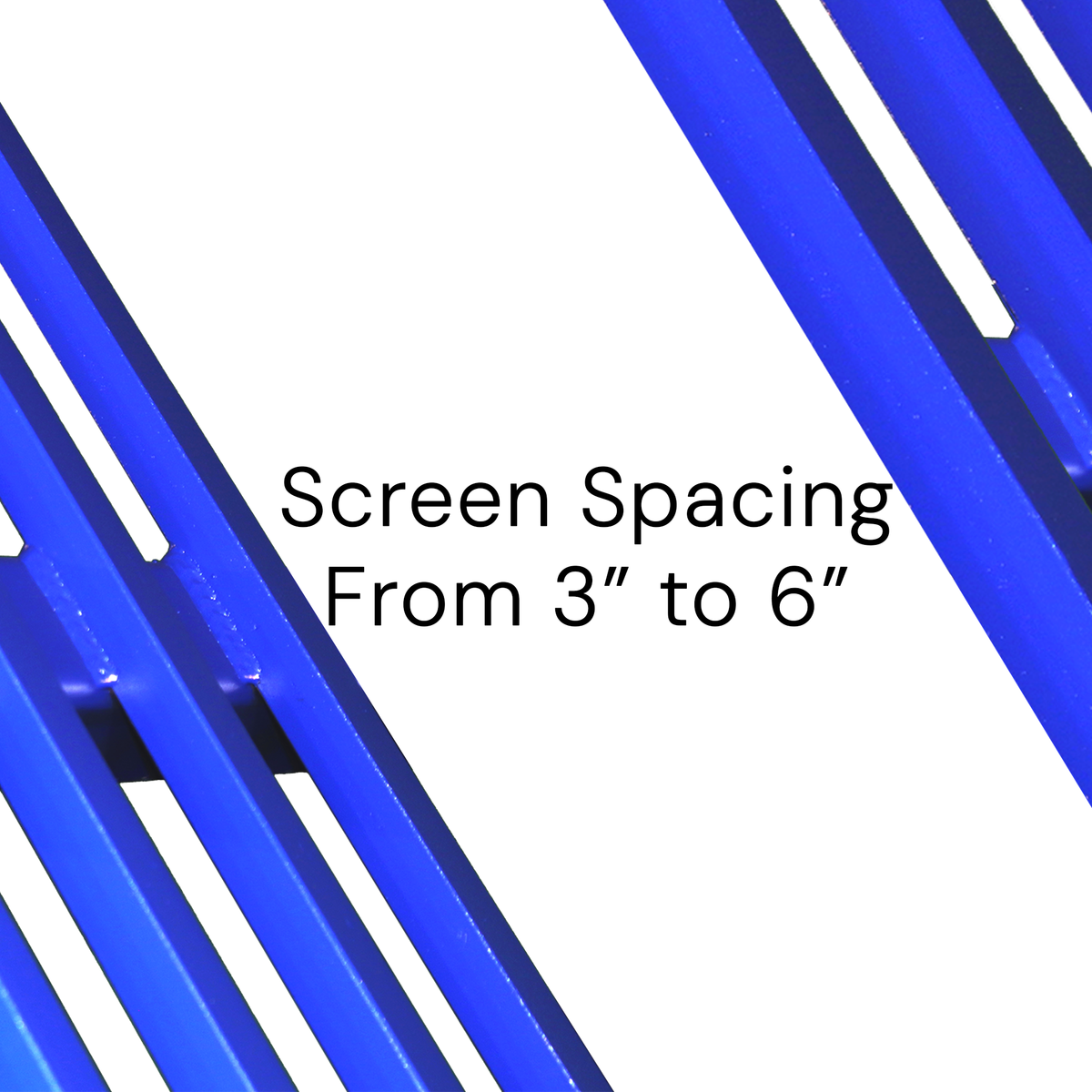

• Multiple Screen Spacings: Available with 3-inch, 4-inch, 5-inch, or 6-inch standard Grizzly spacing.
• Optional Fine Screening: Compatible with Bear Iron Works removable crusher-mesh screens for more precise sizing.
• Optional Vibrator System: A vibrator can be added to improve processing of wet, sticky, or fine material.

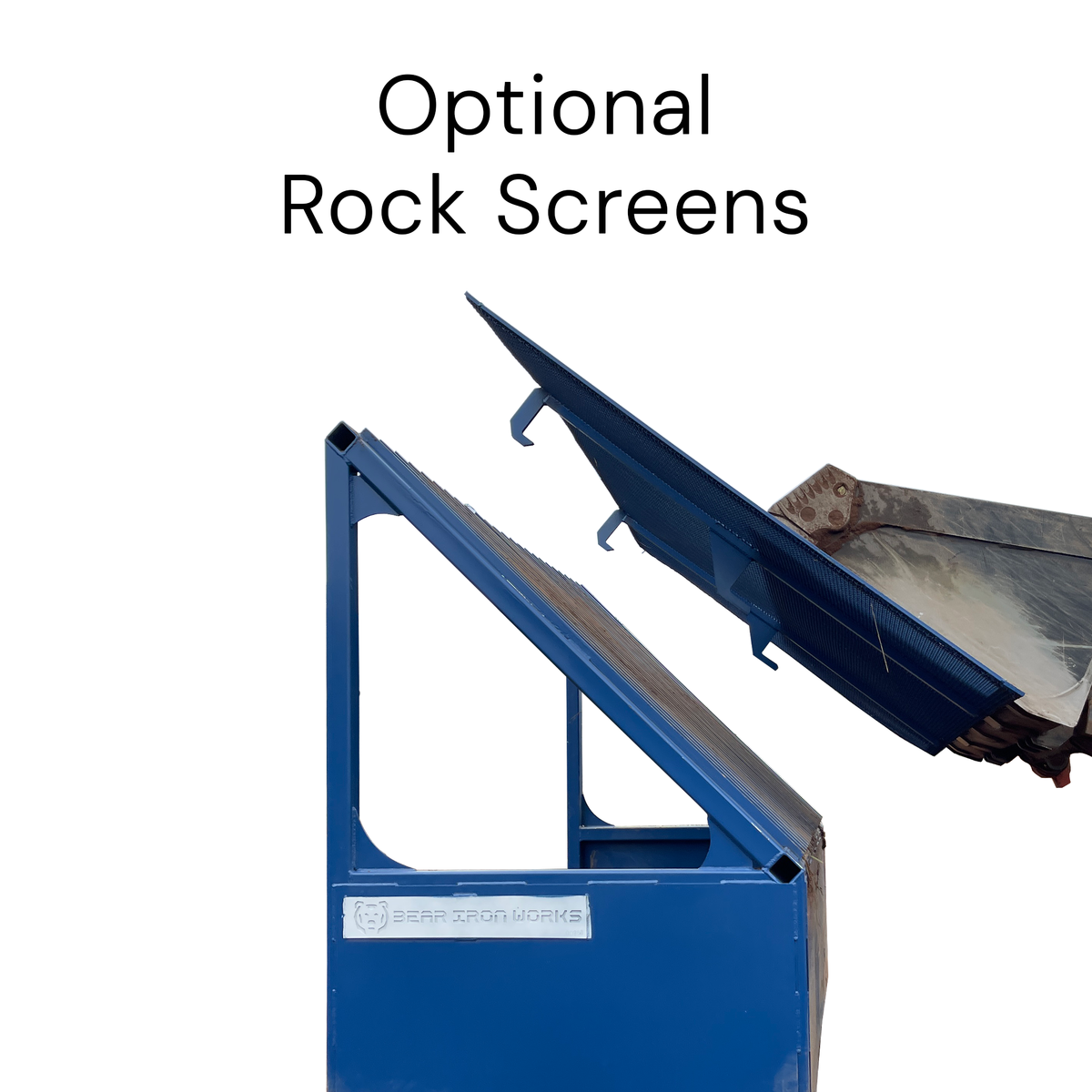

• Equipment-Assisted Screen Changes: Optional removable screens are designed to be changed without traditional bolts or fasteners.

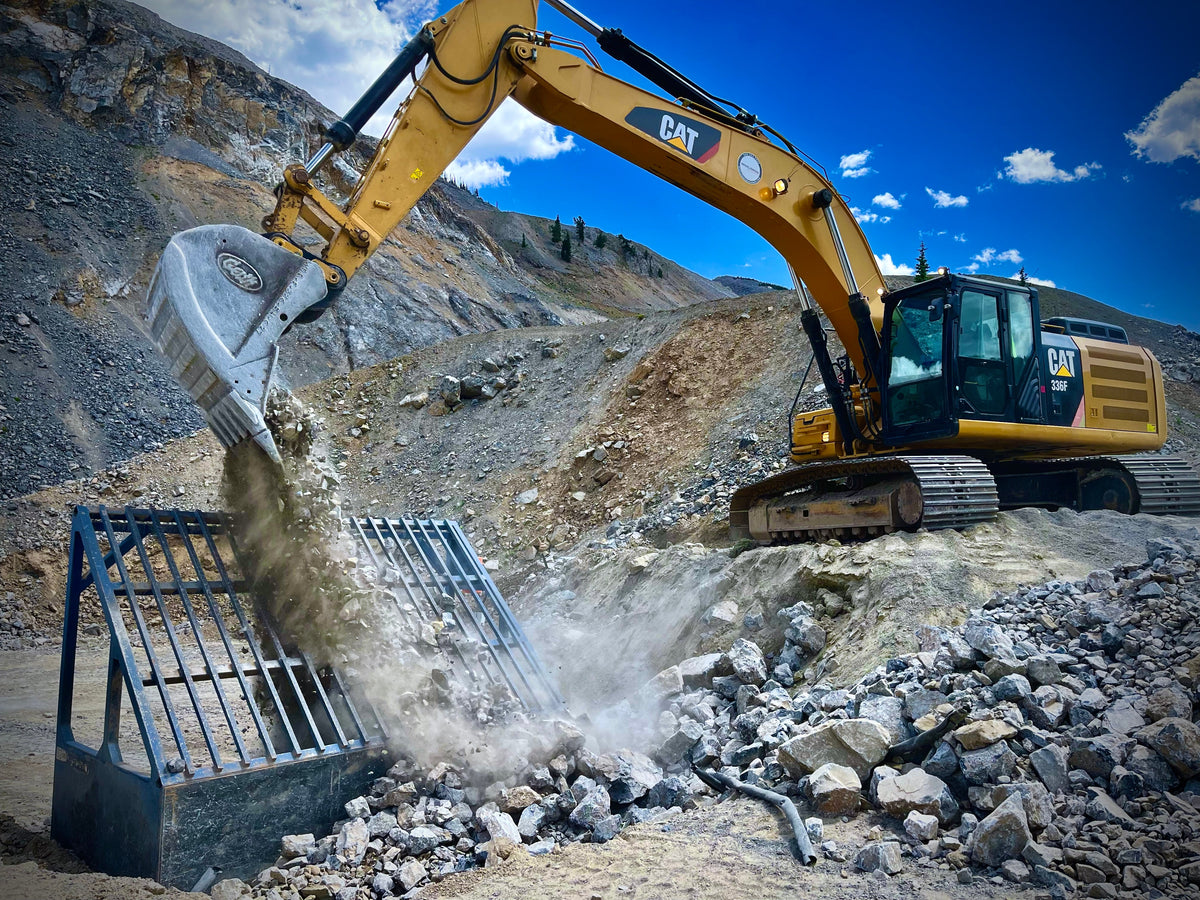

• Industrial Applications: Suitable for construction sites, quarries, mines, aggregate yards, land development, and material-processing facilities.
• Customizable Configuration: Bear Iron Works offers additional rail, frame, wing, and other upgrades for more demanding applications.

Package Includes

• 1 × Bear Iron Works Papa Grizzly Rock Screen
• Selected screen spacing
• Heavy-duty reinforced steel frame
• Solid steel screening rails
• Double-header and reinforced cross-rail structure

Removable screen, vibrator, wings, bang bars, D-rings, custom colors, and other factory upgrades are sold separately unless specifically ordered.
