RynoWorx AirBoss575PA Elite 575-Gallon Sealcoating Trailer System

The RynoWorx AirBoss575PA Elite 575-Gallon Sealcoating Trailer System is a premium commercial sealcoating system designed for contractors who need high material capacity, increased compressor output, powered hose management, and a dedicated heavy-duty trailer platform.

At the center of the system is a 575-gallon hydraulically agitated tank paired with a 27 CFM compressor, electric-start 14 HP Kohler engine, 2" dual-diaphragm pump, 100 ft sealcoating hose, and Coxreel powered hose reel.

Compared with the AirBoss575PA Pro, the Elite increases compressor output from 17 CFM to 27 CFM and adds the powered hose reel, making it better suited to demanding commercial operations and multi-operator crews.

Six trailer configurations are available across two deck sizes: a compact 55" × 67" Standard Deck and a larger 80" × 67" Extended Deck for contractors who need additional space for pavement-maintenance equipment.

Which model should you choose?

Features

• 575-Gallon Power-Agitated Tank: Provides commercial material capacity for larger properties and multiple daily jobs.
• Hydraulic Agitation: Continuously mixes sealcoat material during operation.
• 27 CFM Compressor: Higher-output compressor package suited to demanding professional operations.
• 30-Gallon Compressor Tank: Provides substantial compressed-air storage.
• 14 HP Kohler Engine: Commercial engine with electric start.
• 2" Dual-Diaphragm Pump: Designed for high-volume sealcoat material transfer and spraying.
• 100 ft Sealcoating Hose: Provides extended reach around commercial properties.
• Coxreel Powered Hose Reel: Powered hose retrieval reduces manual winding and simplifies jobsite cleanup.
• 50 ft Auxiliary Air Hose: Provides additional compressed-air capability.
• 3-Gallon Basket Strainer: Helps filter material before it reaches the spray system.
• Two Strainer Filter Sizes: Provides filtration options for different material conditions.
• Four Spray Tip Sizes: Allows different spray patterns and application requirements.
• Tandem-Axle Trailer: Heavy-duty platform designed to carry the larger AirBoss system.
• Standard or Extended Deck: Choose a compact footprint or additional equipment-carrying space.
• Integrated Water Systems: Higher configurations include onboard water storage, water pump, and cleanup hose.
• Storage Options: Selected packages include side-mount brush and tool boxes.

Package Includes

All configurations include the AirBoss575PA Elite spray system:

• 575-gallon power-agitated tank
• 30-gallon, 27 CFM compressor
• Electric-start 14 HP Kohler engine
• 2" dual-diaphragm pump
• 3-gallon basket strainer
• 2 basket-strainer filter sizes
• 100 ft sealcoating hose
• Coxreel powered hose reel
• 50 ft auxiliary air hose
• 4 spray-tip sizes

Standard Deck Package A – RA-TSY-0043

• Tandem 7K axle trailer
• 55" × 67" steel checker-plate deck
• Deck rails
• 6 recessed deck tie-down points

Standard Deck Package B – RA-TSY-0044

Includes the Standard Deck platform plus:

• 66" × 38" mesh loading ramp
• 30 gallons of water storage
• Water pump
• 50 ft water spray hose

Standard Deck Package C – RA-TSY-0045

Includes:

• 55" × 67" steel checker-plate deck
• Deck rails
• 66" × 38" mesh ramp with spring assist
• 6 recessed deck tie-down points
• 30 gallons of water storage
• Water pump
• 50 ft water spray hose
• Side-mount brush box
• Tool box

Extended Deck Package A – RA-TSY-0046

Includes:

• Tandem 7K axle trailer
• 80" × 67" steel checker-plate deck
• Deck rails
• 9 recessed deck tie-down points
• 30 gallons of water storage
• Water pump
• 50 ft water spray hose

Extended Deck Package B – RA-TSY-0047

Includes:

• 80" × 67" steel checker-plate deck
• Deck rails
• 66" × 38" mesh loading ramp
• 9 recessed deck tie-down points
• 30 gallons of water storage
• Water pump
• 50 ft water spray hose
• Side-mount brush box
• Tool box

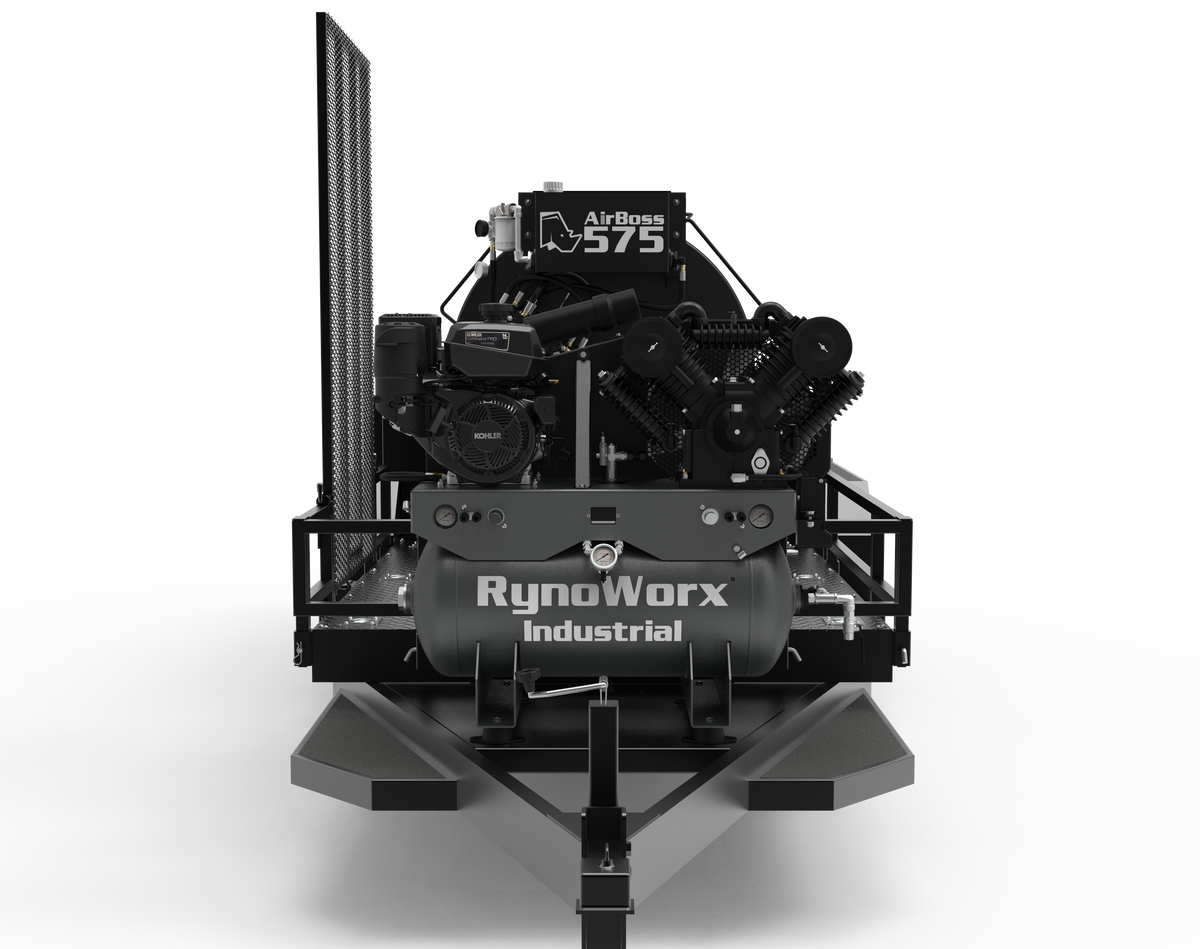

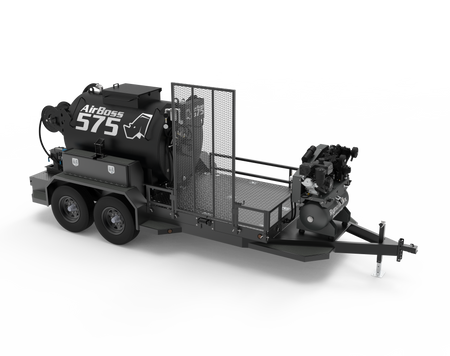

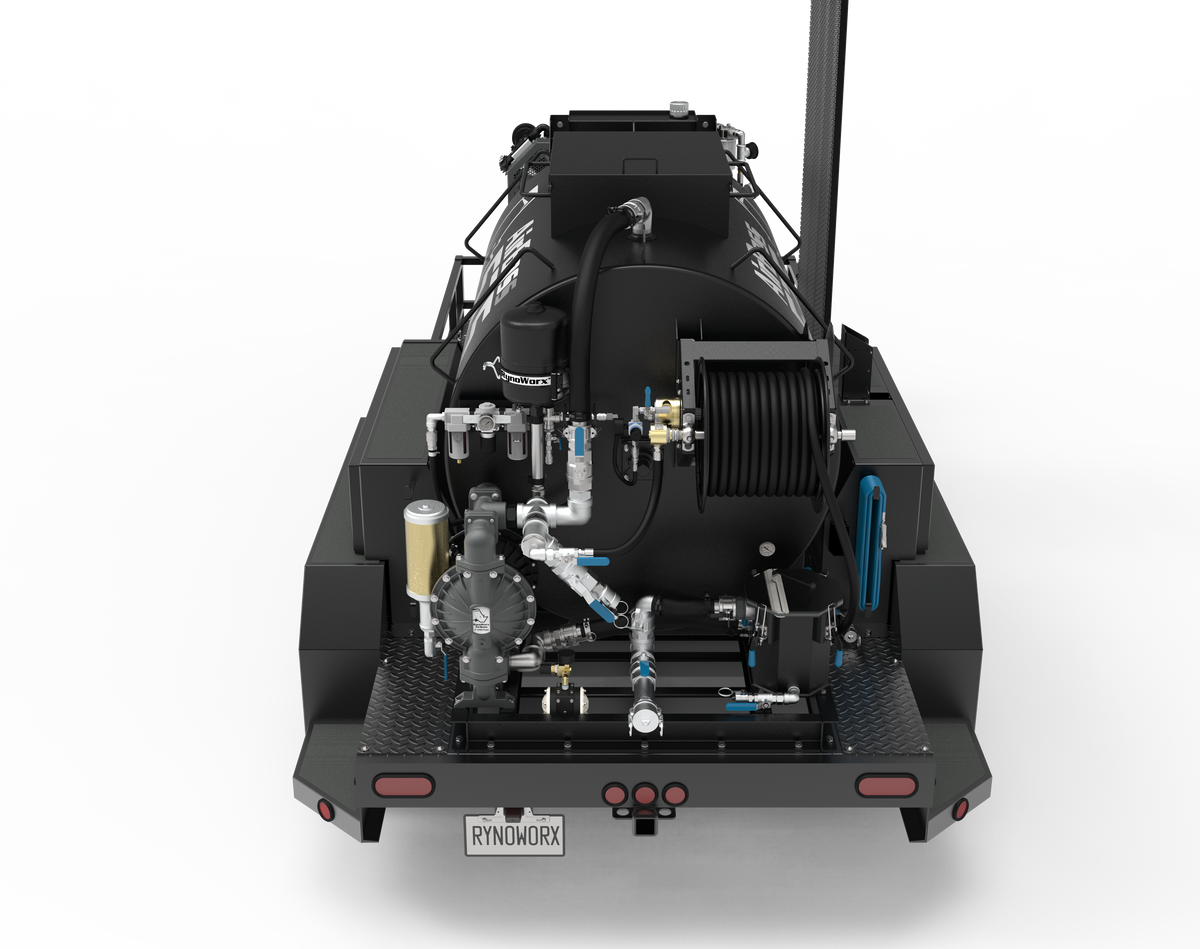

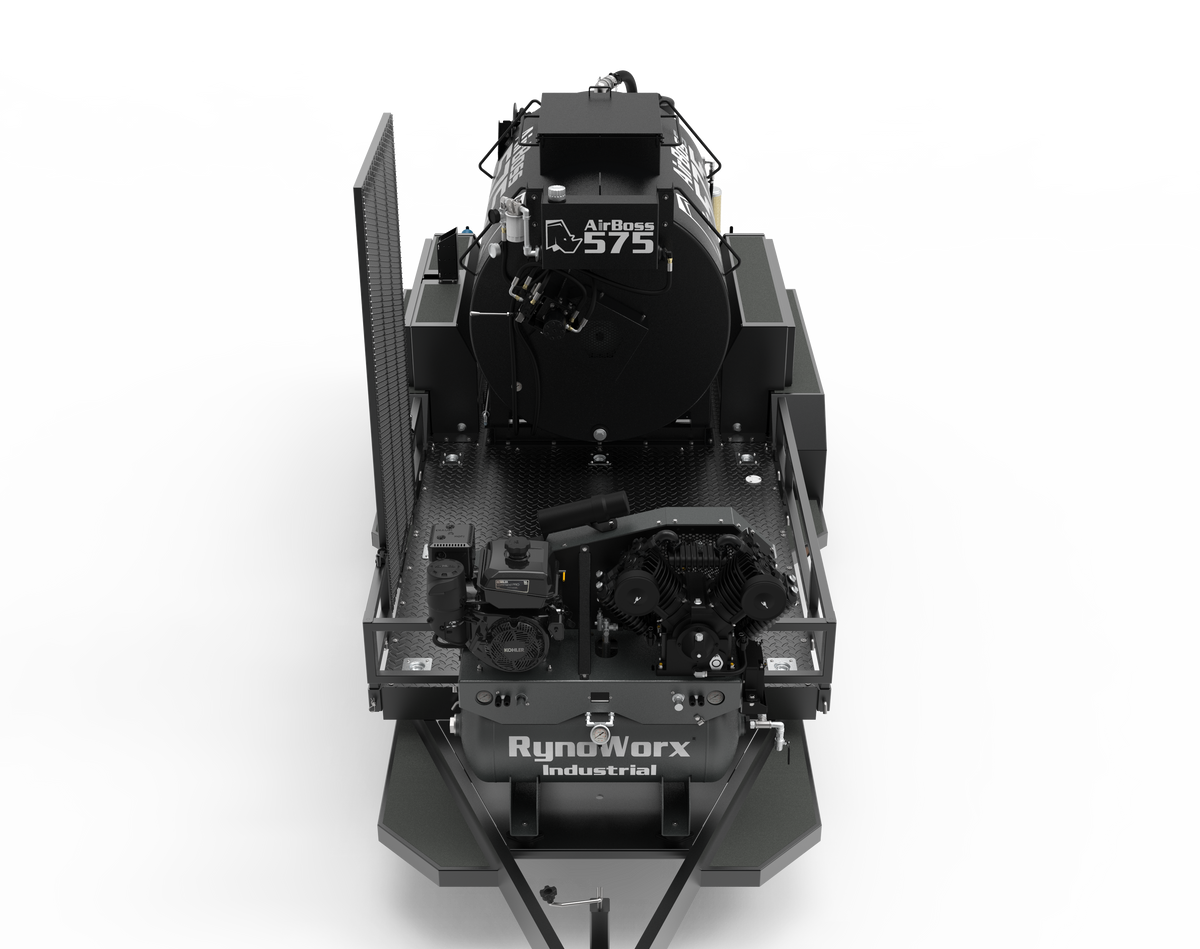

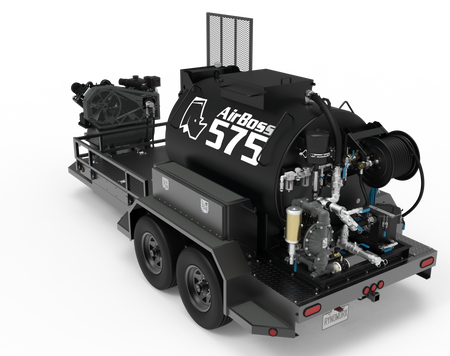

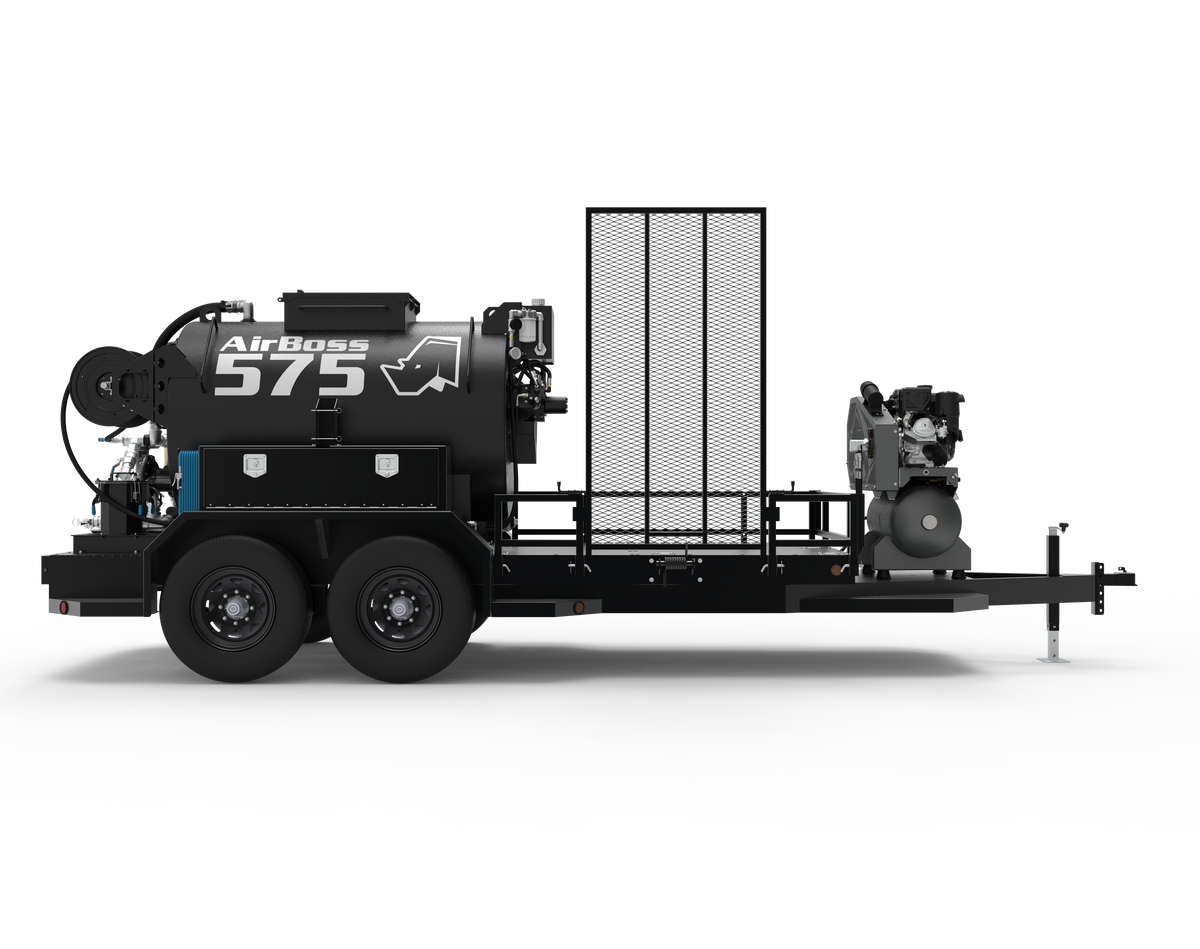

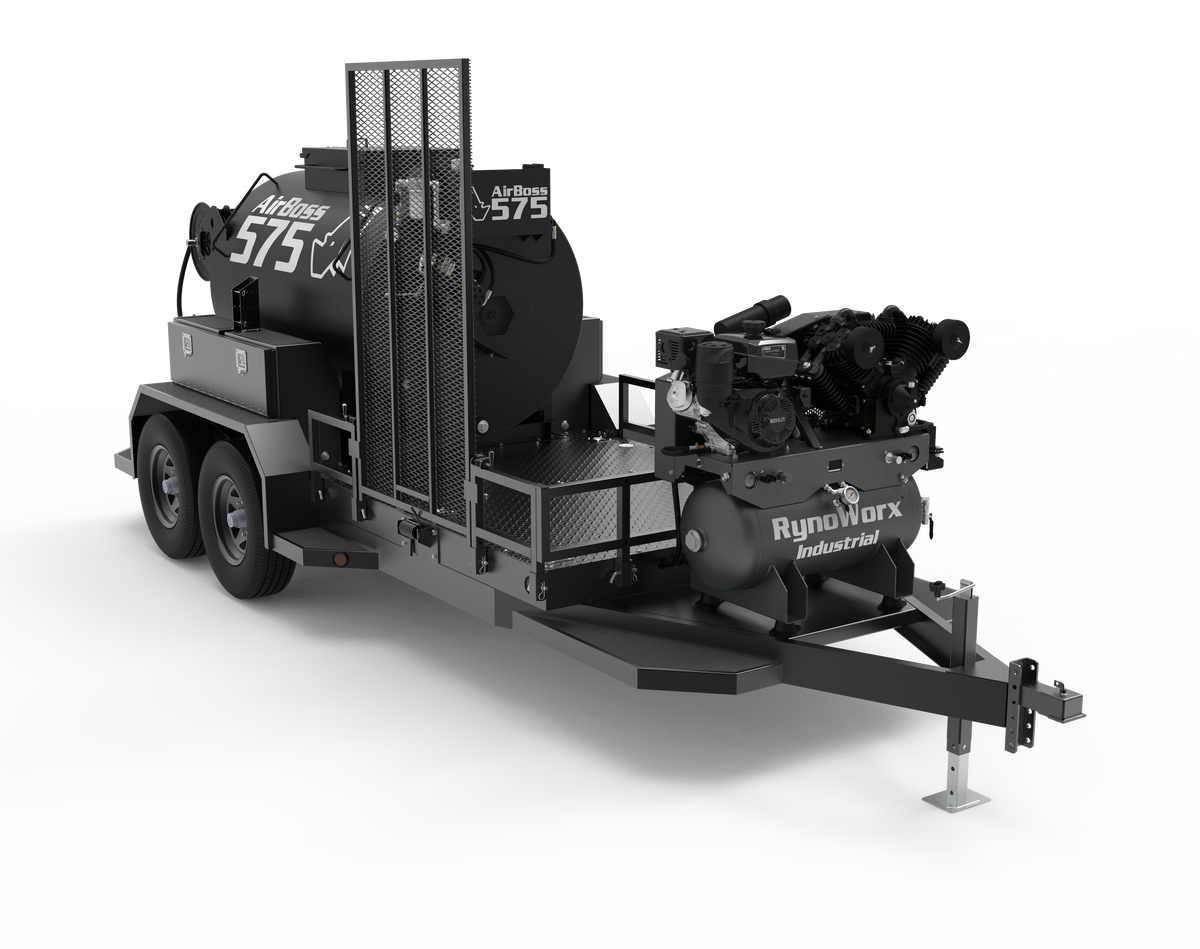

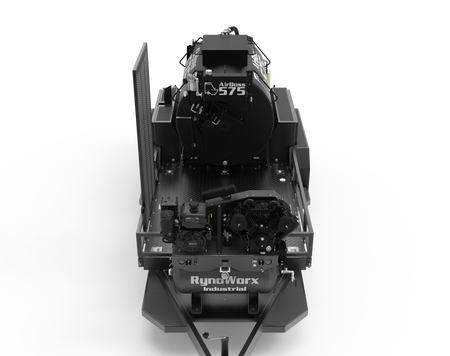

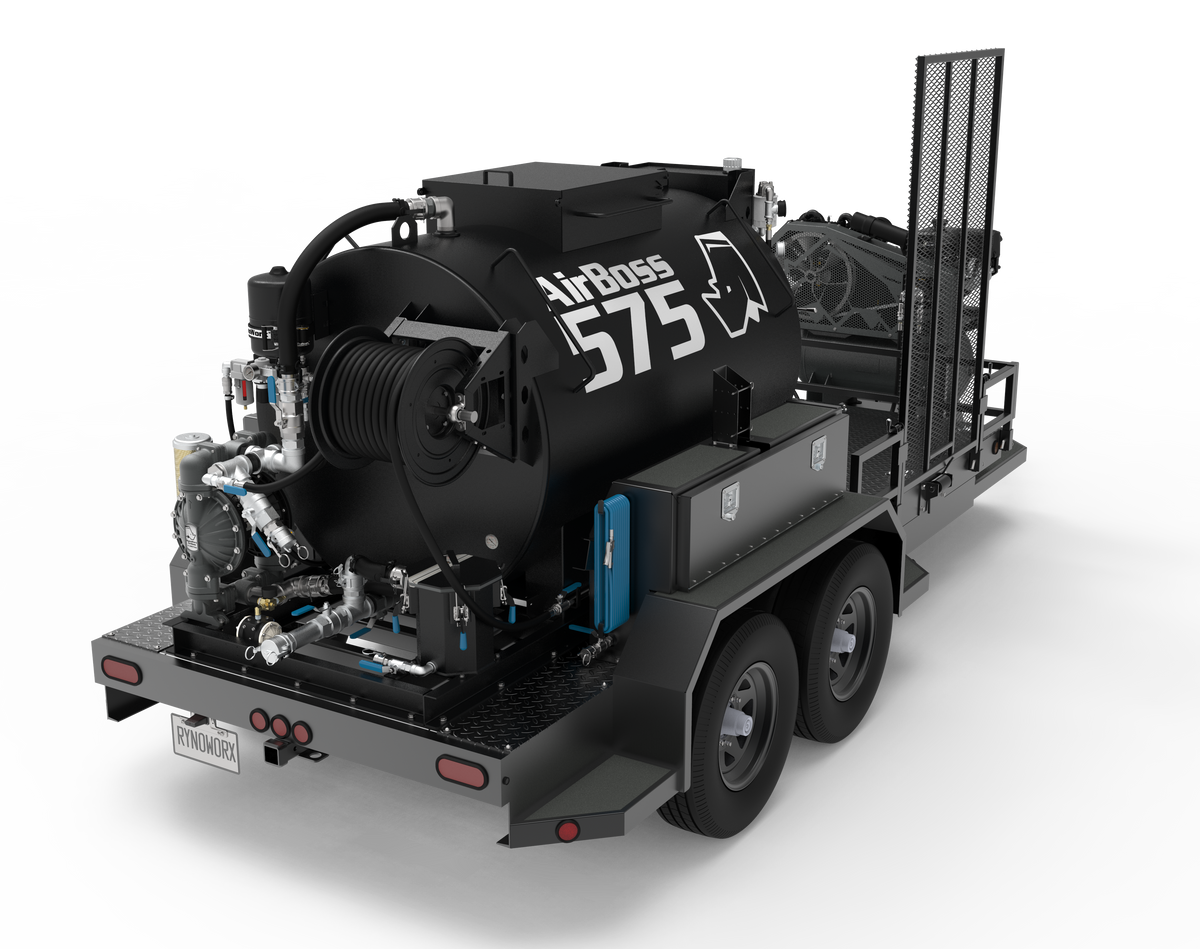

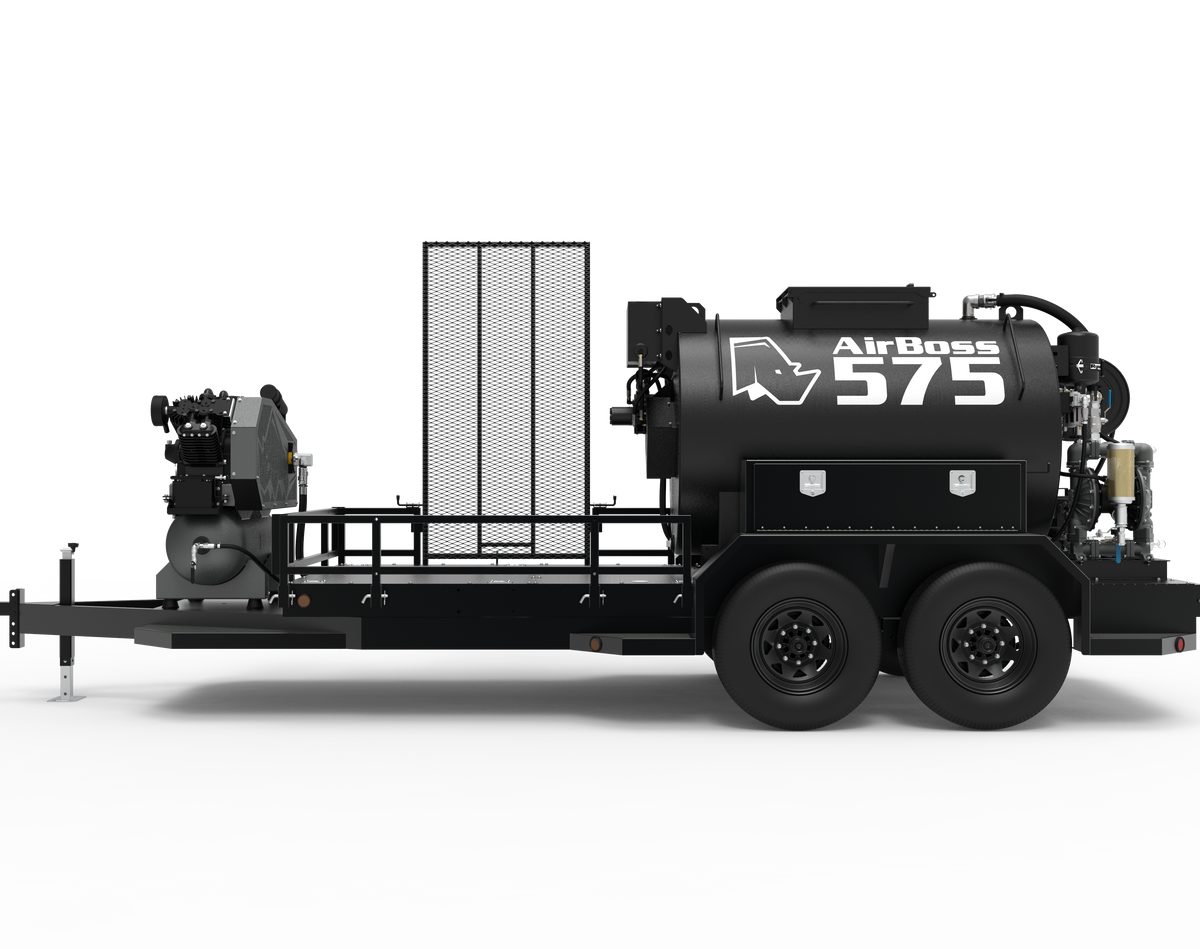

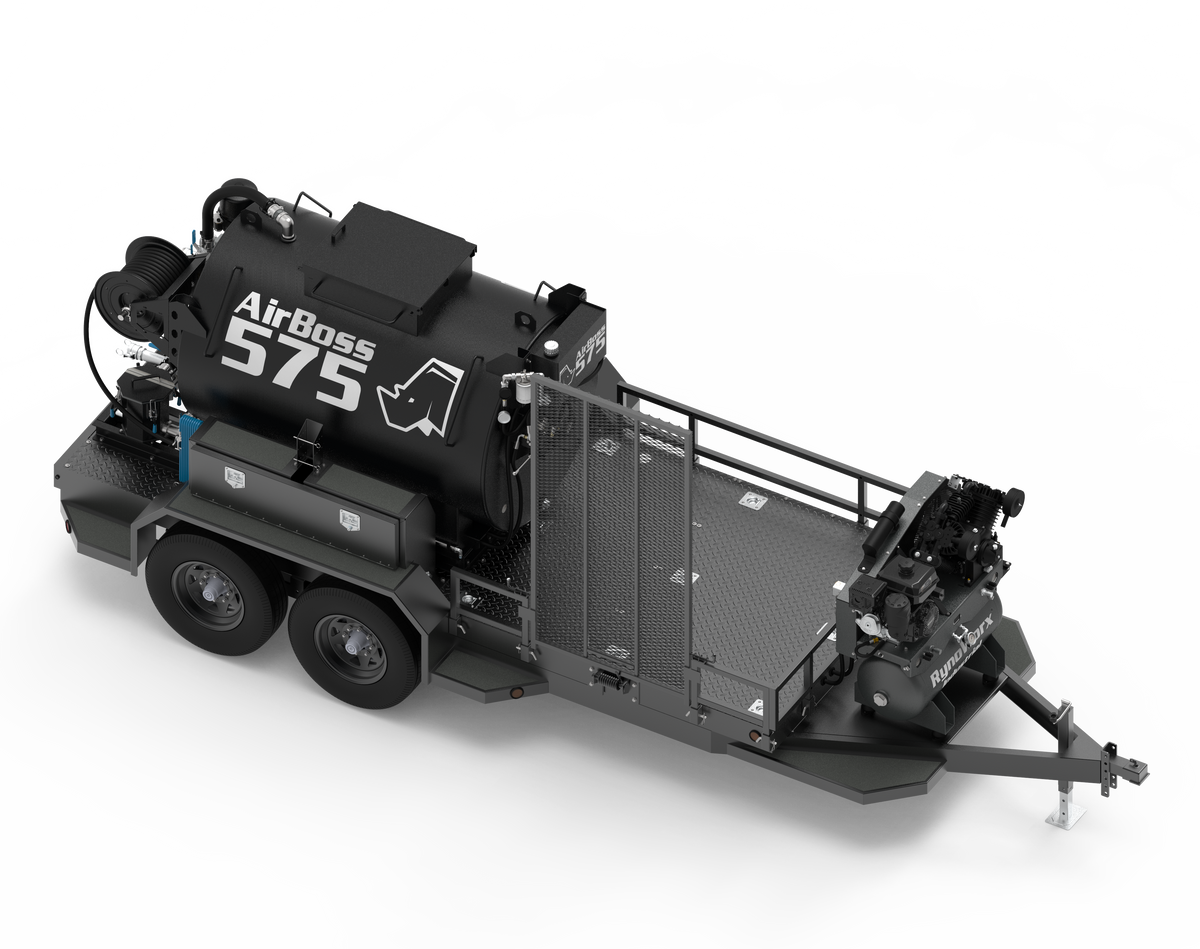

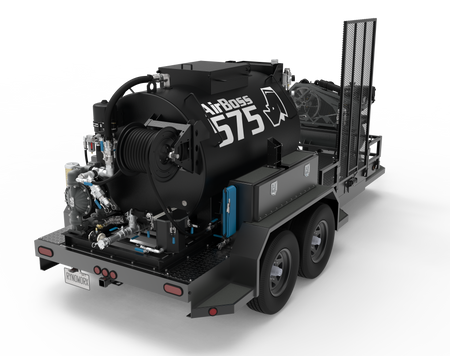

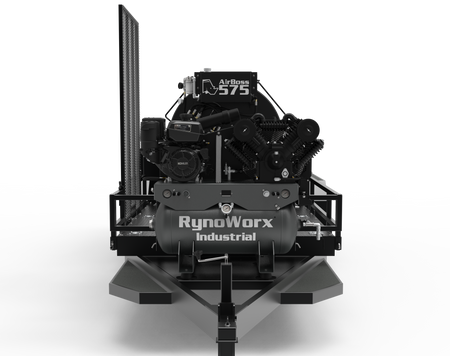

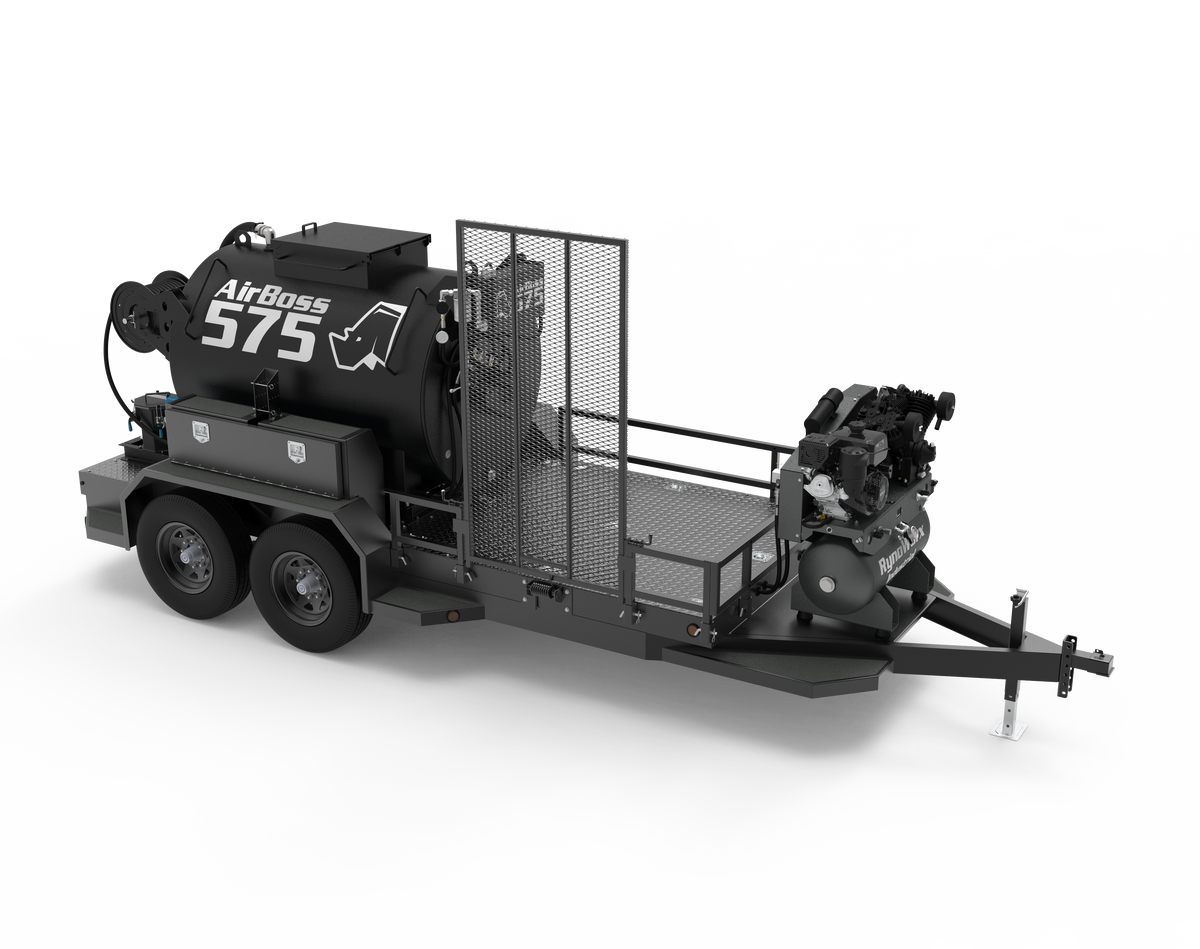

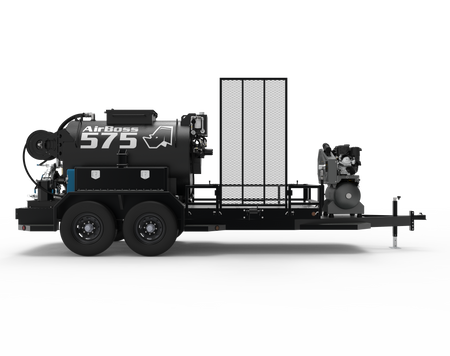

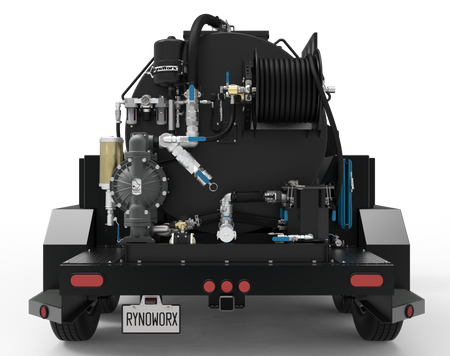

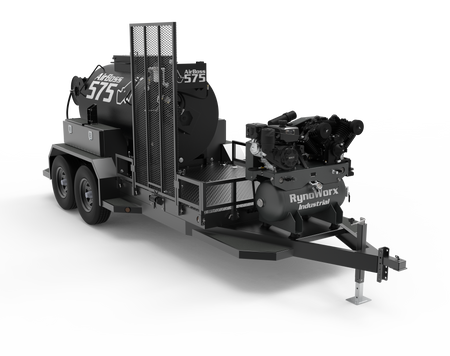

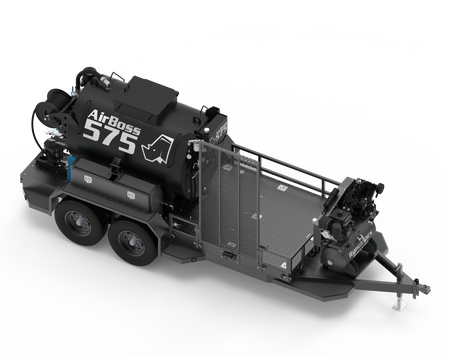

Extended Deck Package C – RA-TSY-0048

Includes:

• 80" × 67" steel checker-plate deck
• Deck rails
• 66" × 38" mesh ramp with spring assist
• 9 recessed deck tie-down points
• 60 gallons of water storage
• Water pump
• 50 ft water spray hose
• Side-mount brush box
• Tool box

Specifications
