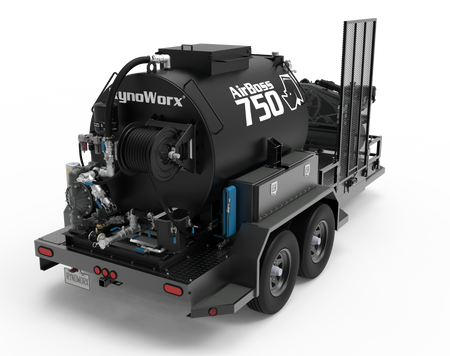

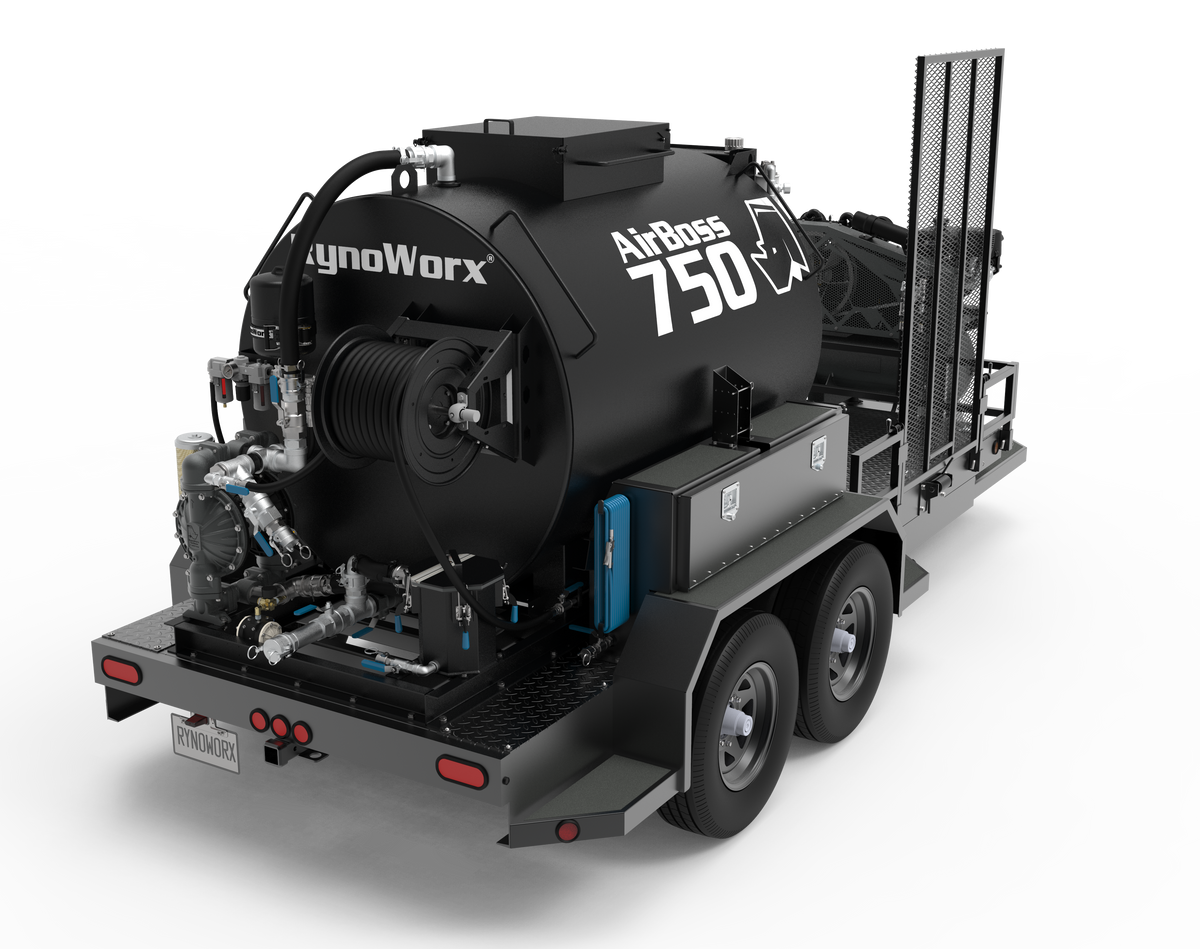

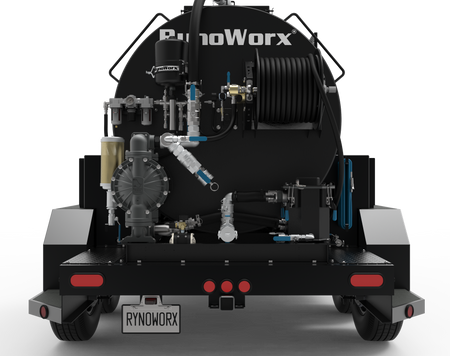

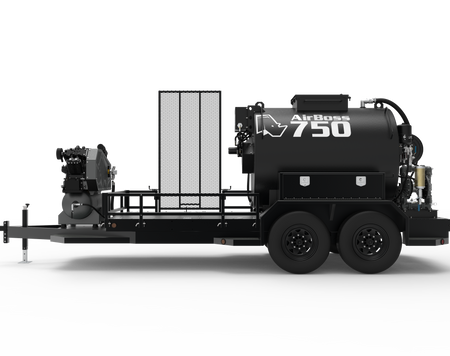

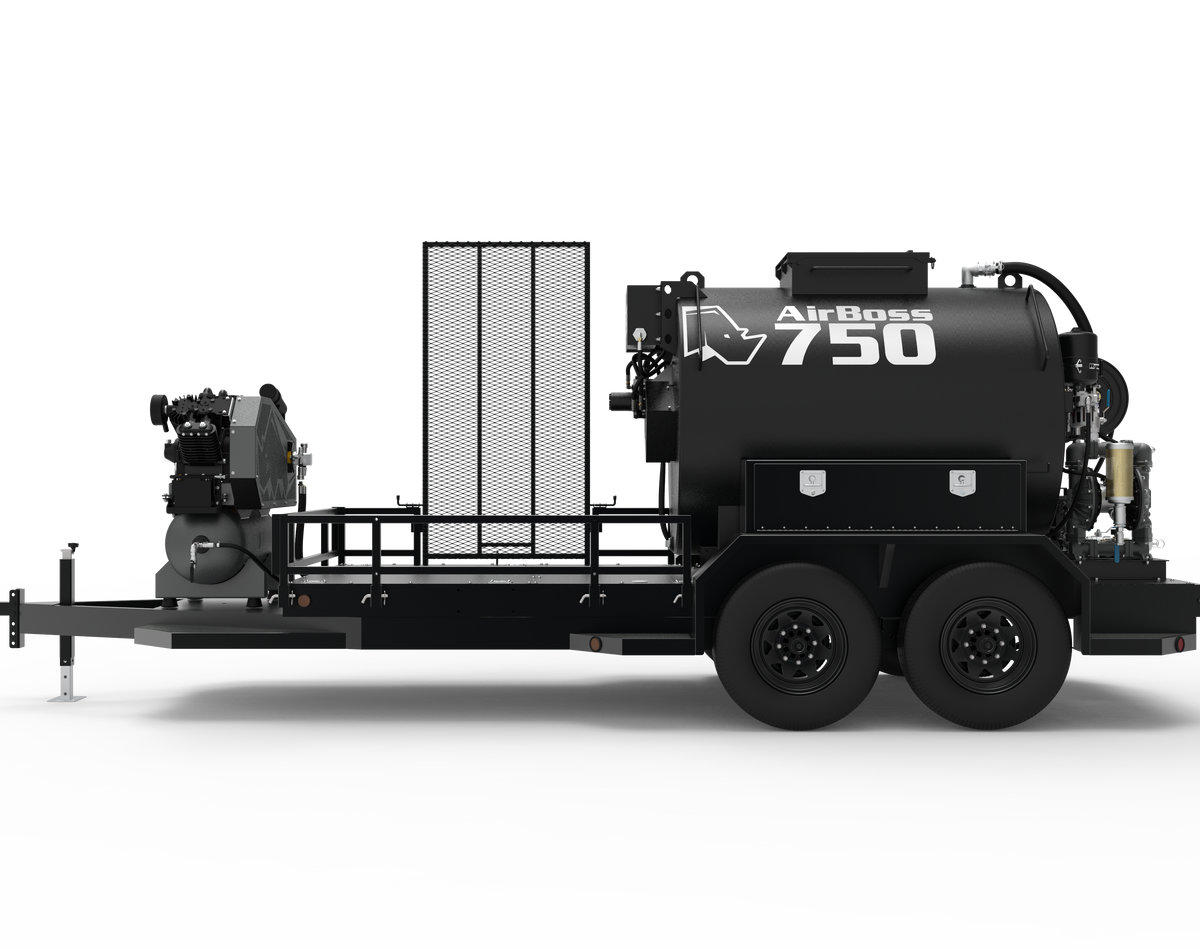

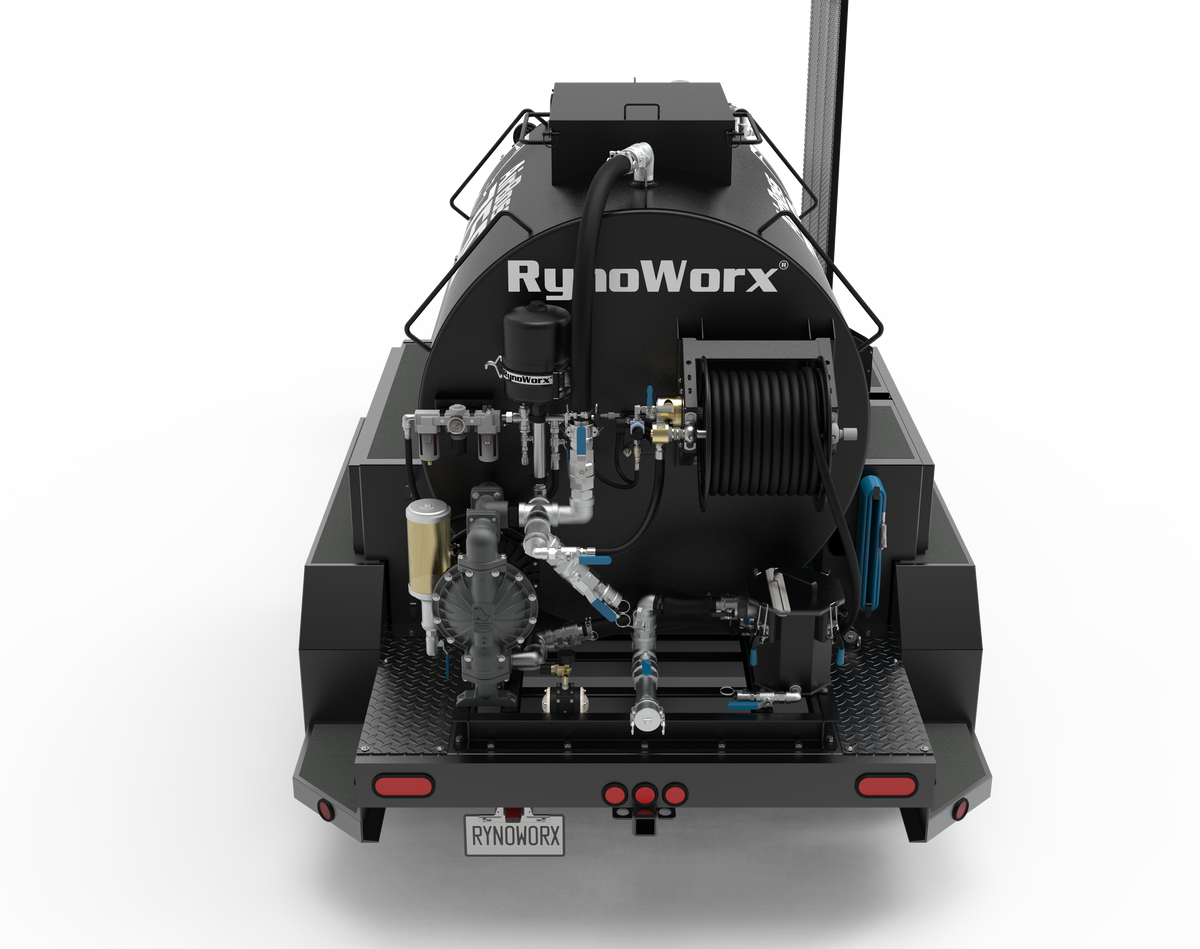

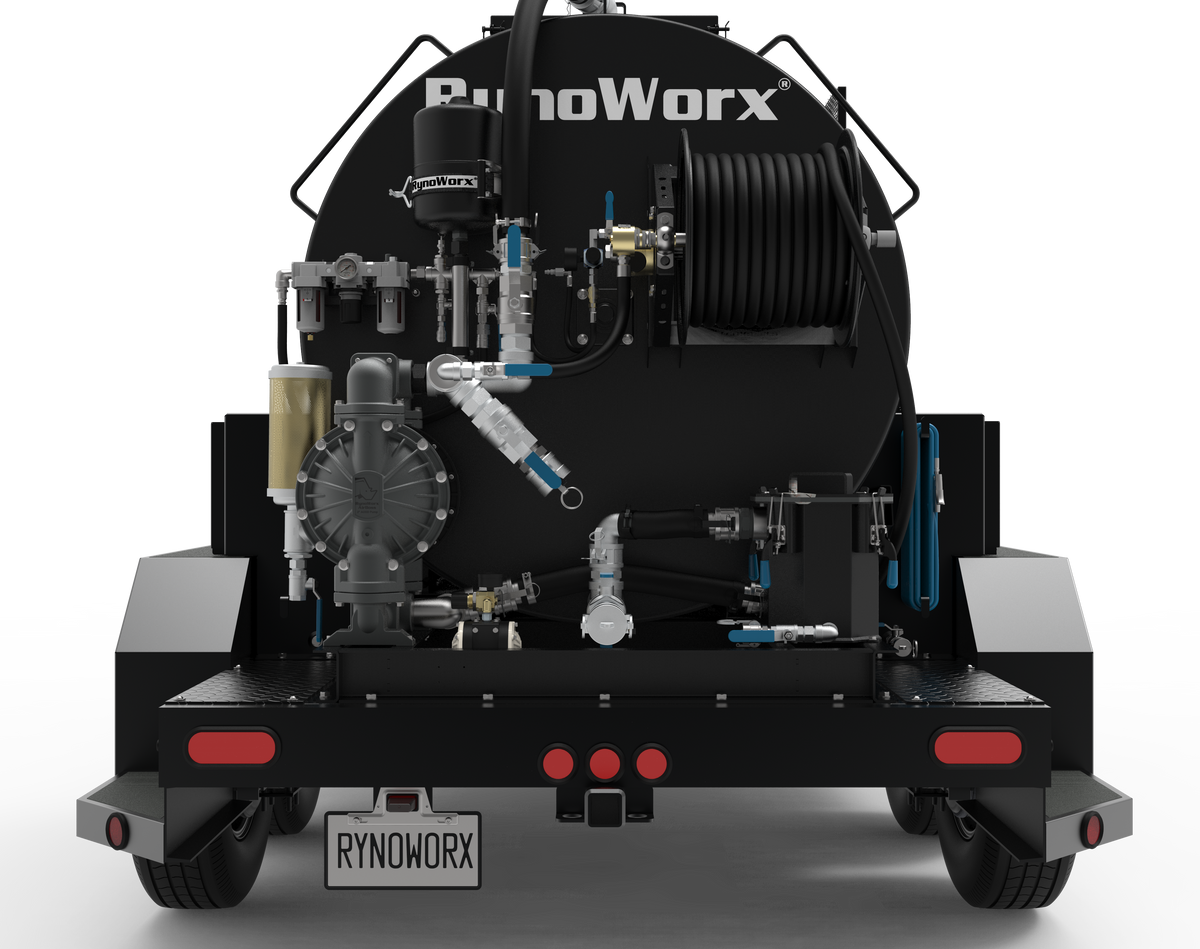

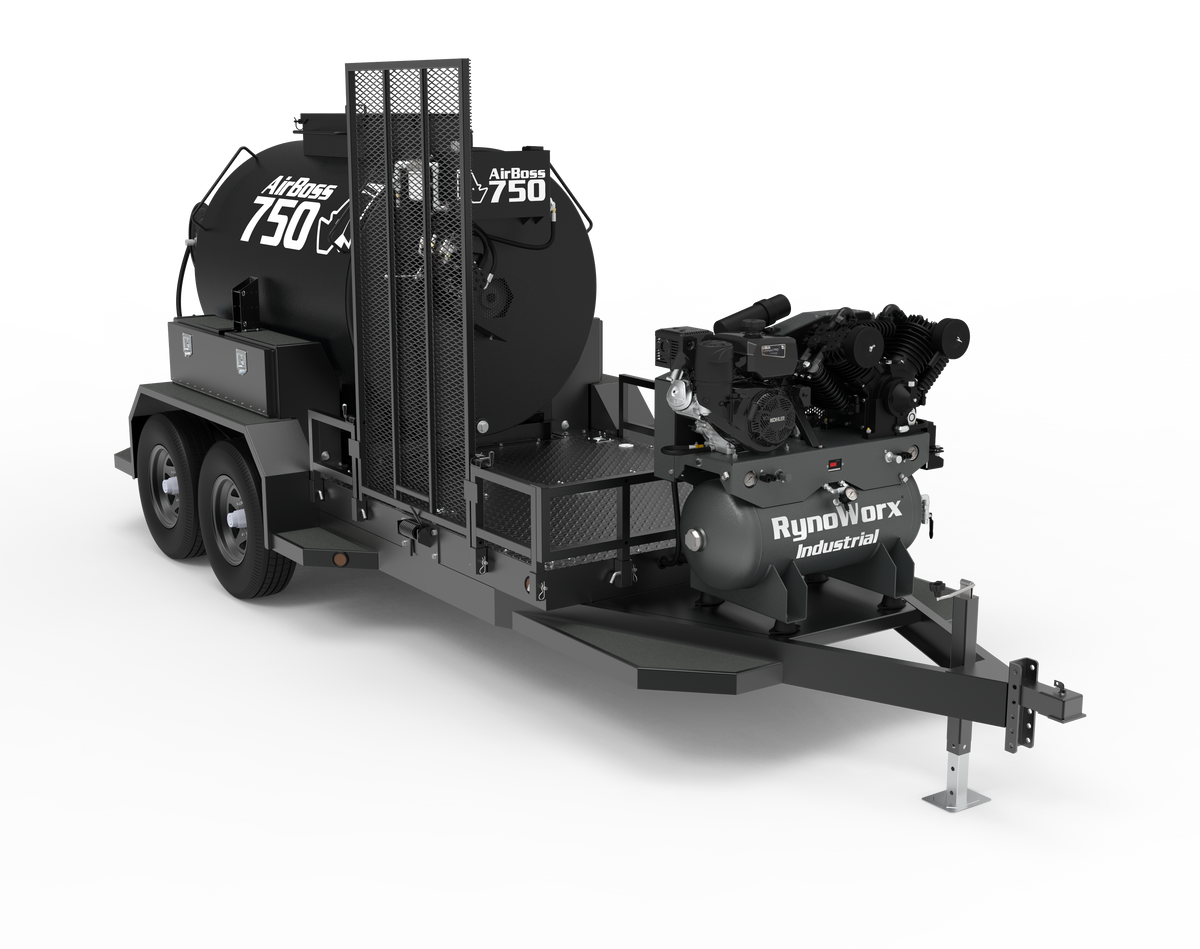

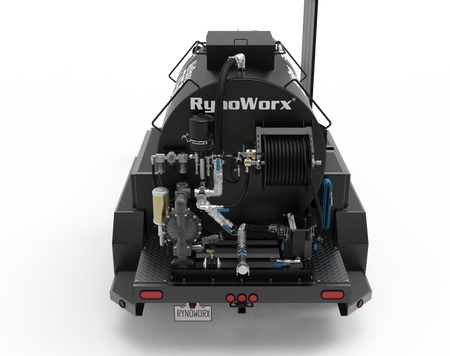

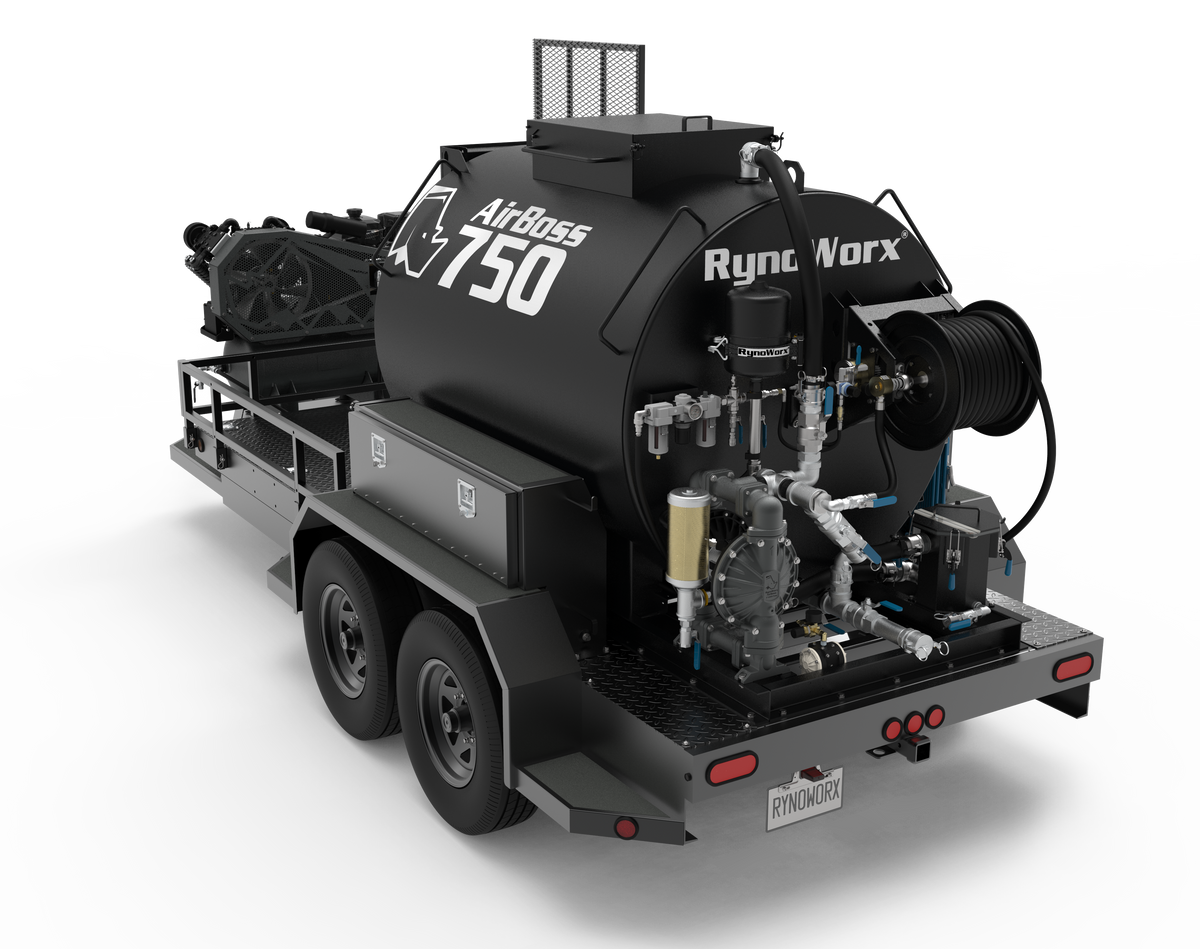

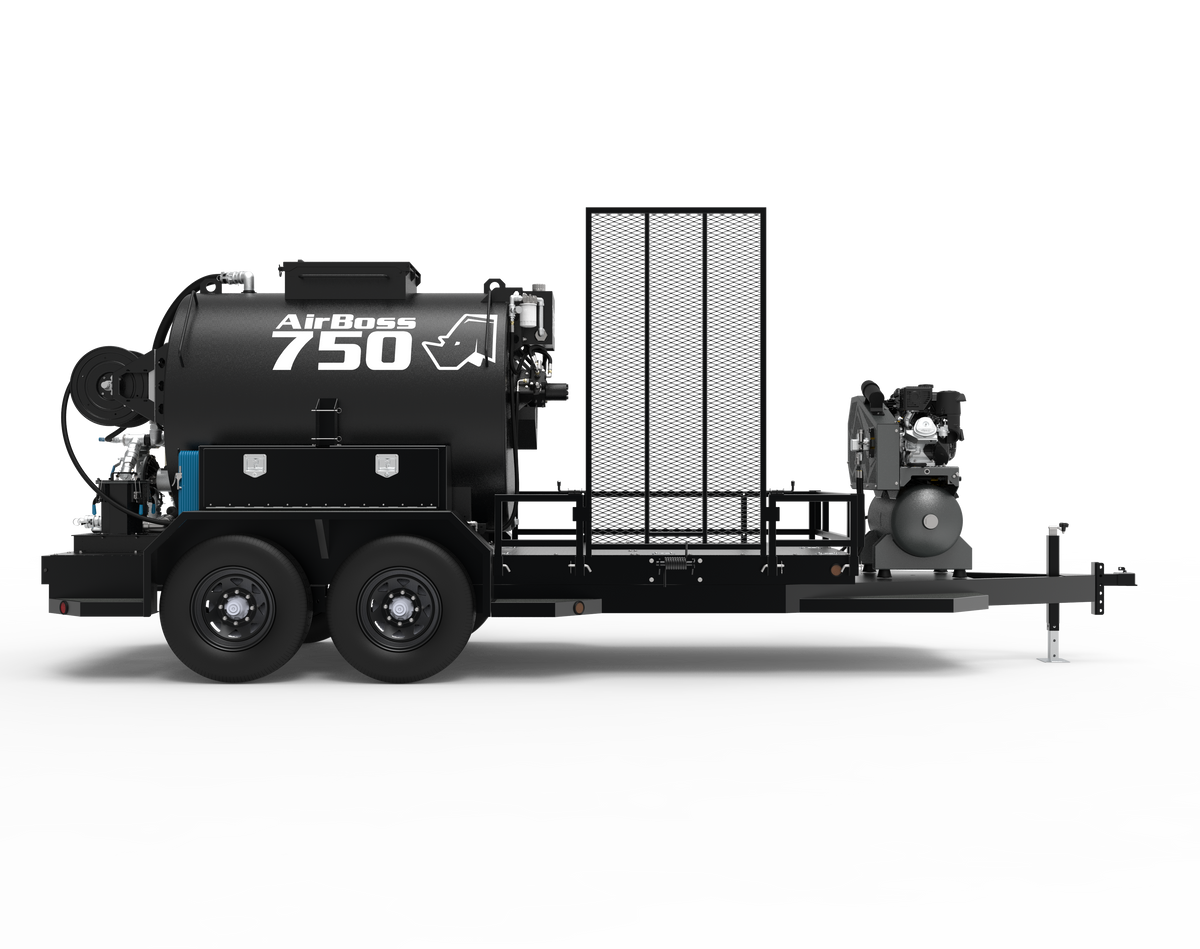

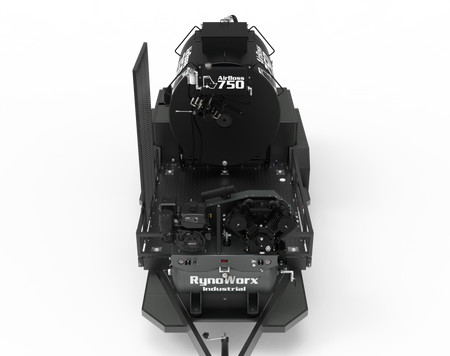

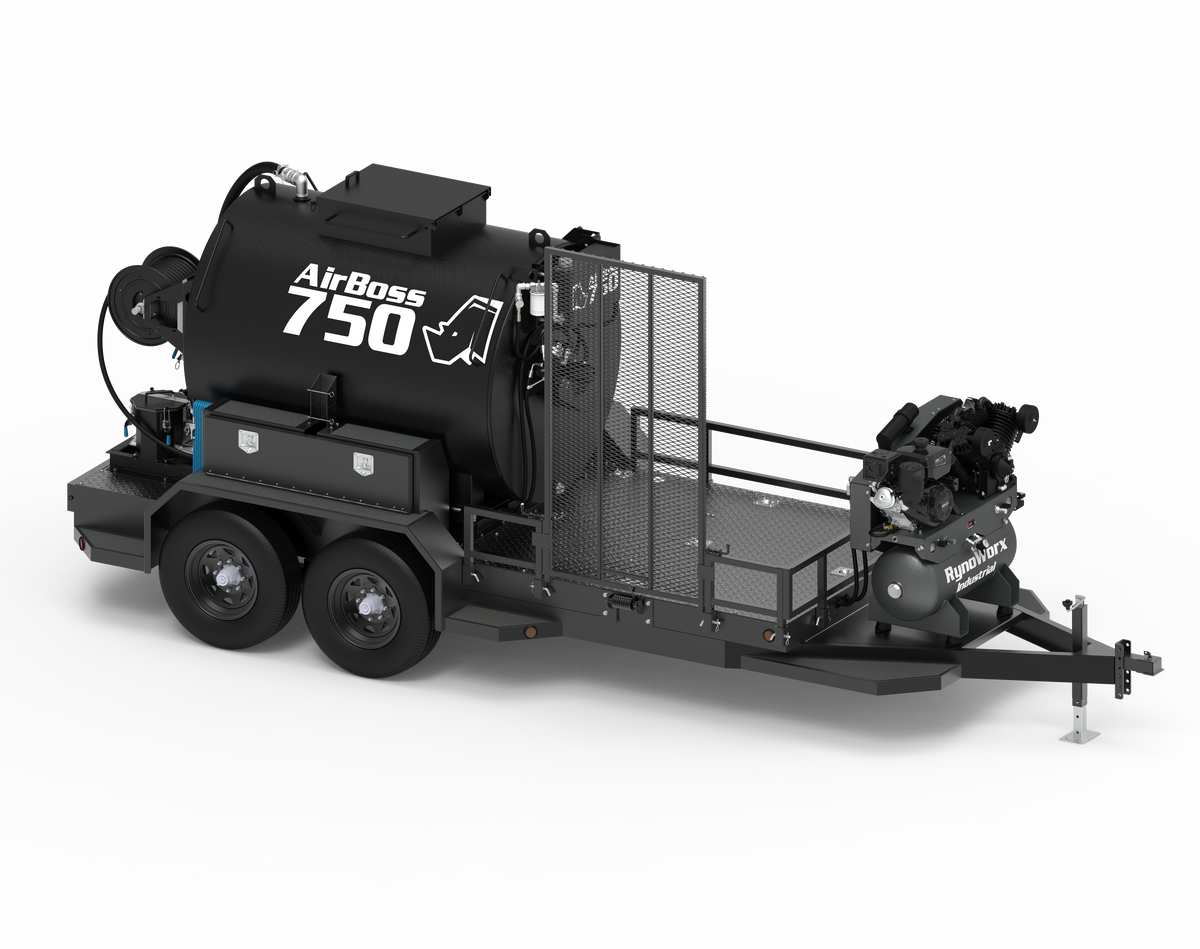

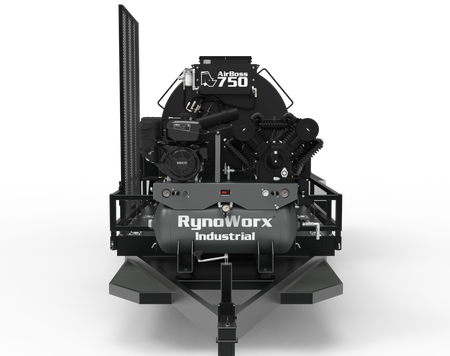

RynoWorx AirBoss750PA Elite 750-Gallon Sealcoating Trailer System

The RynoWorx AirBoss750PA Elite 750-Gallon Sealcoating Trailer System is the highest-capacity premium AirBoss trailer platform, built for professional contractors, high-volume commercial work, municipal operations, and multi-service pavement-maintenance crews.

At the center of the system is a 750-gallon power-agitated tank paired with a 27 CFM compressor, electric-start 14 HP Kohler engine, 2" dual-diaphragm pump, 100 ft sealcoating hose, and Coxreel powered hose reel.

Compared with the AirBoss750PA Pro, the Elite retains the same 750-gallon material capacity while upgrading to the higher-output 27 CFM compressor and powered hose reel.

Six trailer configurations are available across Standard Deck and Extended Deck layouts, allowing contractors to choose between a more compact sealcoating-focused setup and a larger multi-service trailer with additional storage, loading, and water capacity.

Which model should you choose?

For contractors primarily focused on sealcoating, the Standard Deck versions keep the trailer more compact. The Extended Deck versions provide significantly more room for carrying additional pavement-maintenance equipment.

Features

• 750-Gallon Power-Agitated Tank: Provides maximum material capacity within the AirBoss lineup.
• Hydraulic Agitation: Continuously mixes sealcoat material during operation.
• 27 CFM Compressor: Higher-output air system designed for demanding professional and multi-operator applications.
• 30-Gallon Compressor Tank: Provides substantial compressed-air storage.
• 14 HP Kohler Engine: Commercial-grade engine with electric start.
• 2" Dual-Diaphragm Pump: Designed for high-volume sealcoat material transfer and spraying.
• 100 ft Sealcoating Hose: Provides extensive reach around commercial parking areas and large pavement surfaces.
• Coxreel Powered Hose Reel: Powered hose retrieval improves setup and cleanup efficiency.
• 50 ft Auxiliary Air Hose: Adds compressed-air capability for jobsite tasks.
• 3-Gallon Basket Strainer: Helps filter sealcoat material before it reaches the pump.
• Two Basket-Strainer Filter Sizes: Provides filtration options for varying material conditions.
• Four Spray Tip Sizes: Allows different spray patterns and application requirements.
• Heavy-Duty Tandem-Axle Trailer: Provides a stable mobile platform for the 750-gallon system.
• Standard or Extended Deck: Choose a compact sealcoating configuration or additional deck space for equipment.
• Integrated Water Systems: Selected packages include onboard water storage, pump, and cleanup hose.
• Equipment Storage: Higher packages include side-mount brush and tool boxes.

Package Includes

All configurations include the AirBoss750PA Elite spray system:

• 750-gallon power-agitated tank
• 30-gallon, 27 CFM compressor
• Electric-start 14 HP Kohler engine
• 2" dual-diaphragm pump
• 3-gallon basket strainer
• 2 basket-strainer filter sizes
• 100 ft sealcoating hose
• Coxreel powered hose reel
• 50 ft auxiliary air hose
• 4 spray-tip sizes

Standard Deck Package A – RA-TSY-0061

• Tandem 7K axle trailer
• 55" × 67" steel checker-plate deck
• Deck rails
• 6 recessed deck tie-down points

Standard Deck Package B – RA-TSY-0062

Includes:

• 55" × 67" steel checker-plate deck
• Deck rails
• 66" × 38" mesh loading ramp
• 6 recessed tie-down points
• 30 gallons of water storage
• Water pump
• 50 ft water spray hose

Standard Deck Package C – RA-TSY-0063

Includes:

• 55" × 67" steel checker-plate deck
• Deck rails
• 66" × 38" mesh ramp with spring assist
• 6 recessed tie-down points
• 30 gallons of water storage
• Water pump
• 50 ft water spray hose
• Side-mount brush box
• Tool box

Extended Deck Package A – RA-TSY-0064

Includes:

• Tandem 7K axle trailer
• 80" × 67" steel checker-plate deck
• Deck rails
• 9 recessed deck tie-down points
• 30 gallons of water storage
• Water pump
• 50 ft water spray hose

Extended Deck Package B – RA-TSY-0065

Includes:

• 80" × 67" steel checker-plate deck
• Deck rails
• 66" × 38" mesh loading ramp
• 9 recessed deck tie-down points
• 30 gallons of water storage
• Water pump
• 50 ft water spray hose
• Side-mount brush box
• Tool box

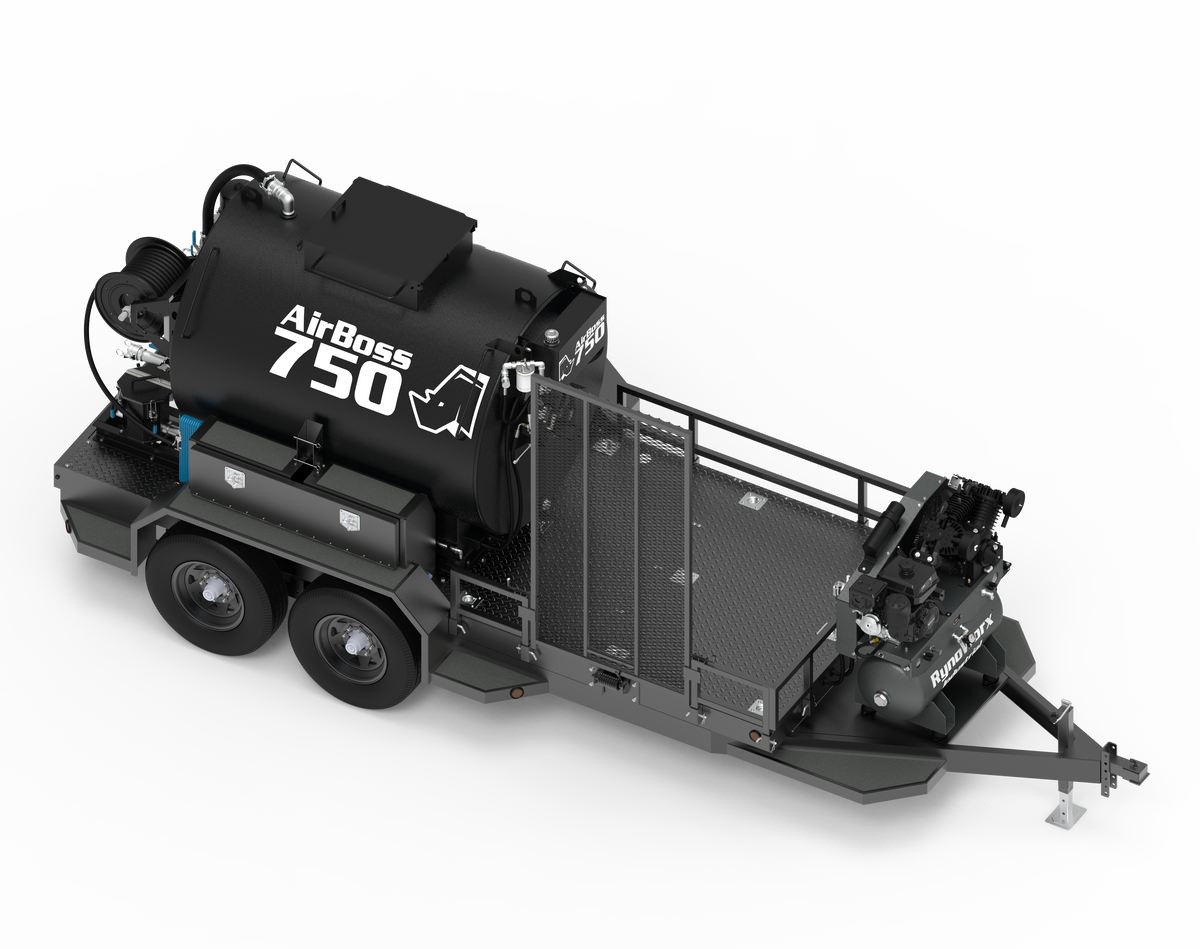

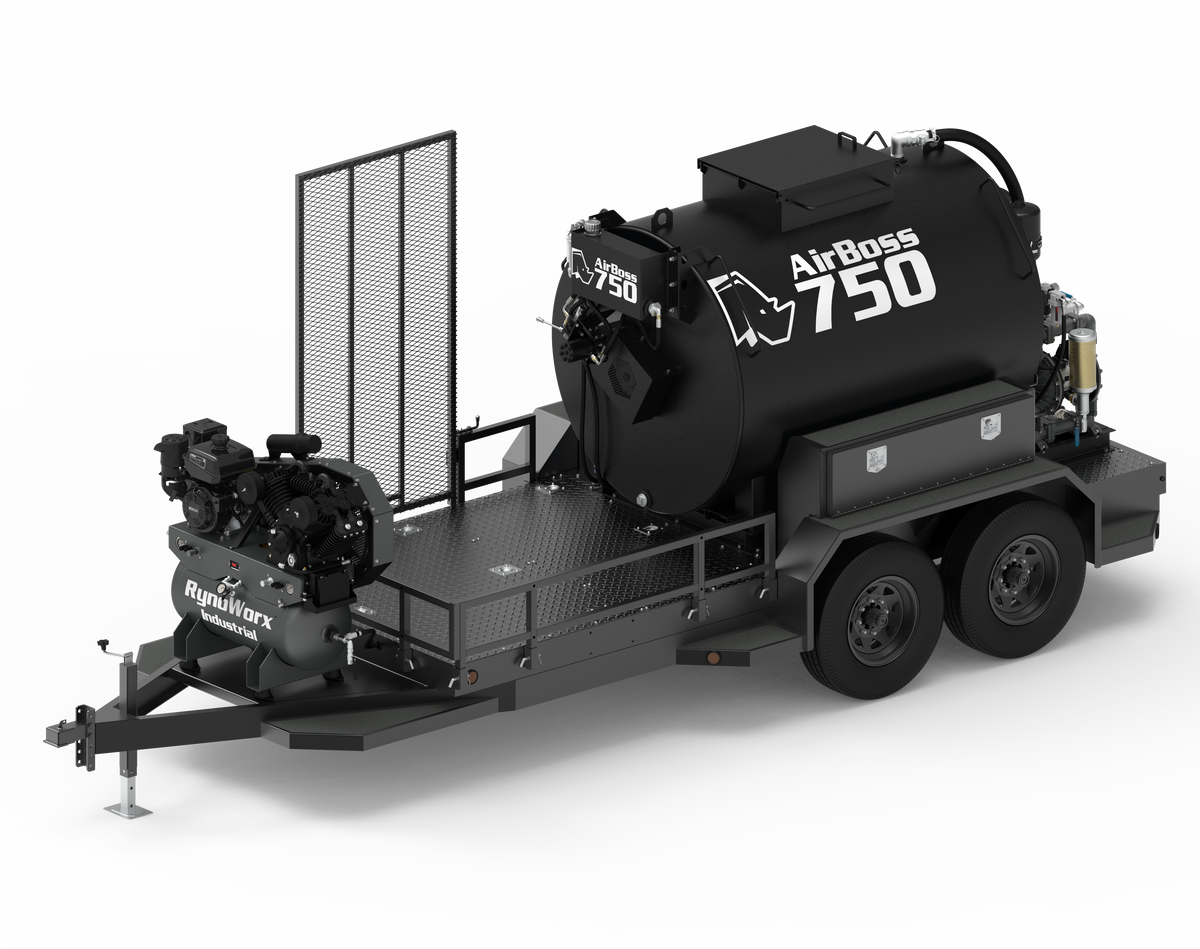

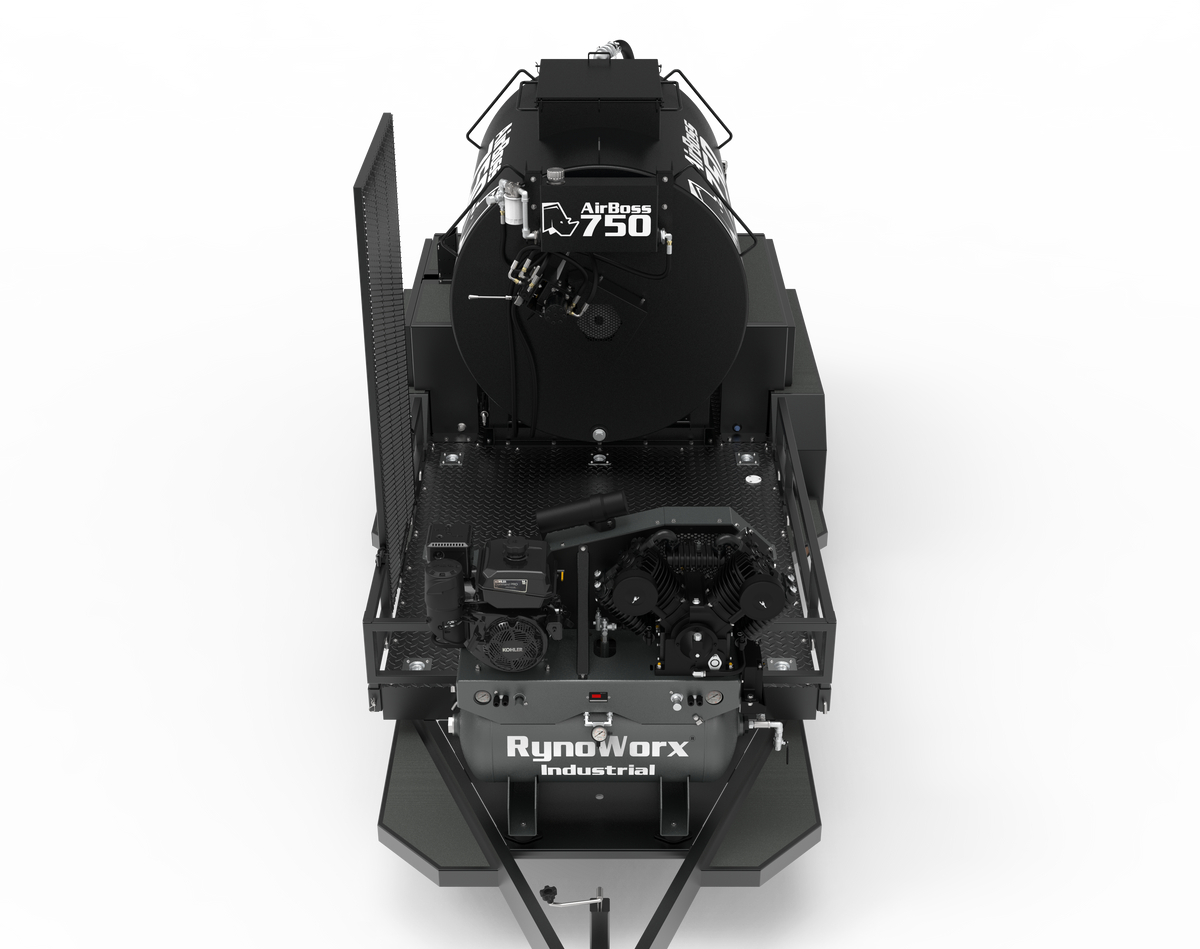

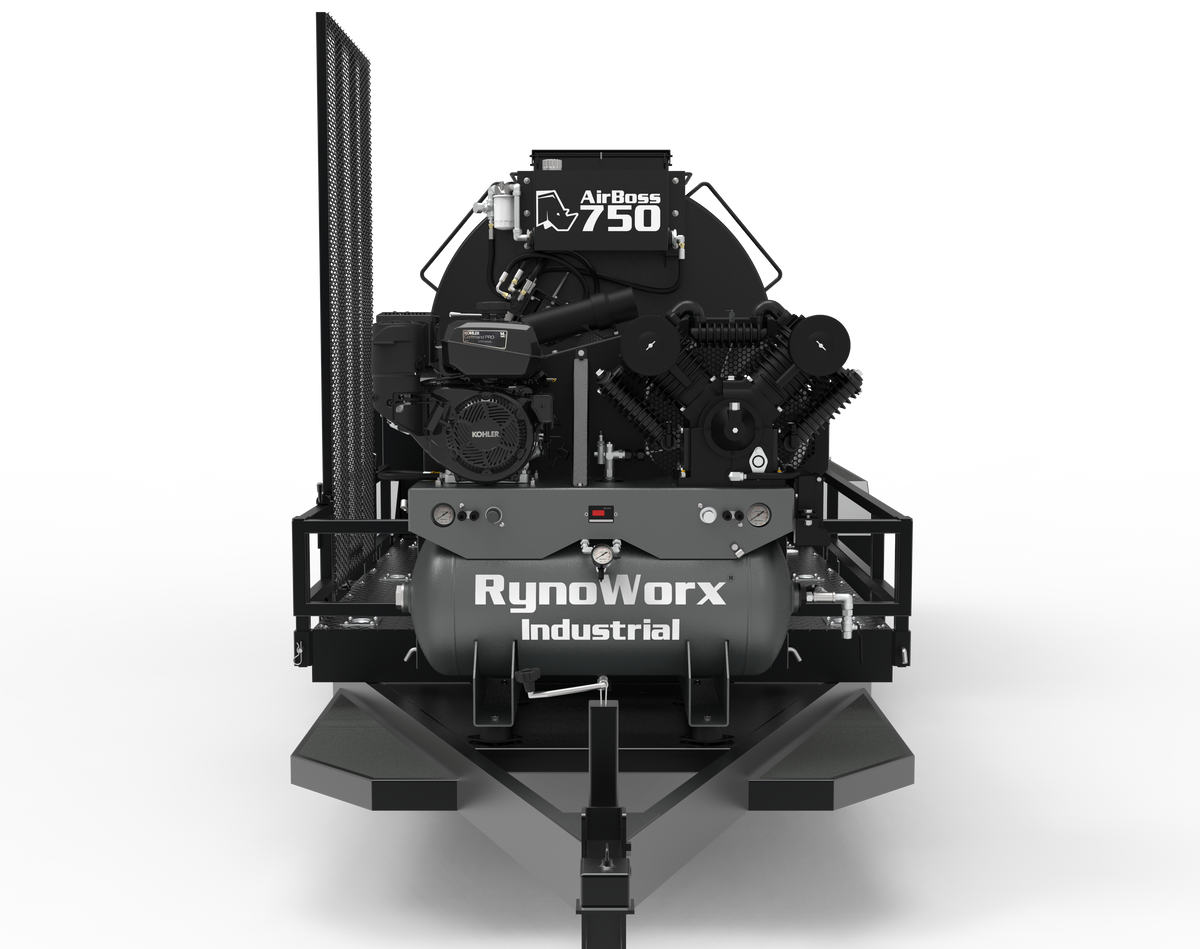

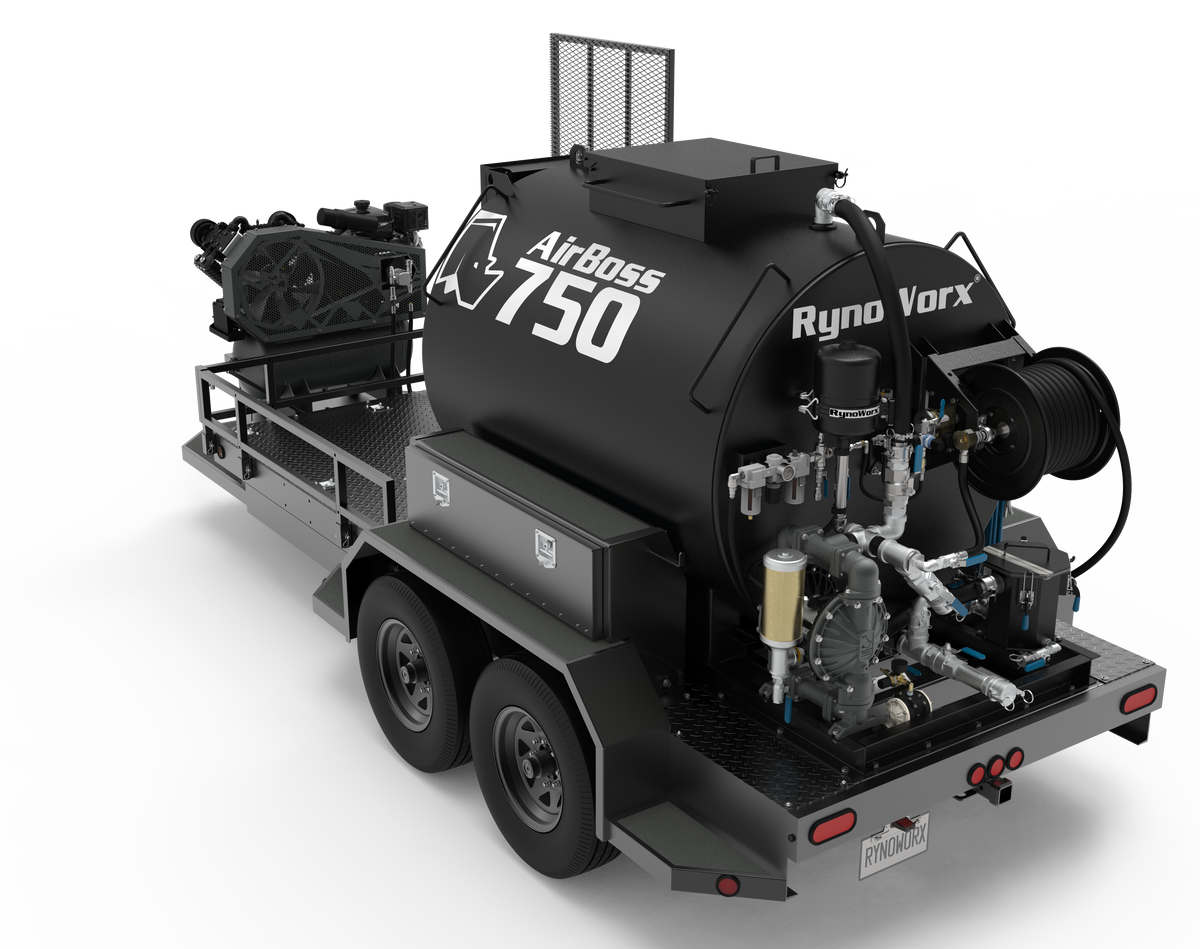

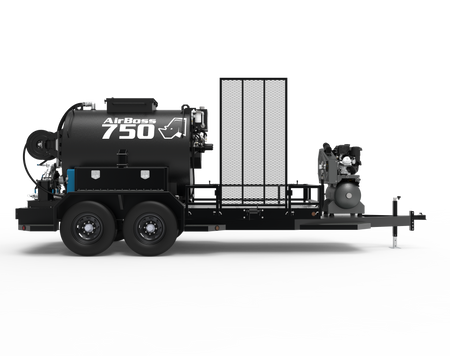

Extended Deck Package C – RA-TSY-0066

Includes:

• 80" × 67" steel checker-plate deck
• Deck rails
• 66" × 38" mesh ramp with spring assist
• 9 recessed deck tie-down points
• 60 gallons of water storage
• Water pump
• 50 ft water spray hose
• Side-mount brush box
• Tool box

Specifications
