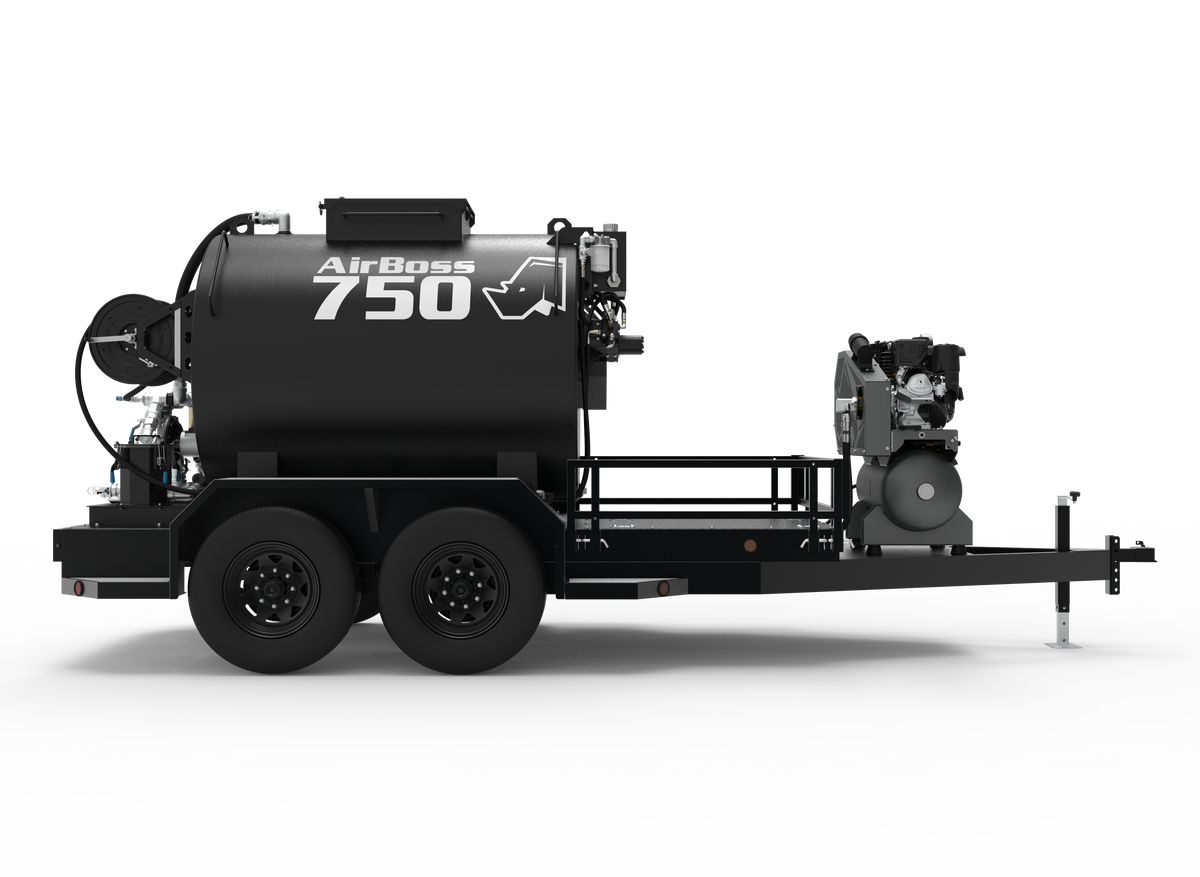

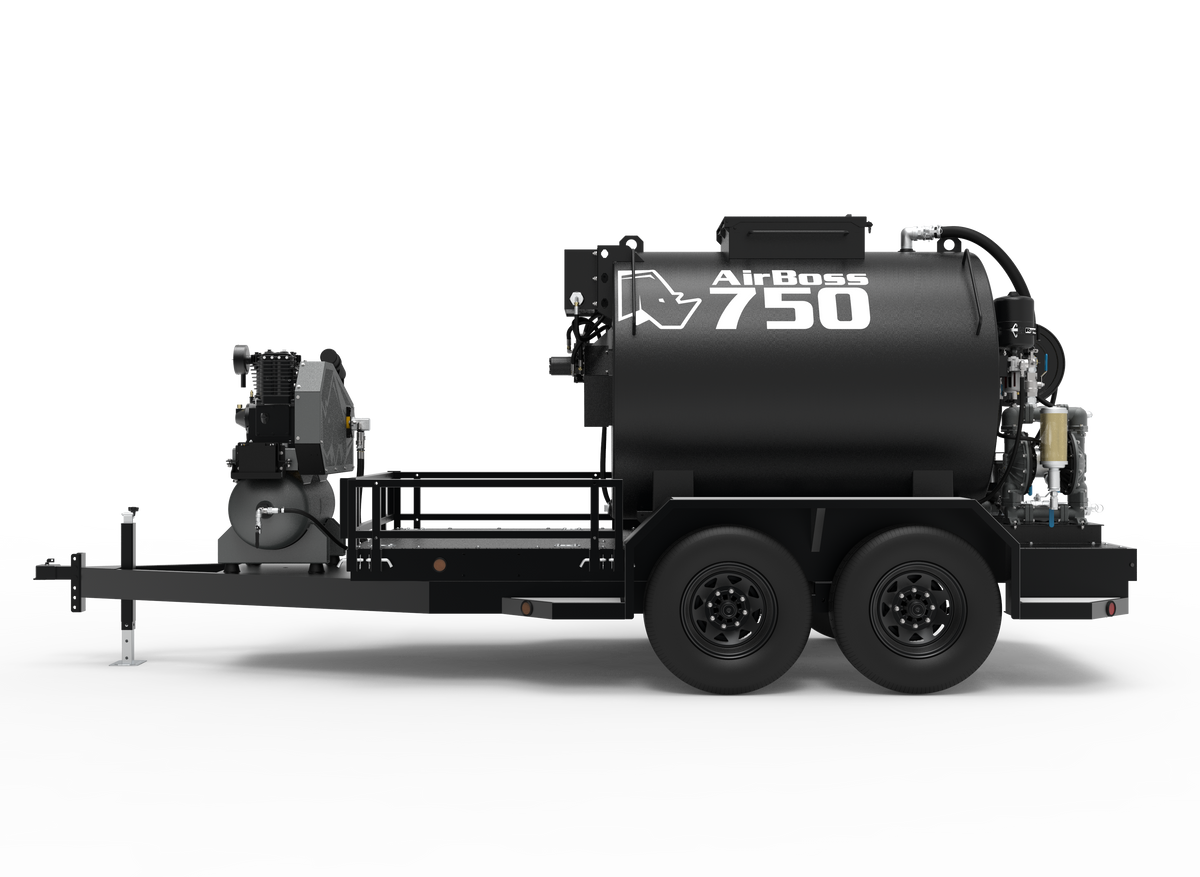

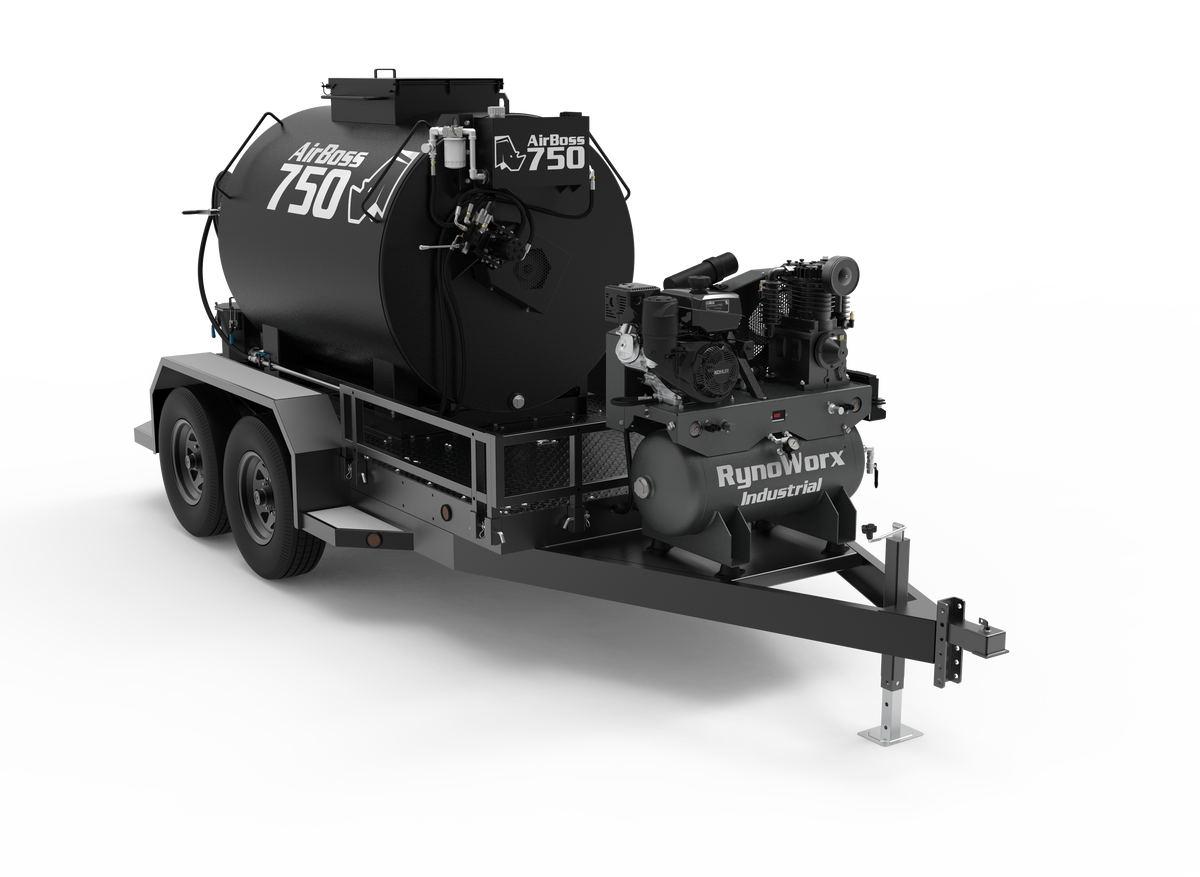

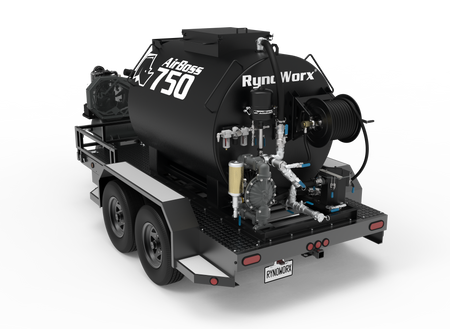

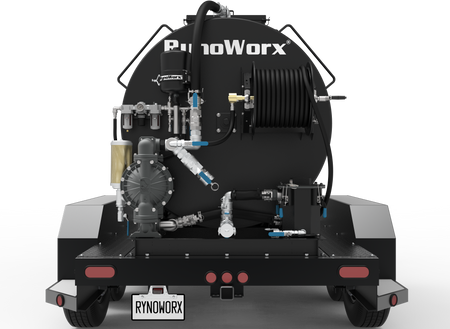

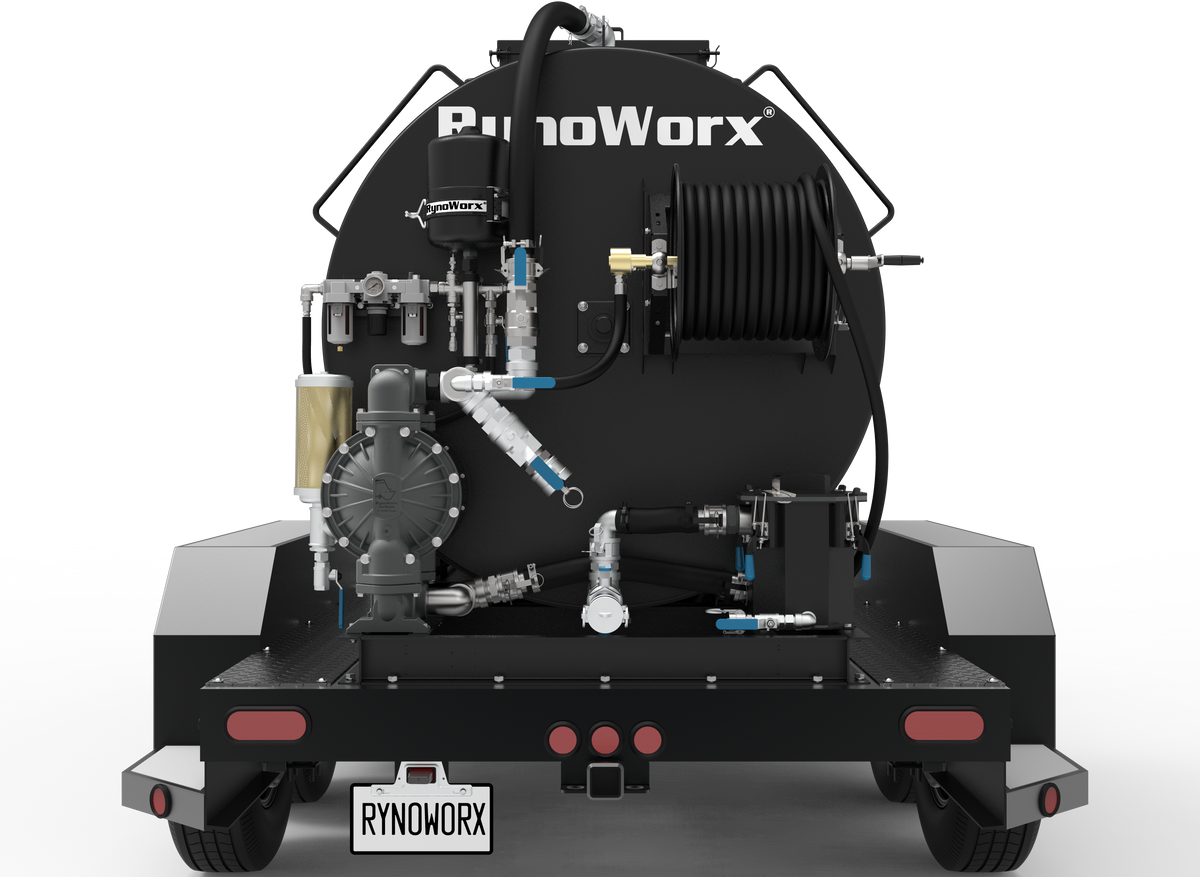

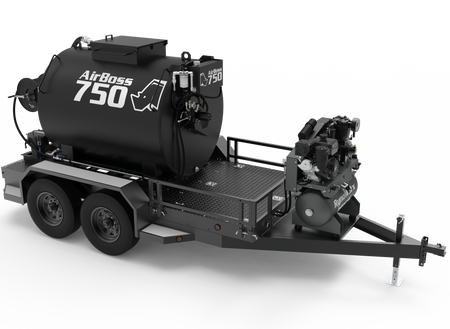

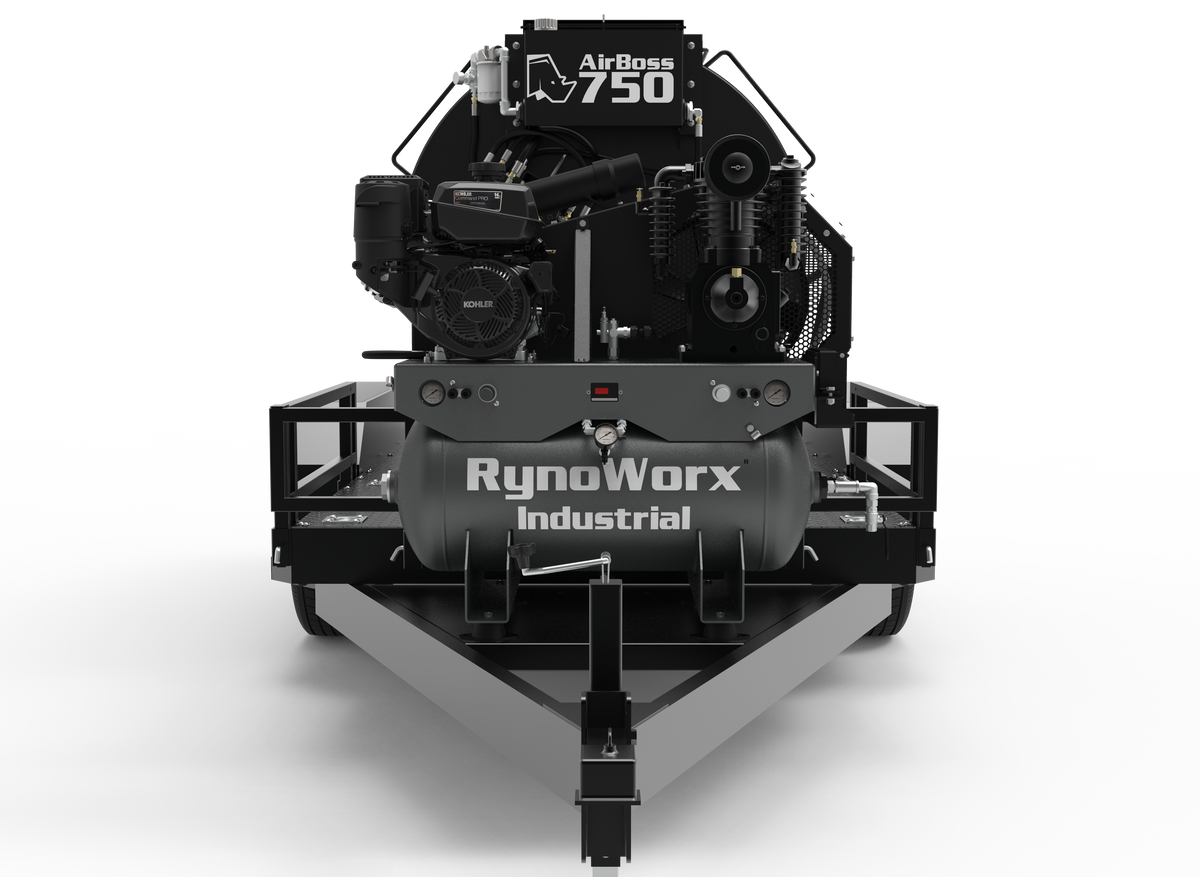

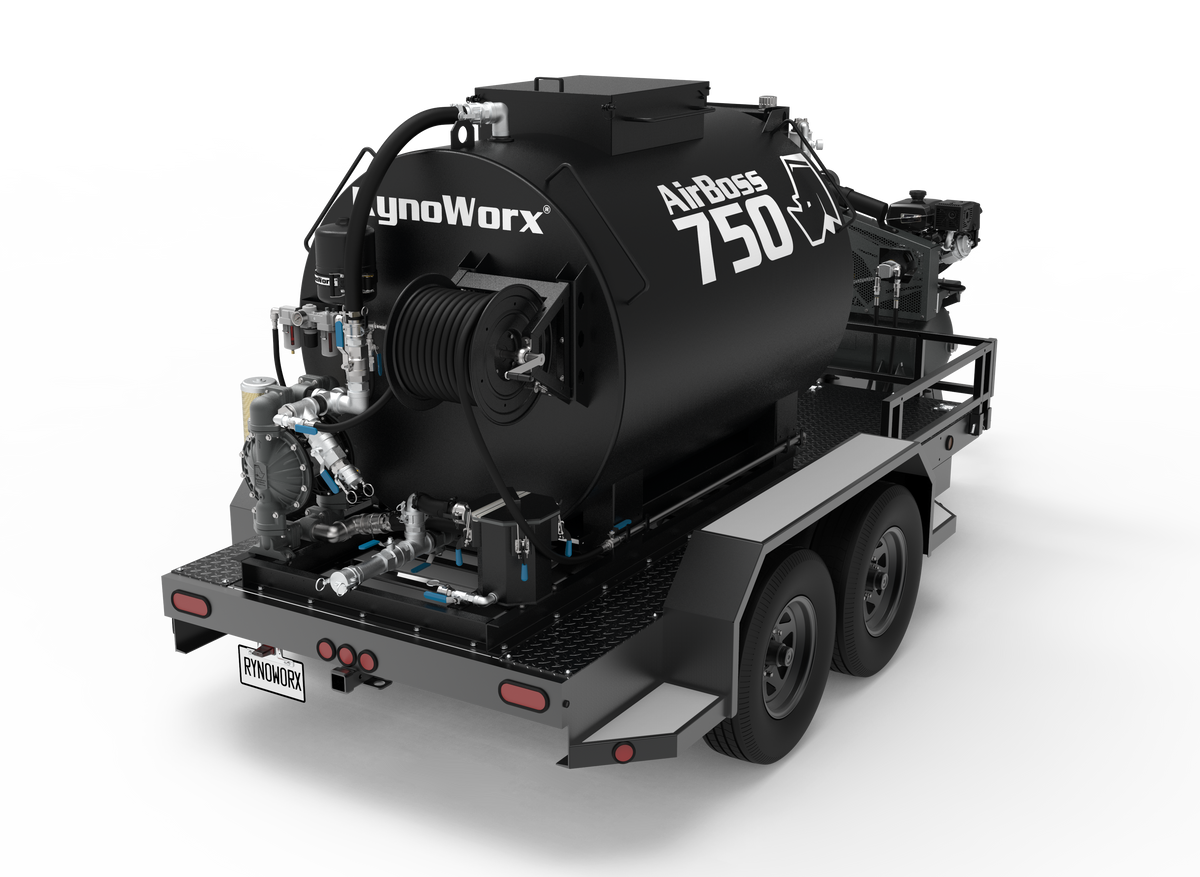

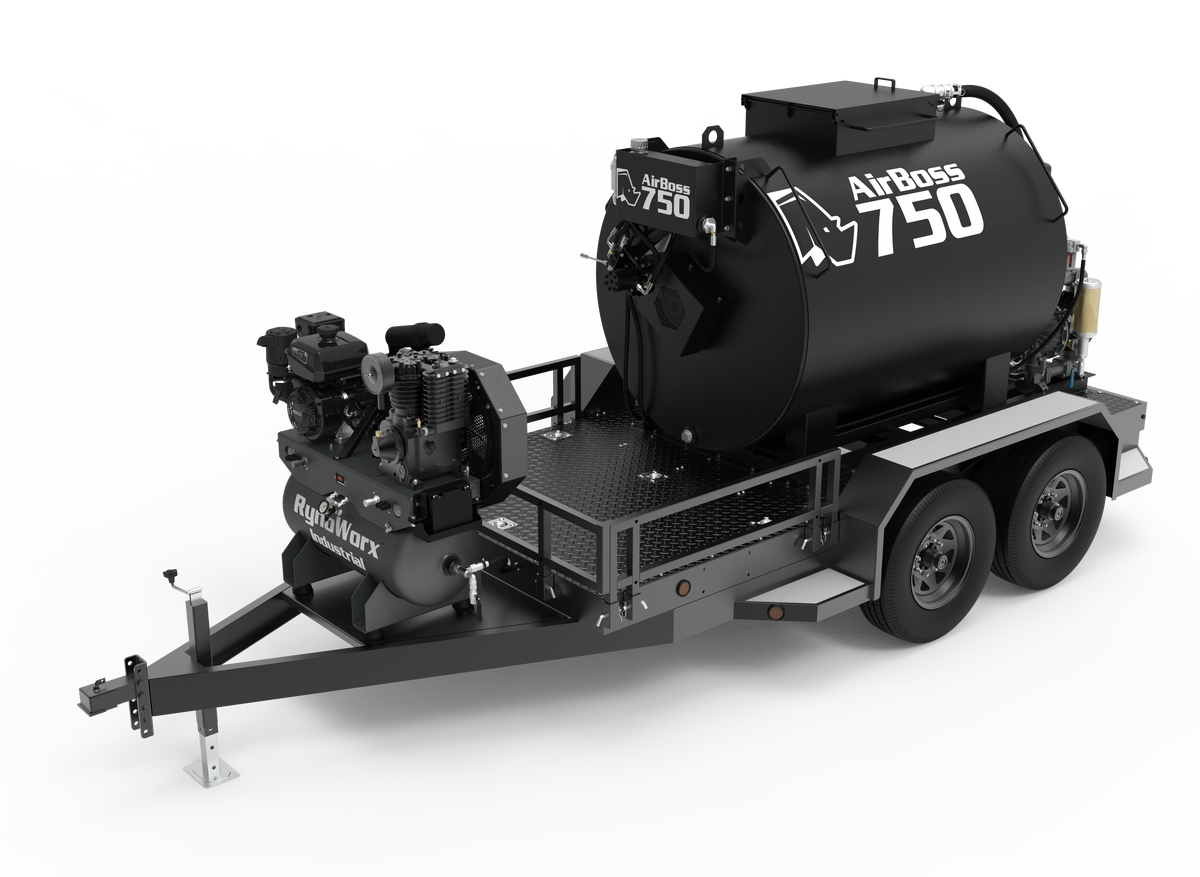

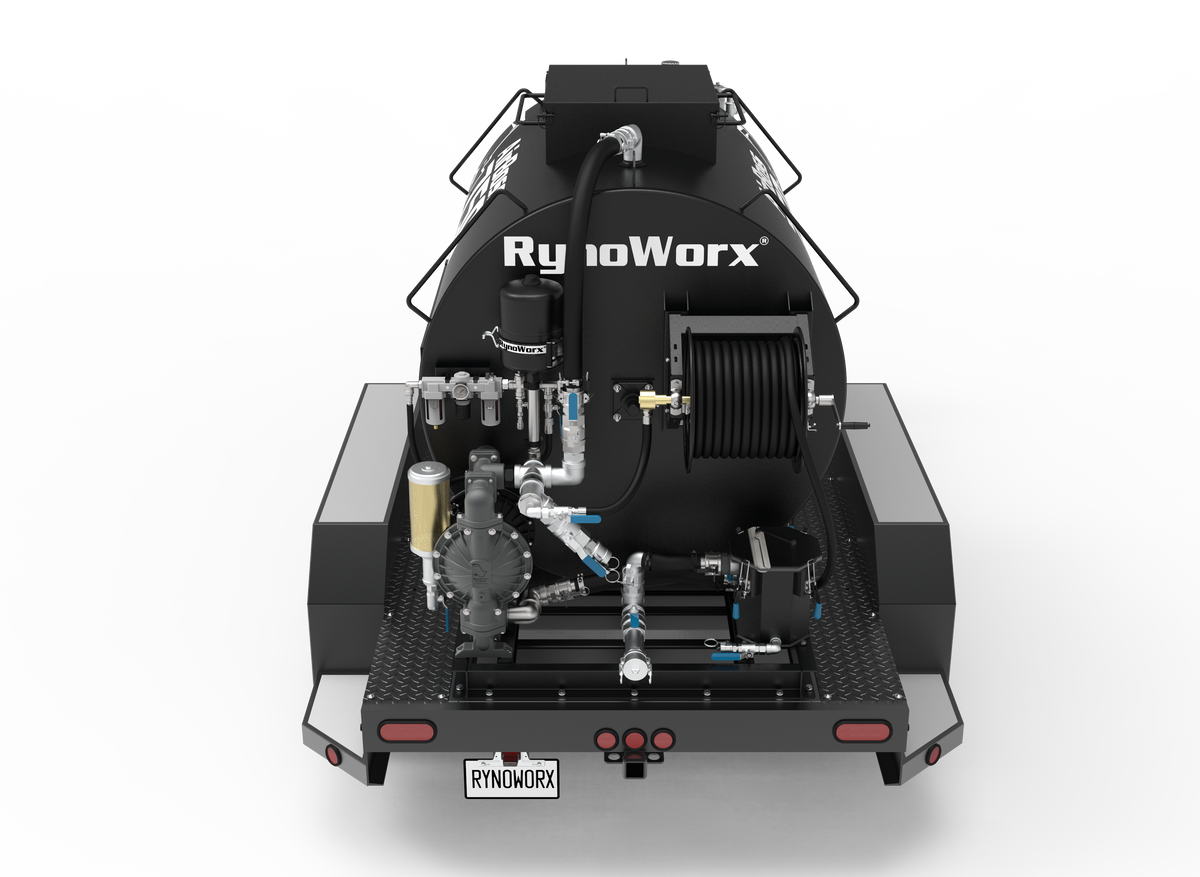

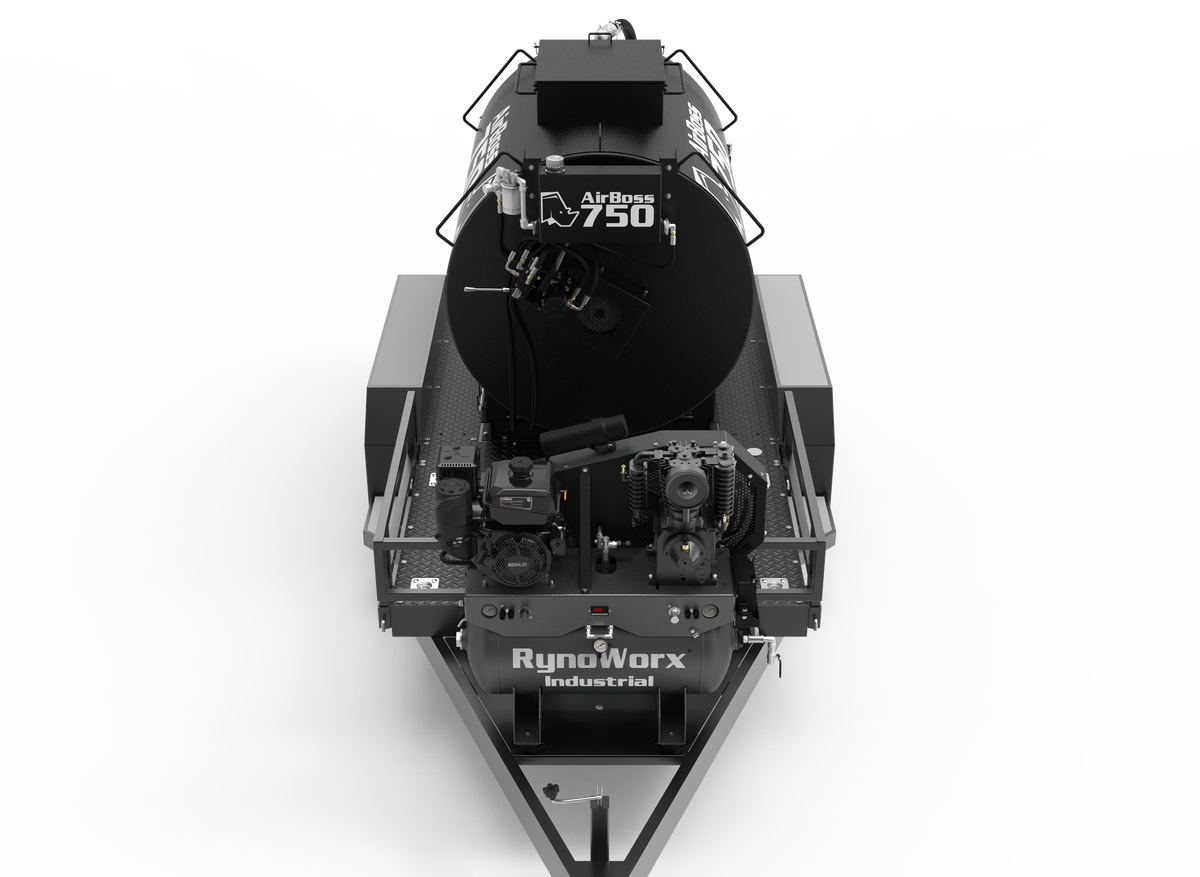

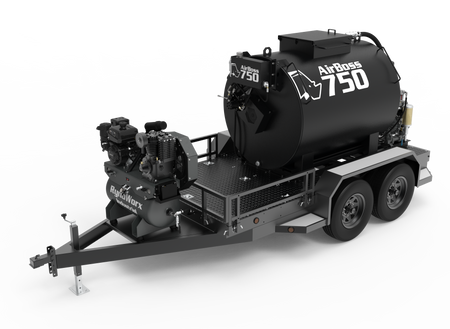

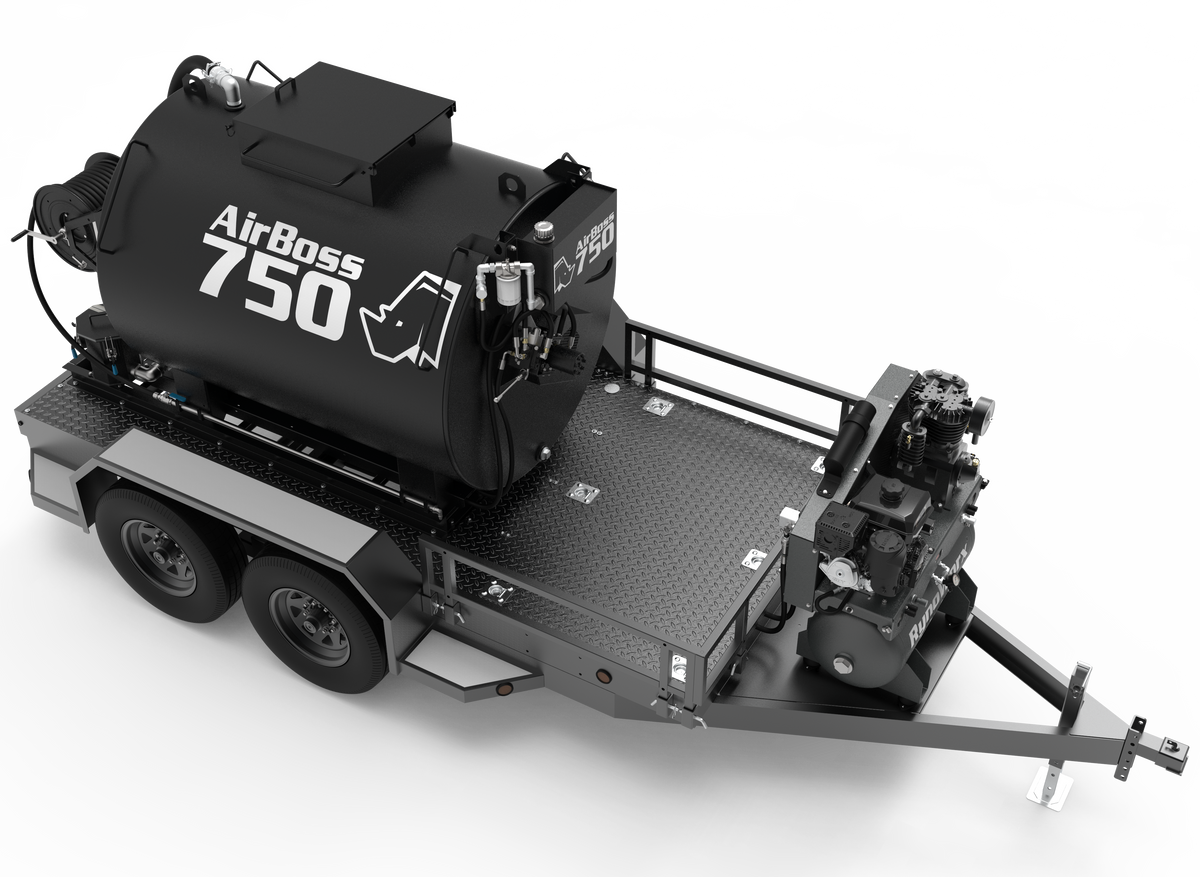

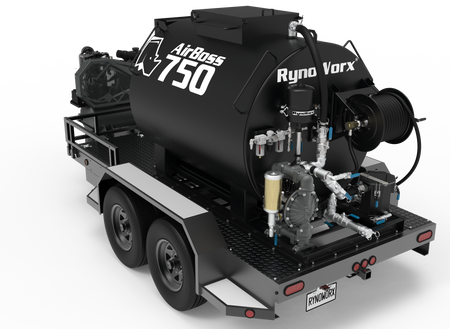

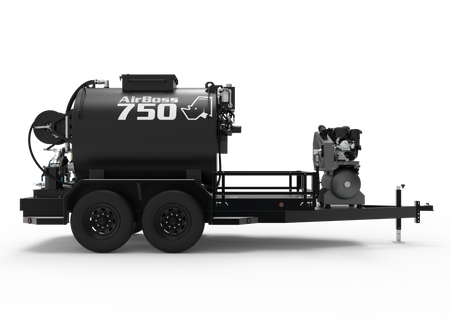

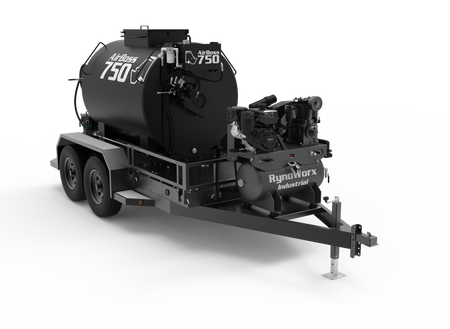

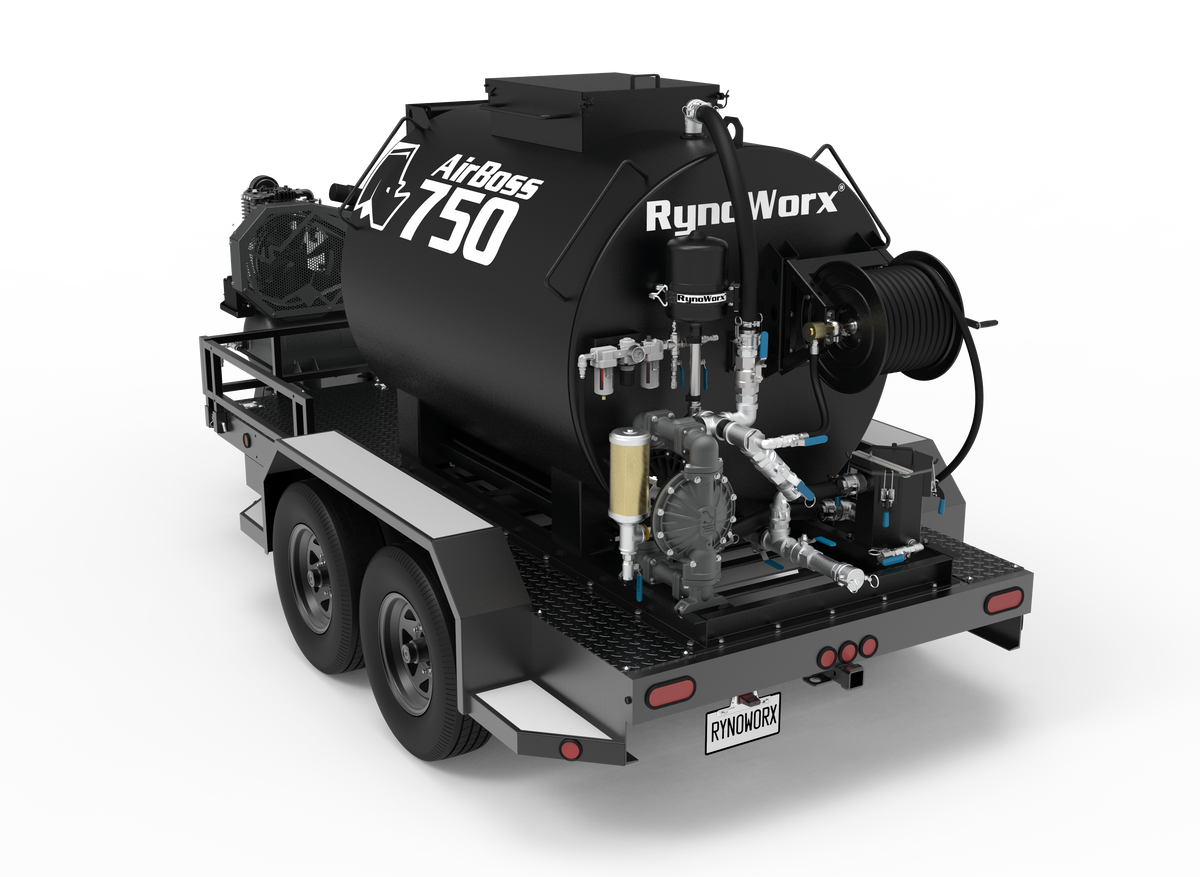

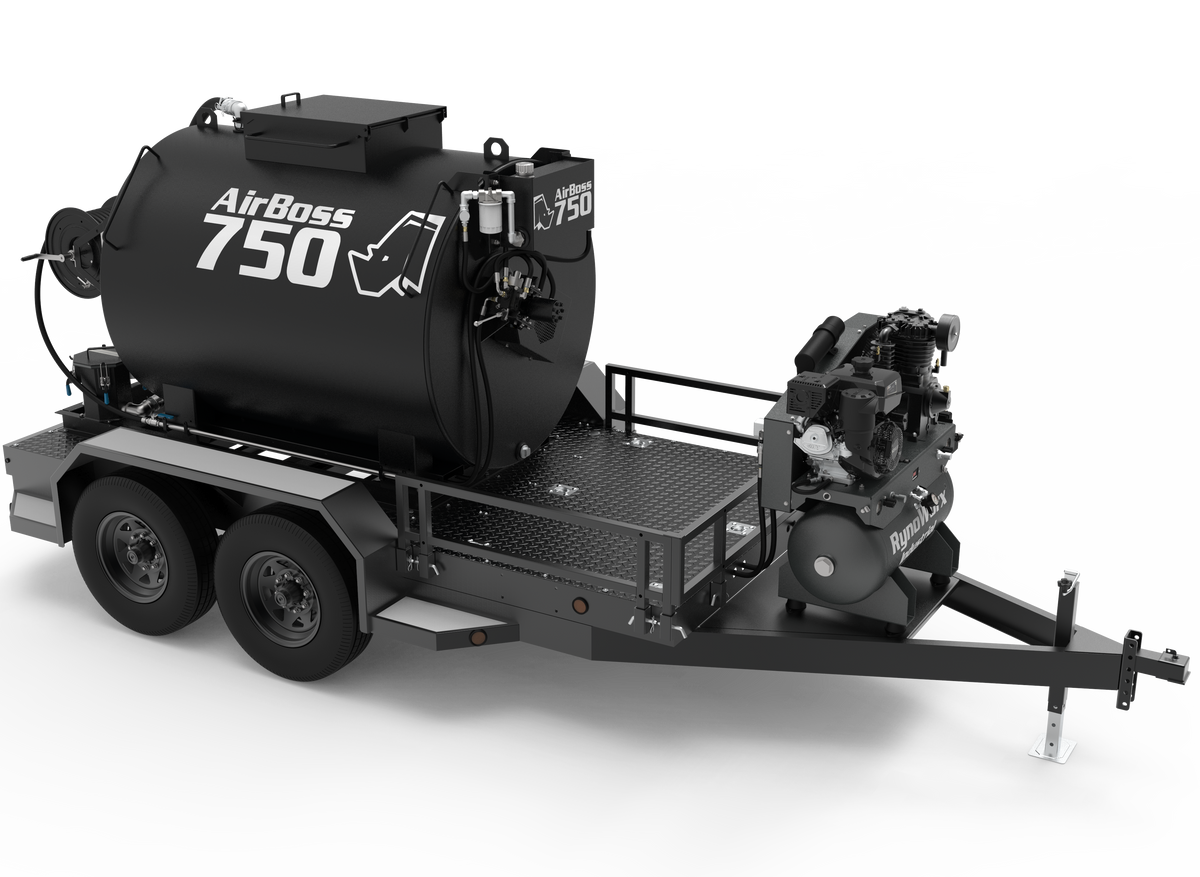

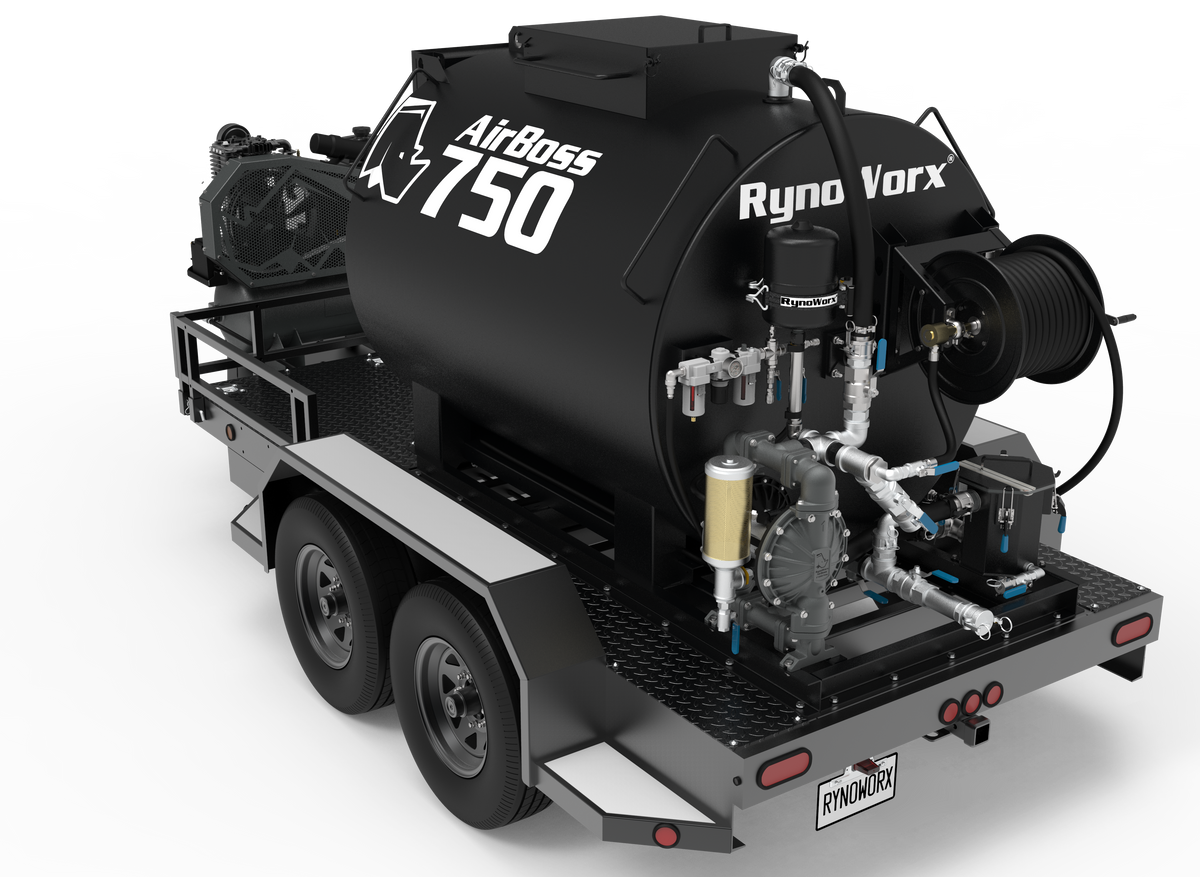

RynoWorx AirBoss750PA Pro 750-Gallon Sealcoating Trailer System

The RynoWorx AirBoss750PA Pro 750-Gallon Sealcoating Trailer System is a high-capacity commercial sealcoating system designed for contractors handling large parking lots, high-volume routes, municipal work, and other demanding pavement-maintenance applications.

The system combines a 750-gallon power-agitated tank, 17 CFM compressor, 14 HP Kohler engine, 2" dual-diaphragm pump, 100 ft sealcoating hose, and Coxreel hand-crank hose reel with a heavy-duty tandem-axle trailer.

Compared with the AirBoss575PA Pro, the 750PA Pro increases material capacity to 750 gallons, helping reduce refilling on larger jobs while retaining the standard 17 CFM Pro compressor package and manual hose reel.

RynoWorx's model-specific documentation identifies the underlying AirBoss750PA Pro with a 750-gallon power-agitated tank, 30-gallon 17 CFM compressor, 14 HP Kohler engine, 2" pump, 100 ft hose, hand-crank hose reel and 50 ft auxiliary air hose.

Five trailer configurations are currently priced, including compact Standard Deck packages and larger Extended Deck packages.

Which model should you choose?

Choose a Standard Deck configuration when sealcoating is the primary job and trailer compactness matters.

Choose an Extended Deck configuration when you want additional space for other pavement-maintenance equipment, materials, and tools.

Features

• 750-Gallon Tank: Provides high material capacity for large commercial jobs and high-volume daily routes.
• Hydraulic Agitation: Continuously mixes sealcoat material while spraying.
• 17 CFM Compressor: Pro configuration designed for reliable commercial operation.
• 30-Gallon Compressor Tank: Provides substantial compressed-air capacity.
• 14 HP Kohler Engine: Powers the AirBoss spray and agitation systems.
• 2" Dual-Diaphragm Pump: Designed for high-volume material transfer and spraying.
• 100 ft Sealcoating Hose: Provides extended reach around large parking lots and pavement areas.
• Coxreel Hand-Crank Hose Reel: Organizes the spray hose during transport, use, and storage.
• 50 ft Auxiliary Air Hose: Adds compressed-air capability for jobsite use.
• 3-Gallon Basket Strainer: Helps filter sealcoat material before it reaches the pump.
• Two Basket-Strainer Filter Sizes: Allows filtration to suit different material conditions.
• Four Spray Tip Sizes: Provides flexibility for different spray applications.
• Tandem-Axle Trailer: Heavy-duty platform suited to the larger 750-gallon system.
• Standard or Extended Deck: Choose between compact sealcoating-focused or larger multi-service configurations.
• Integrated Water Options: Selected packages include water storage, pump, and cleanup hose.
• Equipment Storage Options: Higher configurations include brush and tool storage.

Package Includes

All configurations include the AirBoss750PA Pro spray system:

• 750-gallon power-agitated tank
• 30-gallon, 17 CFM compressor
• 14 HP Kohler engine
• 2" dual-diaphragm pump
• 3-gallon basket strainer
• 2 basket-strainer filter sizes
• 100 ft sealcoating hose
• Coxreel hand-crank hose reel
• 50 ft auxiliary air hose
• 4 spray-tip sizes

Standard Deck Package A – RA-TSY-0055

• Tandem 7K axle trailer
• 55" × 67" steel checker-plate deck
• Deck rails
• 6 recessed deck tie-down points

Standard Deck Package B – RA-TSY-0056

Includes:

• 55" × 67" steel checker-plate deck
• Deck rails
• 66" × 38" mesh loading ramp
• 6 recessed tie-down points
• 30 gallons of water storage
• Water pump
• 50 ft water spray hose

Standard Deck Package C – RA-TSY-0057

Includes:

• 55" × 67" steel checker-plate deck
• Deck rails
• 66" × 38" mesh ramp with spring assist
• 6 recessed tie-down points
• 30 gallons of water storage
• Water pump
• 50 ft water spray hose
• Side-mount brush box
• Tool box

Extended Deck Package A – RA-TSY-0058

Includes:

• Tandem 7K axle trailer
• 80" × 67" steel checker-plate deck
• Deck rails
• 9 recessed deck tie-down points
• 30 gallons of water storage
• Water pump
• 50 ft water spray hose

Extended Deck Package B – RA-TSY-0059

Includes:

• 80" × 67" steel checker-plate deck
• Deck rails
• 66" × 38" mesh loading ramp
• 9 recessed deck tie-down points
• 30 gallons of water storage
• Water pump
• 50 ft water spray hose
• Side-mount brush box
• Tool box
